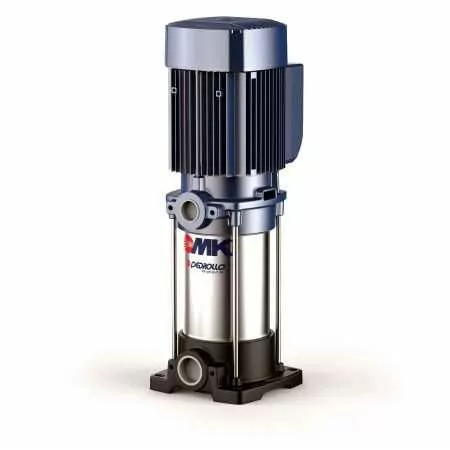

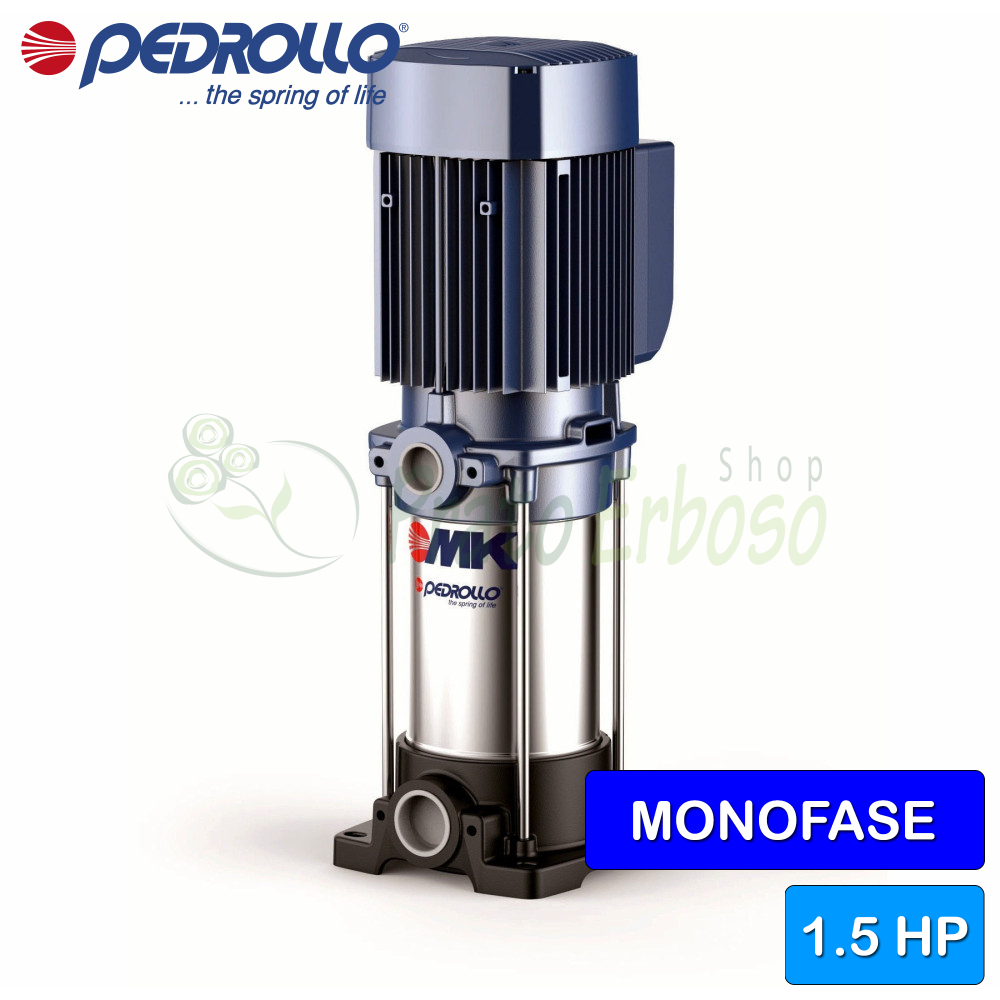

MKm 5/5 - 1.5 HP single-phase vertical multistage electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 71 m. 1.1 Kw (1.5 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The MKm 5/5 multi-impeller centrifugal electric pump from Pedrollo 's MK series is suitable for water supply activities, for the transfer of clean liquids, for the pressurization of domestic, civil and agricultural systems, and for the irrigation of vegetable gardens and gardens.
It can pump clean water and liquids that are chemically non-aggressive for the pump components.
It requires single-phase power and has a horsepower of 1.5 HP. The temperature of the liquid being pumped ranges from -10 degrees Celsius to +60 degrees Celsius.
The flow rate ranges from 20 to 120 metres and the head from 21.5 to 71 litres.
The maximum pressure supported by the pump body is 11 bar .
Data sheet
- Motor connection
- Power (Kw)
- Power (HP)
- Absorption at 230V (A)
- 8.5
- Capacitor
- Suction mouth
- Delivery mouth
- Pump body
- Impeller
- Number of impellers
- Crankshaft
- Check valve
- Degree of protection
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 21.5
- Max. head (m.)
- 71
- Jobs
- , , , ,
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 50.4
- Width (cm)
- 18.5
- Depth (cm)
- 22.3
- Weight (Kg)
- 19.9
- Warranty (years)
MKm models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the MK series
Bearings
| Pump side motor bearing | 6304 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.1 - Suction Body | Cast iron GJL 200 EN 1561 |
| 1.2 - Pressing Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | PTFE |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
