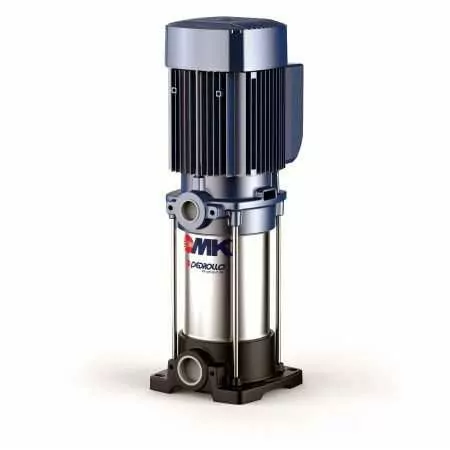

MKm 5/5 - 1.5 HP single-phase vertical multistage electric pump

Name: MKm 5/5 - 1.5 HP single-phase vertical multistage electric pump
Brand: Pedrollo
SKU: MKm 5/5
Price: 452.16 EUR
Availability: InStock

Flow rate up to 120 l/min (7.2 m³/h). Head up to 71 m. Motor 1.1 Kw (1.5 HP).

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The high efficiency and adaptability to the most varied applications, even anomalous ones, make it an ideal choice in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with autoclave tanks, increasing the pressure in the network.

They are recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 8.5
Capacitor: 25 µF 450 VL
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 5
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 120
Min. head (m.): 21.5
Max. head (m.): 71
Jobs: water supply, pressurization systems, irrigation, washing systems, fire prevention systems
Max. liquid temperature (°C): +40°C
Height (cm): 50.4
Width (cm): 18.5
Depth (cm): 22.3
Weight (Kg): 19.9
Warranty (years): 2

Attachments

Technical data sheet MK

Models, performance curves and construction features of the Pedrollo MK series pumps.

Download (329.5KB)

MKm models and performance

GUY

single phase

MKm 3/3

MKm 3/5

MKm 3/6

MKm 5/4

MKm 5/5

MKm 5/7

MKm 5/8

MKm 8/4

MKm 8/5

MKm 8/6

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
0.75	1
1.1	1.5
1.5	2
2.2	3
1.1	1.5
1.5/td>	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 80	52.5 ÷ 29
10 ÷ 80	87 ÷ 48
10 ÷ 80	105 ÷ 58
20 ÷ 120	57 ÷ 17
20 ÷ 120	71 ÷ 21.5
20 ÷ 120	99 ÷ 30
20 ÷ 120	114 ÷ 34
40 ÷ 180	56 ÷ 12
40 ÷ 180	70 ÷ 15.5
40 ÷ 180	84 ÷ 18.5

MOUTH
wait.	send.
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8
Q	l/min	0	10	20	40	60	80	100	120	140	160	180
H	meters	52.5	51.5	50	45	38.5	29
		87	85	83	75	64	48
		105	103	100	90	77	58
		57	-	54	50	45	37.5	28.5	17
		71	-	67.5	62.5	56	47	33.5	21.5
		99	-	95	88	78	66	50	30
		114	-	108	100	90	75	57	34
		56	-	-	53.5	51	47.5	43	37.5	30.5	22.1	12
		70	-	-	67	64	59.5	54	47	38	27.5	15.5
		84	-	-	80	77	72	64.5	56	45.5	33	18.5

Construction data of the MK series

Bearings

Pump side motor bearing	6304 ZZ
Opposite side engine bearing	6204 ZZ

Tree holding

Type of seal	Single Mechanical Seal
Shrinkage DN1=450 DN2=350	FN-18
LP diameter	18
LP fixed ring	Graphite
LP rotating ring	Ceramic
LP elastomer	NBR

Materials

1.1 - Suction Body	Cast iron GJL 200 EN 1561
1.2 - Pressing Body	Cast iron GJL 200 EN 1561
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.2 - Wear ring	PTFE
5.3 - Diaphragm/Diffuser Cover	Stainless steel EN 1.4301 (AISI 304)
6.0 - Motor holder	EN-AB 46100 aluminium
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
