NGA 2B - 0.75 HP three-phase open impeller centrifugal electric pump
Flow rate up to 450 l/min (27 m³/h). Head up to 9.5 m. 0.55 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October

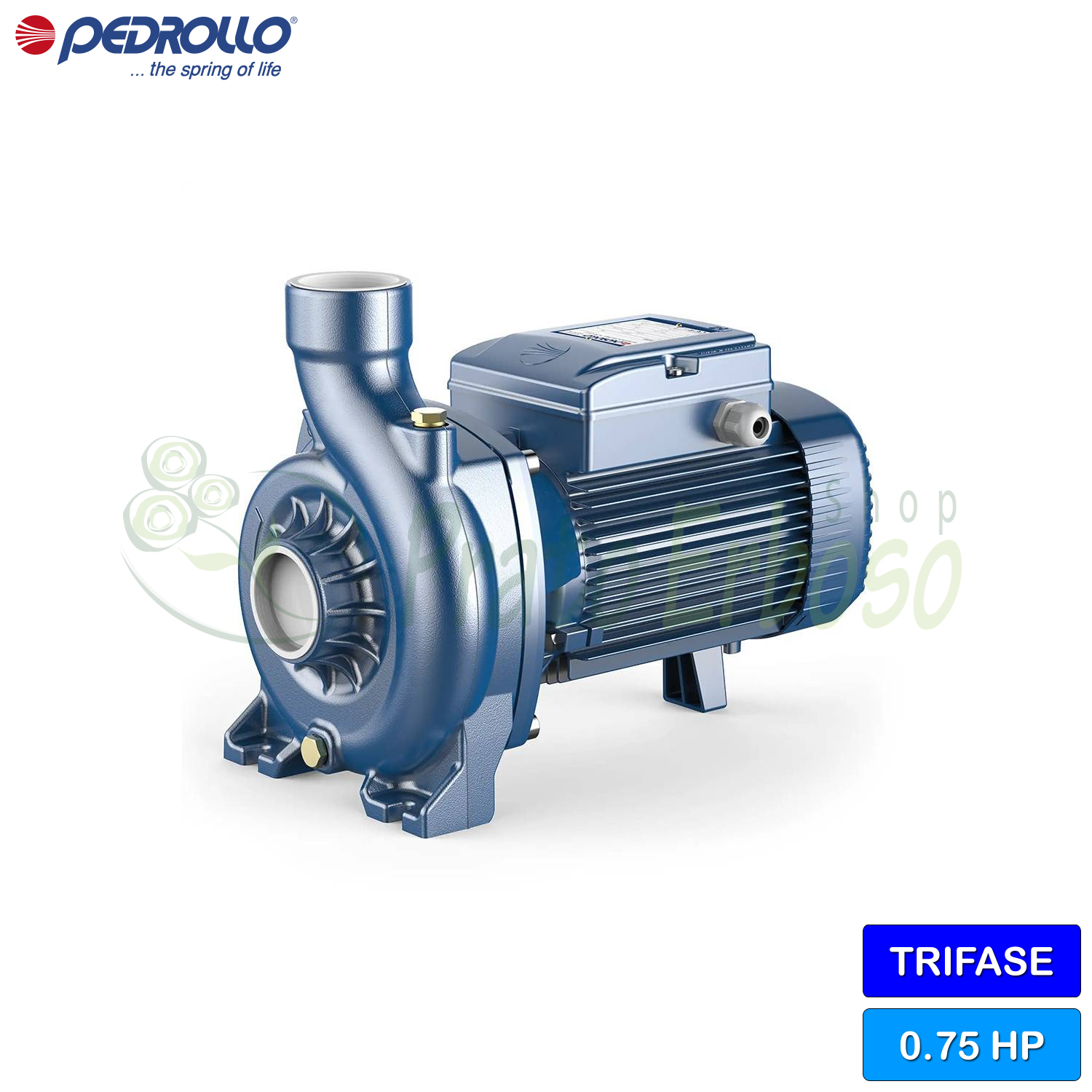

The Pedrollo NGA 2B centrifugal electric pump with open impeller is recommended for activities such as transferring water from canals, rivers, tanks and basins.
Pedrollo designed this pump with an open impeller, making it suitable for pumping relatively contaminated fluids without the risk of clogging the impeller. It allows the passage of solids up to 12 millimeters.
The NGA 2B is a robust and solid electric pump. The use of cast iron and stainless steel ensures its longevity.
It has a flow rate ranging from 50 to 450 liters and a reach of 4 to 9.5 meters. The pump body supports a maximum working pressure of 6 bar .
- Jobs
- washing systems, water supply
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 4
- Max. head (m.)
- 9.5
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400 V
- Degree of protection
- IP 44
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, washing systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 4
- Max. head (m.)
- 9.5
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 400 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 2"
- Delivery mouth
- 2"
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
