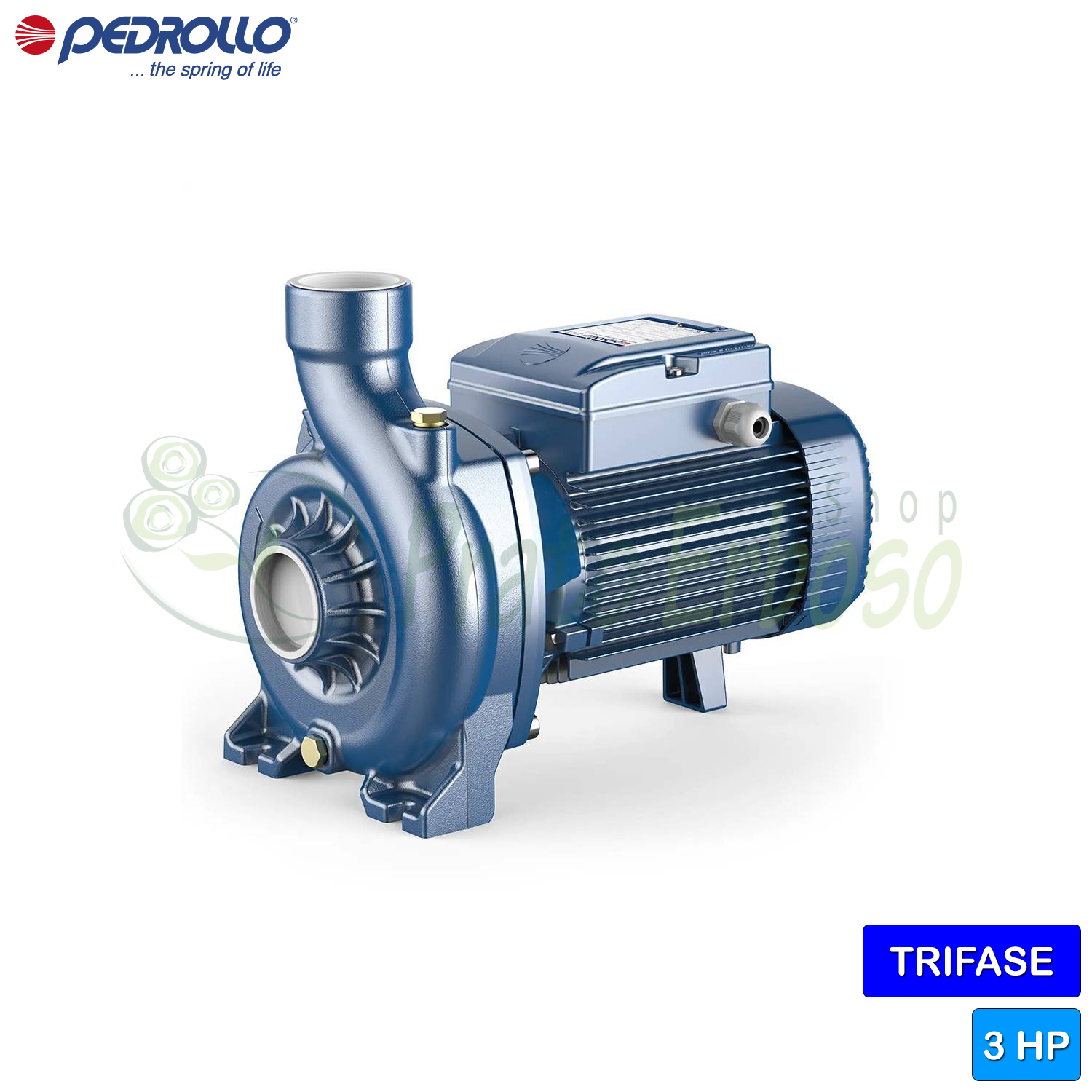

NGA 3A - 3 HP three-phase open impeller centrifugal electric pump
Flow rate up to 900 l/min (54 m³/h). Head up to 19.5 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The Pedrollo NGA 3A centrifugal electric pump has an open impeller for pumping liquids relatively full of impurities.
The open impeller allows for pumping water and less-than-clean liquids without the risk of clogging the impeller. It allows the passage of solids up to 12 millimeters.
The NGA 3A is recommended for agricultural, domestic, and industrial use. It is especially suitable for transferring water from canals, rivers, tanks, and basins.
The use of cast iron and stainless steel in construction makes this pump solid, robust and built to last over time.
- Jobs
- washing systems, water supply
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 900
- Min. head (m.)
- 8.5
- Max. head (m.)
- 19.5
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400 V
- Degree of protection
- IP 44
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, washing systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 900
- Min. head (m.)
- 8.5
- Max. head (m.)
- 19.5
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 400 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 2"
- Delivery mouth
- 2"
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 250 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 250 EN 1561 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
