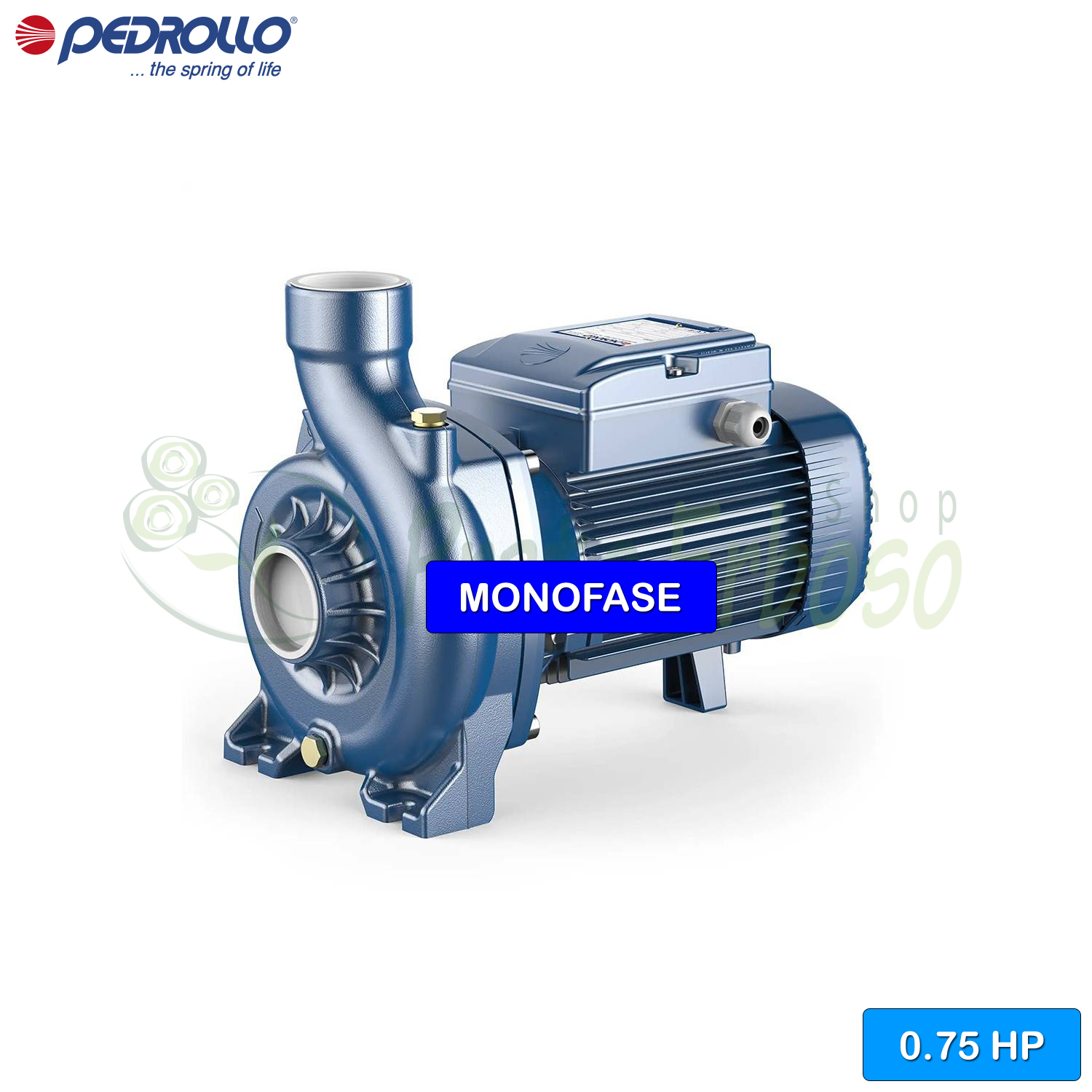

NGAm 1B - 0.75 HP single-phase open impeller centrifugal electric pump

Name: NGAm 1B - 0.75 HP single-phase open impeller centrifugal electric pump
Brand: Pedrollo
SKU: NGAm 1B
Price: 220.06 EUR
Availability: InStock

Flow rate up to 350 l/min (21 m³/h). Head up to 18 m. 0.55 Kw (0.75 HP) motor.

Variants:

Order it before 23:59 and receive it on Thursday 22 October with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 22 October - Friday 23 October
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 22 October - Friday 23 October
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 22 October

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo NGAm 1B centrifugal electric pump is recommended for use in the agricultural, domestic and industrial sectors.

Pedrollo designed this pump with an open impeller, allowing it to pump relatively heavy liquids without clogging the impeller. It allows solids up to 12 millimeters in diameter to pass through.

The NGAM 1B, due to its open impeller design, is suitable for applications such as transfers from canals, rivers, tanks and basins.

It has a flow rate ranging from 40 to 350 liters and a reach of 5 to 18 meters. The pump body supports a maximum working pressure of 6 bar .

Data sheet

Jobs: water supply, washing systems
Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.3
Capacitor: 16 µF 450 VL
Pump body: Cast iron
Impeller: AISI 316 Stainless Steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 350
Min. head (m.): 5
Max. head (m.): 18
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Degree of protection: IP 44
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Height (cm): 22.7
Width (cm): 29.7
Depth (cm): 19
Weight (Kg): 12.4
Warranty (years): 2

Attachments

NGA data sheet

Construction and operating characteristics. Working curves and limits of use of Pedrollo NGA series pumps.

Download (478.7KB)

Data sheet

Use and formulation of products

Jobs: water supply, washing systems

Engine and mechanical performance

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.3
Capacitor: 16 µF 450 VL

Pump components and construction

Pump body: Cast iron
Impeller: AISI 316 Stainless Steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No

Hydraulic performance and filtration

Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 350
Min. head (m.): 5
Max. head (m.): 18

Liquids and pumping conditions

Max. liquid temperature (°C): +90°C

Power supply and electrical parameters

Motor voltage: 230 V

Safety and protection

Degree of protection: IP 44

Installation and connections

Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2

Dimensions and weight

Height (cm): 22.7
Width (cm): 29.7
Depth (cm): 19
Weight (Kg): 12.4

Packaging, maintenance, and warranty

Warranty (years): 2

NGAm 1 models and performance

GUY

single phase

NGAm 1B

NGAm 1A

POWER
KW	HP
0.55	0.75
0.75	1

PERFORMANCE
Q litres/min	H meters
50 ÷ 350	18 ÷ 5
50 ÷ 400	20.5 ÷ 5

MOUTH
wait.	send.
1 1/2"	1 1/2"

Q	m³/hour	0	3	6	9	12	15	18	21	24
Q	l/min	0	50	100	150	200	250	300	350	400
H	meters	18	17.4	16.4	15.2	13.5	11.3	8.7	5
H	meters	20.5	20	19.3	18.1	16.6	14.7	12.1	9	5

Construction data of the NGA 1B-1A

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-14
LP diameter	14
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	EN 14401 stainless steel (AISI 316)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
