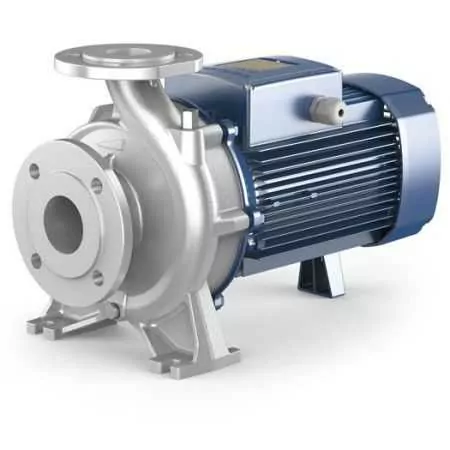

F 50/160C-I - 5.5 HP three-phase stainless steel monobloc electric pump

Name: F 50/160C-I - 5.5 HP three-phase stainless steel monobloc electric pump
Brand: Pedrollo
SKU: F 50/160C-I
Price: 2374 EUR
Availability: InStock

Flow rate up to 1100 l/min (29 m³/h). Head up to 27 m. 4 Kw (5.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

They are recommended for pumping clean, aggressive liquids that are chemically compatible with the materials from which the pump is made.

Used for: water supply, washing systems, pressurization, fire-fighting systems, irrigation, industry, water circulation in air conditioning systems, agriculture.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 4
Power (HP): 5.5
Current consumption at 400V (A): 9.1
Pump body: AISI 316L stainless steel
Impeller: AISI 316L stainless steel
Crankshaft: AISI 316 stainless steel
Minimum flow rate (l./min.): 300
Max. flow rate (l./min.): 1000
Min. head (m.): 16
Max. head (m.): 27
Jobs: irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems, pressurization systems, water supply
Max. liquid temperature (°C): 90
Height (cm): 34
Width (cm): 48.9
Weight (Kg): 50.2
Warranty (years): 2

Attachments

F-INOX technical data sheet

Characteristics, performance, operating limits and working curves of the standardized centrifugal pumps of the F-INOX series by Pedrollo .

Download (263.63KB)

Models and performances F 50/160-I

GUY

Three-phase

F 50/160C-I

F 50/160B-I

F 50/160A-I

POWER
KW	HP
4	5.5
5.5	7.5
7.5	10

PERFORMANCE
Q litres/min	H meters
300 ÷ 1000	27 ÷ 16
300 ÷ 1100	32 ÷ 21
300 ÷ 1100	37 ÷ 27

MOUTH
wait.	send.
DN 65	DN 50

Q	m³/hour	0	18	24	30	36	42	48	54	60	66
Q	l/min	0	300	400	500	600	700	800	900	1000	1100
H	meters	27	27	26.5	25	24.5	23	20	18.5	16
		33	32/td>	31.7	31	30	29	27	26	24	21
		38	37	36.8	36.5	36	34	33	32	30	27

Construction data of the F-INOX series

Bearings

Pump side motor bearing	6307 ZZ-C3
Opposite side engine bearing	6206 ZZ-C3

Tree holding

Type of seal	Single Mechanical Seal
Shrinkage DN1=450 DN2=350	FN-24SV
LP diameter	24
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	FKM (Viton)

Materials

1.0 - Pump body	Stainless steel EN 14401 (AISI 316)
2.1 - Seal holder cover	Stainless steel EN 14401 (AISI 316)
3.0 - Impeller	Stainless steel EN 14401 (AISI 316)
4.0 - Pump shaft	Stainless steel EN 1.4404 (AISI 316L)
6.0 - Motor holder	EN-AB 46100 aluminium
6.1 - Engine cover	EN-AB 46100 aluminium
7.0 - Lantern	EN-AB 46100 aluminium

Compare with Similar Products

	F 50/160C-I - 5.5 HP three-phase stainless steel monobloc electric pump This product Flow rate up to 1100 l/min (29 m³/h). Head up to 27 m. 4 Kw (5.5 HP) motor.	F 50/160B-I - 7.5 HP three-phase stainless steel monobloc electric pump Quick View Flow rate up to 1100 l/min (29 m³/h). Head up to 32 m. 5.5 Kw (7.5 HP) motor.	F 50/160A-I - 10 HP three-phase stainless steel monobloc electric pump Quick View Flow rate up to 1100 l/min (29 m³/h). Head up to 37 m. 7.5 Kw (10 HP) motor.
Price	Price €4,316.36 -45% €2,374.00	Price €4,410.30 -45% €2,425.67	Price €4,492.04 -45% €2,470.62
Motor connection	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 4	Power (Kw) 5.5	Power (Kw) 7.5
Power (HP)	Power (HP) 5.5	Power (HP) 7.5	Power (HP) 10
Current consumption at 400V (A)	Current consumption at 400V (A) 9.1	Current consumption at 400V (A) 12.3	Current consumption at 400V (A) 15.5
Pump body	Pump body AISI 316L stainless steel	Pump body AISI 316L stainless steel	Pump body AISI 316L stainless steel
Impeller	Impeller AISI 316L stainless steel	Impeller AISI 316L stainless steel	Impeller AISI 316L stainless steel
Crankshaft	Crankshaft AISI 316 stainless steel	Crankshaft AISI 316 stainless steel	Crankshaft AISI 316 stainless steel
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 300	Minimum flow rate (l./min.) 300	Minimum flow rate (l./min.) 300
Max. flow rate (l./min.)	Max. flow rate (l./min.) 1000	Max. flow rate (l./min.) 1100	Max. flow rate (l./min.) 1100
Min. head (m.)	Min. head (m.) 16	Min. head (m.) 21	Min. head (m.) 27
Max. head (m.)	Max. head (m.) 27	Max. head (m.) 32	Max. head (m.) 37
Jobs	Jobs irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems, pressurization systems, water supply	Jobs irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems, pressurization systems, water supply	Jobs irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems, pressurization systems, water supply
Max. liquid temperature (°C)	Max. liquid temperature (°C) 90	Max. liquid temperature (°C) 90	Max. liquid temperature (°C) 90
Height (cm)	Height (cm) 34	Height (cm) 34	Height (cm) 34
Width (cm)	Width (cm) 48.9	Width (cm) 53.5	Width (cm) 53.5
Weight (Kg)	Weight (Kg) 50.2	Weight (Kg) 54	Weight (Kg) 65.5
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
