-45%

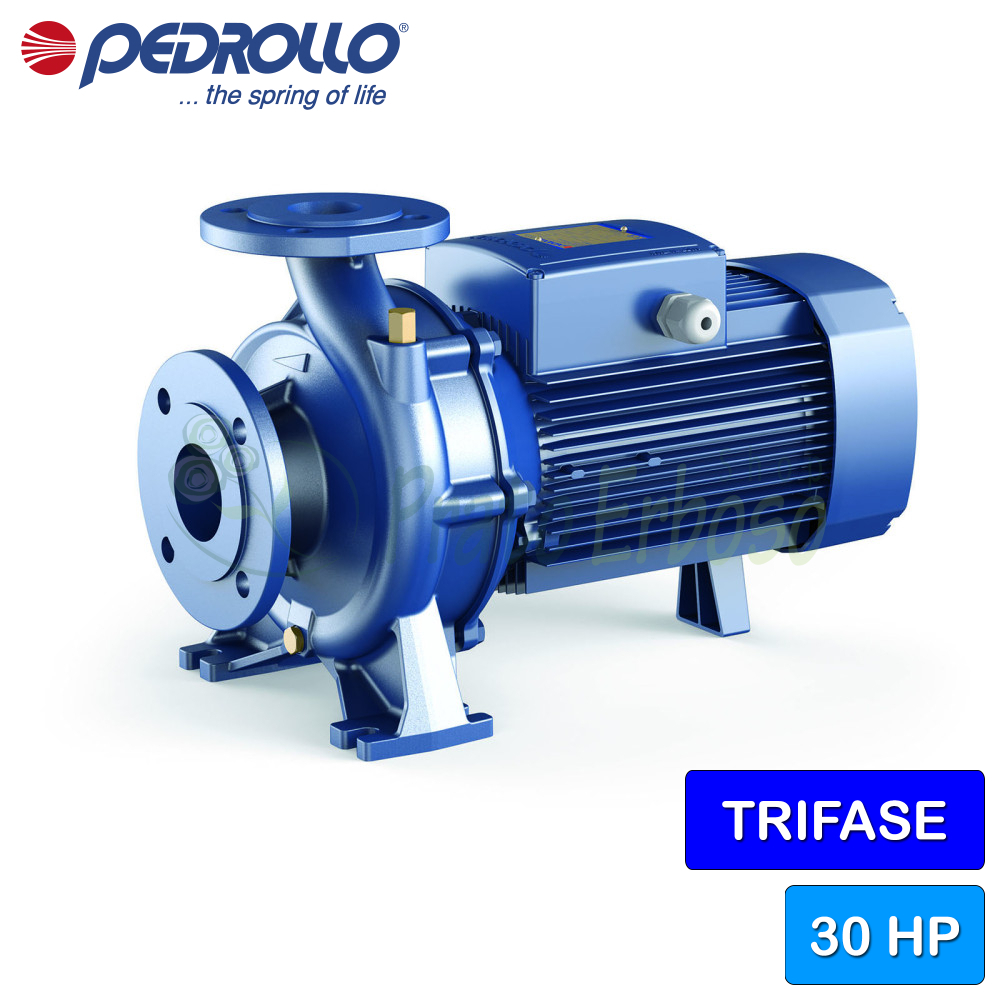

F 65/200AR - 30 HP three-phase standard centrifugal electric pump
Flow rate up to 2600 l/min (156 m³/h). Head up to 57 m. 22 kW (30 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo Fm 65/200AR centrifugal electric pump from the F series is among the best choices when it comes to standardized electric pumps.
Monoblock, it is equipped with flanges built according to the EN733 standard.
It can pump clean water or liquids that are not chemically aggressive to the materials from which the pump is made.
Recommended for installations in the civil and industrial sectors.
The Fm 65/200AR is made using cast iron, brass and AISI 431 stainless steel for a solid and robust result.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 22
- Power (HP)
- 30
- Current consumption at 400V (A)
- 41.0
- Suction mouth
- 3"
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 2600
- Min. head (m.)
- 42
- Max. head (m.)
- 57
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 40.5
- Width (cm)
- 75.1
- Weight (Kg)
- 145.3
- Warranty (years)
- 2
Models and performances F 65/200
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Related Products
Those products may also interest you
From the same brand and category
Compare with Similar Products
 F 65/200AR - 30 HP three-phase standard centrifugal electric pumpThis product Flow rate up to 2600 l/min (156 m³/h). Head up to 57 m. 22 kW (30 HP) motor. |  F 65/200A - 25 HP three-phase standard centrifugal electric pump Flow rate up to 2500 l/min (150 m³/h). Head up to 50 m. 18.5 kW (25 HP) motor. |  F 65/250C - 40 HP three-phase standard centrifugal electric pump Flow rate up to 2350 l/min (141 m³/h). Head up to 76 m. 30 kW (40 HP) motor. |  F 65/250B - 50 HP three-phase standard centrifugal electric pump Flow rate up to 2500 l/min (150 m³/h). Head up to 87 m. 37 kW (50 HP) motor. | |
|---|---|---|---|---|
| Price | Price €3,446.50 -45% €1,895.58 | Price €3,228.12 -45% €1,775.47 | Price €7,366.36 -45% €4,051.50 | Price €7,853.14 -45% €4,319.23 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 22 | Power (Kw) 18.5 | Power (Kw) 30 | Power (Kw) 37 |
| Power (HP) | Power (HP) 30 | Power (HP) 25 | Power (HP) 40 | Power (HP) 50 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 41.0 | Current consumption at 400V (A) 34.0 | Current consumption at 400V (A) 53 | Current consumption at 400V (A) 65 |
| Suction mouth | Suction mouth 3" | Suction mouth 3" | Suction mouth 3" | Suction mouth 3" |
| Delivery mouth | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 400 | Minimum flow rate (l./min.) 400 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 2600 | Max. flow rate (l./min.) 2500 | Max. flow rate (l./min.) 2350 | Max. flow rate (l./min.) 2500 |
| Min. head (m.) | Min. head (m.) 42 | Min. head (m.) 36.5 | Min. head (m.) 53 | Min. head (m.) 62 |
| Max. head (m.) | Max. head (m.) 57 | Max. head (m.) 50 | Max. head (m.) 76 | Max. head (m.) 87 |
| Jobs | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs -- |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Height (cm) | Height (cm) 40.5 | Height (cm) 40.5 | Height (cm) 45.1 | Height (cm) 45.1 |
| Width (cm) | Width (cm) 75.1 | Width (cm) 71.8 | Width (cm) 79.6 | Width (cm) 84.7 |
| Weight (Kg) | Weight (Kg) 145.3 | Weight (Kg) 132.1 | Weight (Kg) 208 | Weight (Kg) 226 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
