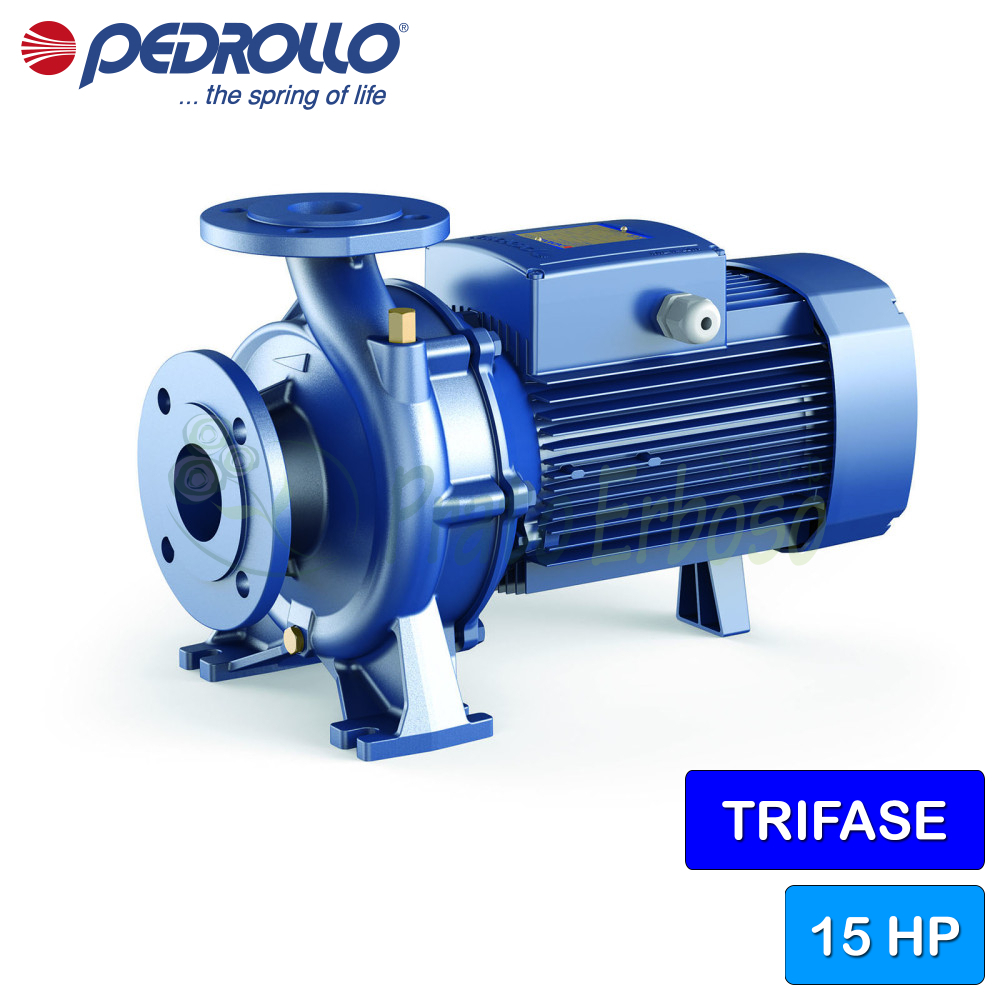

F 80/160D - 15 HP three-phase standard centrifugal electric pump
Flow rate up to 4000 l/min (240 m³/h). Head up to 25 m. 11 kW (15 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 16 March - Tuesday 17 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 19 March - Monday 23 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Monday 16 March |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 19 March - Monday 23 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 16 March
The F 80/160D standardized centrifugal electric pump from Pedrollo 's F series stands out for the flexibility of the activities it allows it to perform.
Adaptable to a wide range of installations and uses.
Recommended for installations in the domestic, civil and agricultural sectors.
Suitable for activities such as water supply, pressurization, irrigation, washing systems and fire-fighting.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Current consumption at 400V (A)
- 22.0
- Suction mouth
- 4"
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 500
- Max. flow rate (l./min.)
- 4000
- Min. head (m.)
- 10
- Max. head (m.)
- 25
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 40.5
- Width (cm)
- 65.2
- Weight (Kg)
- 103.1
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6310 ZZ-C3 |
| Opposite side engine bearing | 6308 ZZ-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-32 NU |
| LP diameter | 32 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
-
- -45%
€1,506.40 tax incl. €2,738.90
