-45%

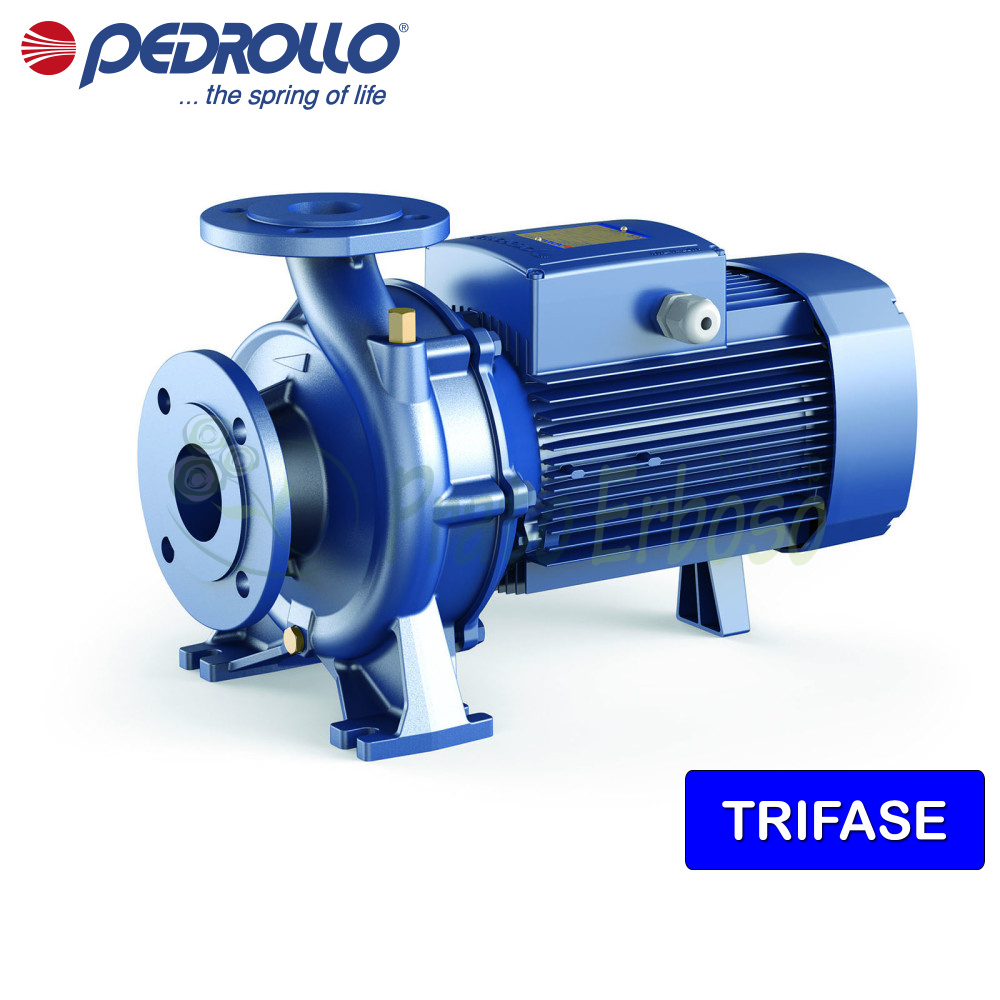

F 80/250B - 60 HP three-phase standard centrifugal electric pump
Flow rate up to 3600 l/min (216 m³/h). Head up to 77 m. 45 kW (60 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The F 80/250B standardized centrifugal electric pump from the F series by Pedrollo is a reliable and robust monoblock electric pump.
Pedrollo has created this electric pump in compliance with EN733 standards.
Replacing flanges and motors has never been easier thanks to compliance with this standardization.
Pedrollo 's use of cast iron, brass and stainless steel in the construction of the F 80/250B makes it solid, robust and resistant to stress and wear.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 45
- Power (HP)
- 60
- Current consumption at 400V (A)
- 79
- Suction mouth
- 4"
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 600
- Max. flow rate (l./min.)
- 3600
- Min. head (m.)
- 54
- Max. head (m.)
- 77
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- 90
- Height (cm)
- 48
- Width (cm)
- 87.2
- Weight (Kg)
- 240
- Warranty (years)
- 2
Models and performances F 80/250
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the F 65/250-80/200-80/250
Bearings
| Pump side motor bearing | 6312 ZZ-C3 |
| Opposite side engine bearing | 6212 ZZ-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-40 NU |
| LP diameter | 40 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
