Fm 32/160C - 2 HP single-phase standard centrifugal electric pump
Flow rate up to 350 l/min (21 m³/h). Head up to 25 m. 1.5 kW (2 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 13 March - Monday 16 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 13 March - Monday 16 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Friday 13 March - Monday 16 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 18 March - Monday 23 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 13 March |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 13 March - Monday 16 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 13 March - Monday 16 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 13 March - Monday 16 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 18 March - Monday 23 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 13 March

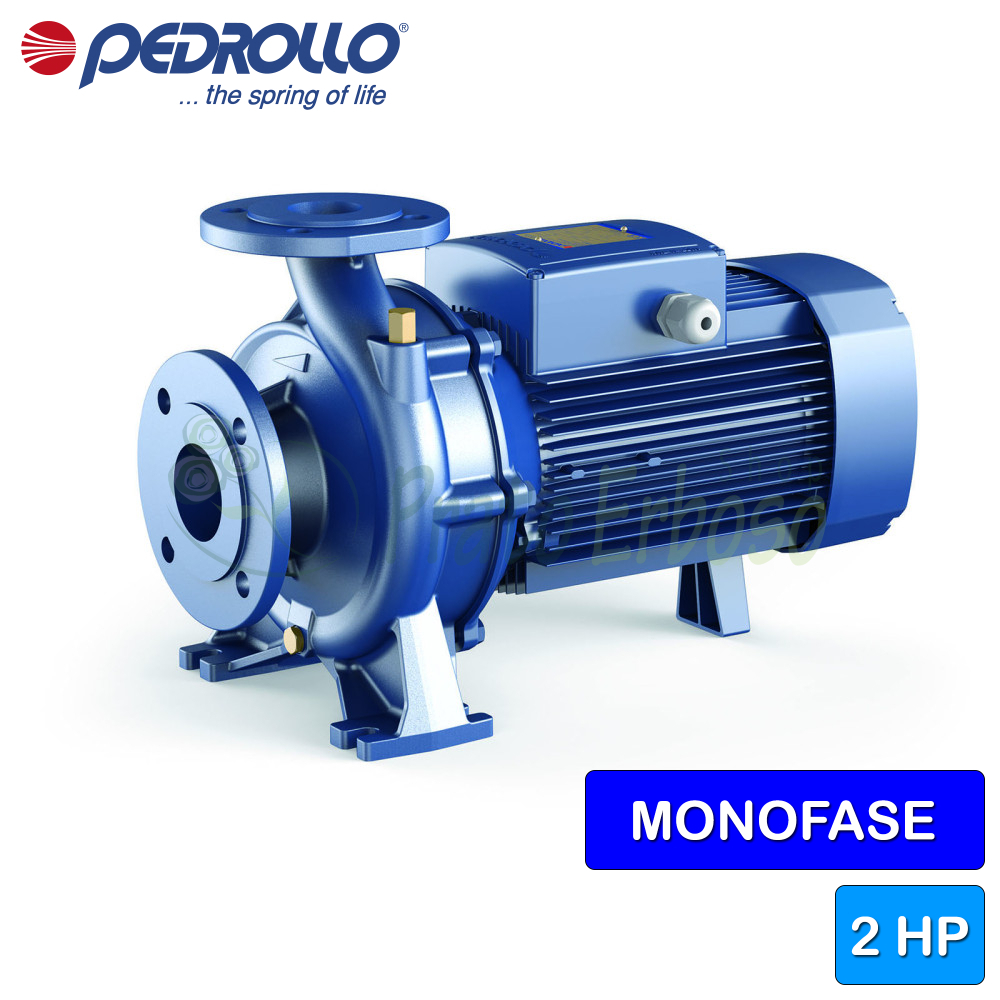

The Pedrollo Fm 32/160C centrifugal electric pump from the F series is among the best choices when it comes to standardized electric pumps.
Monoblock, it is equipped with flanges built according to the EN733 standard.
It can pump clean water or liquids that are not chemically aggressive to the materials from which the pump is made.
Recommended for installations in the civil and industrial sectors.
The Fm 32/160C is made using cast iron, brass and AISI 431 stainless steel for a solid and robust result.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 11
- Capacitor
- 45 µF 450 VL
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/4
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 14
- Max. head (m.)
- 25
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 29.2
- Width (cm)
- 41.9
- Depth (cm)
- 24.5
- Weight (Kg)
- 32.6
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6206 ZZ-C3 |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-20 |
| LP diameter | 20 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
