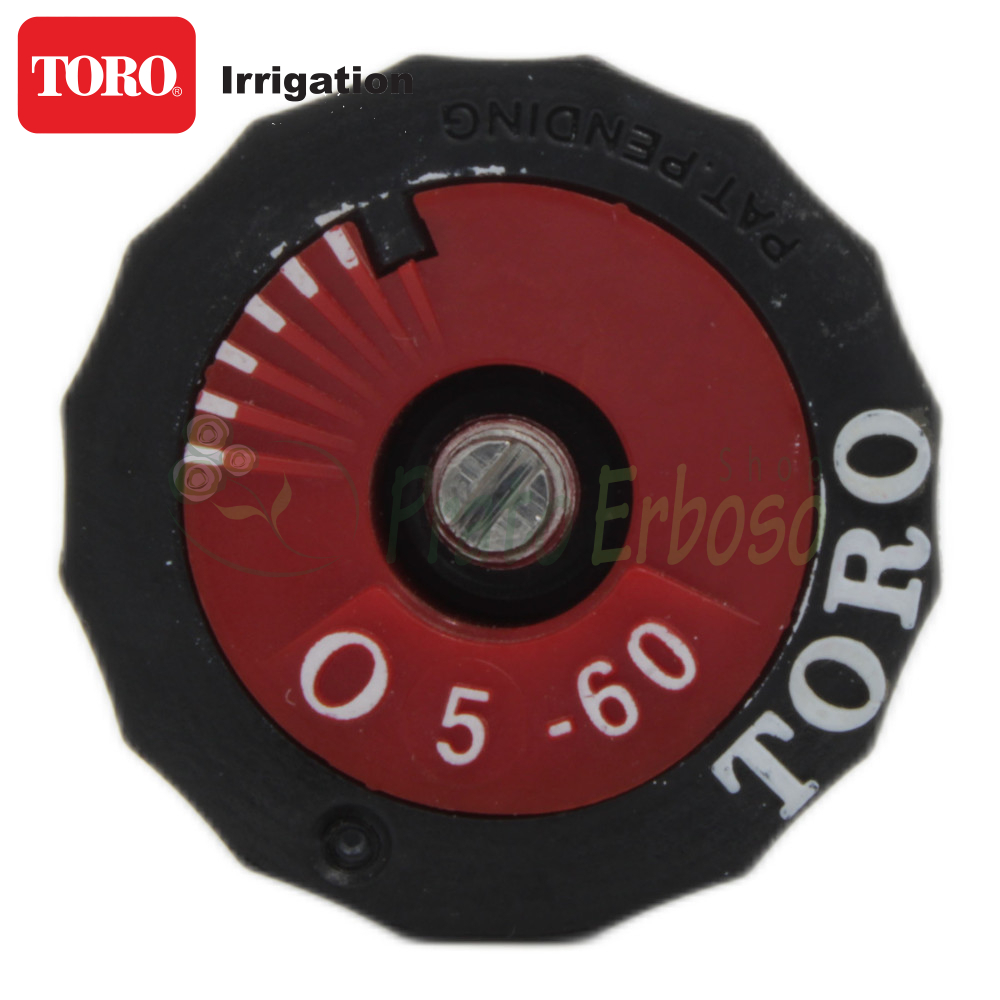

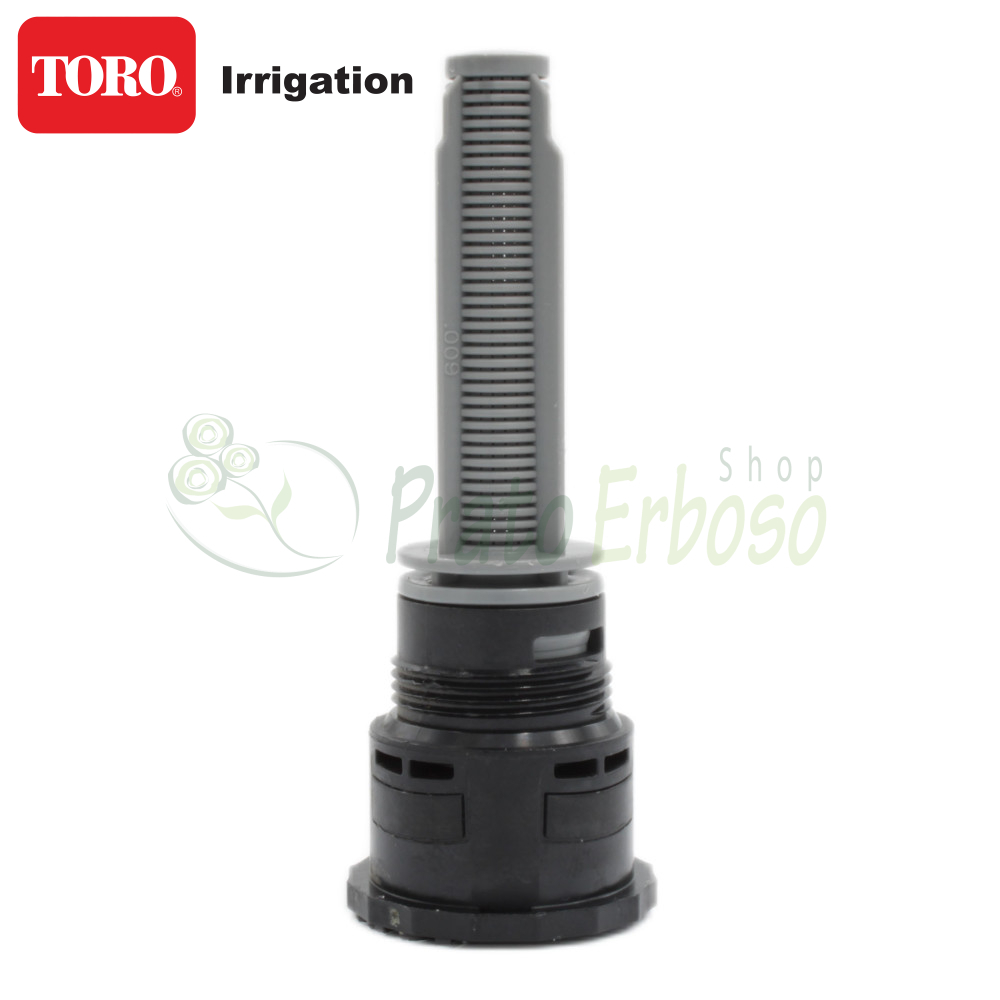

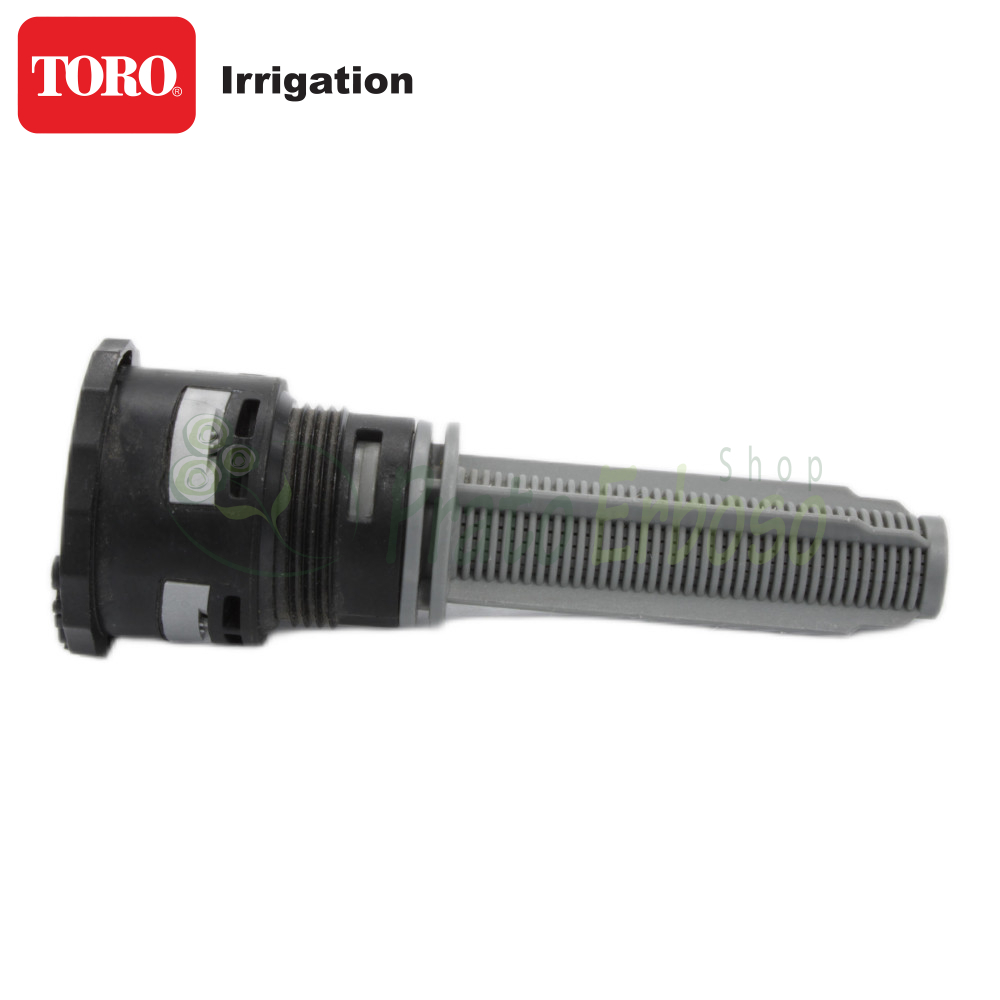

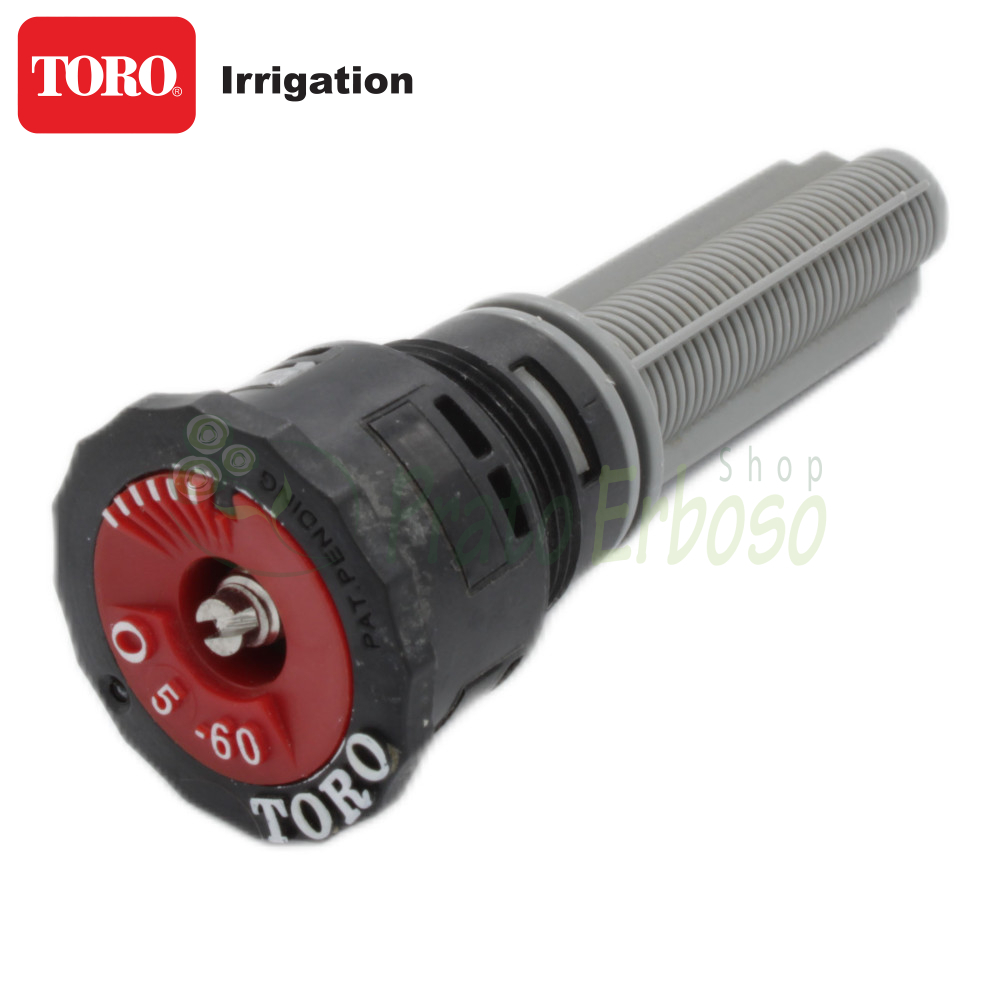

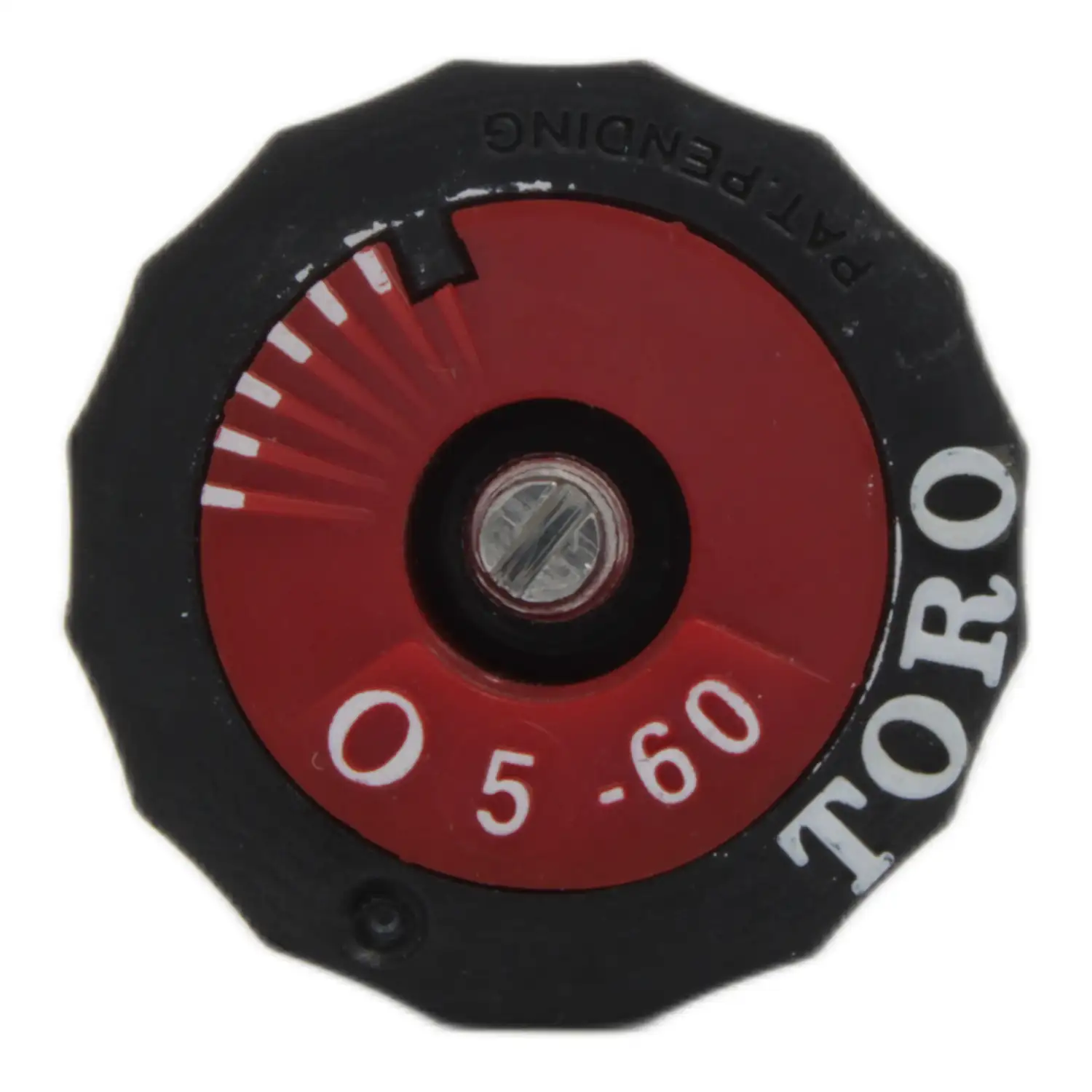

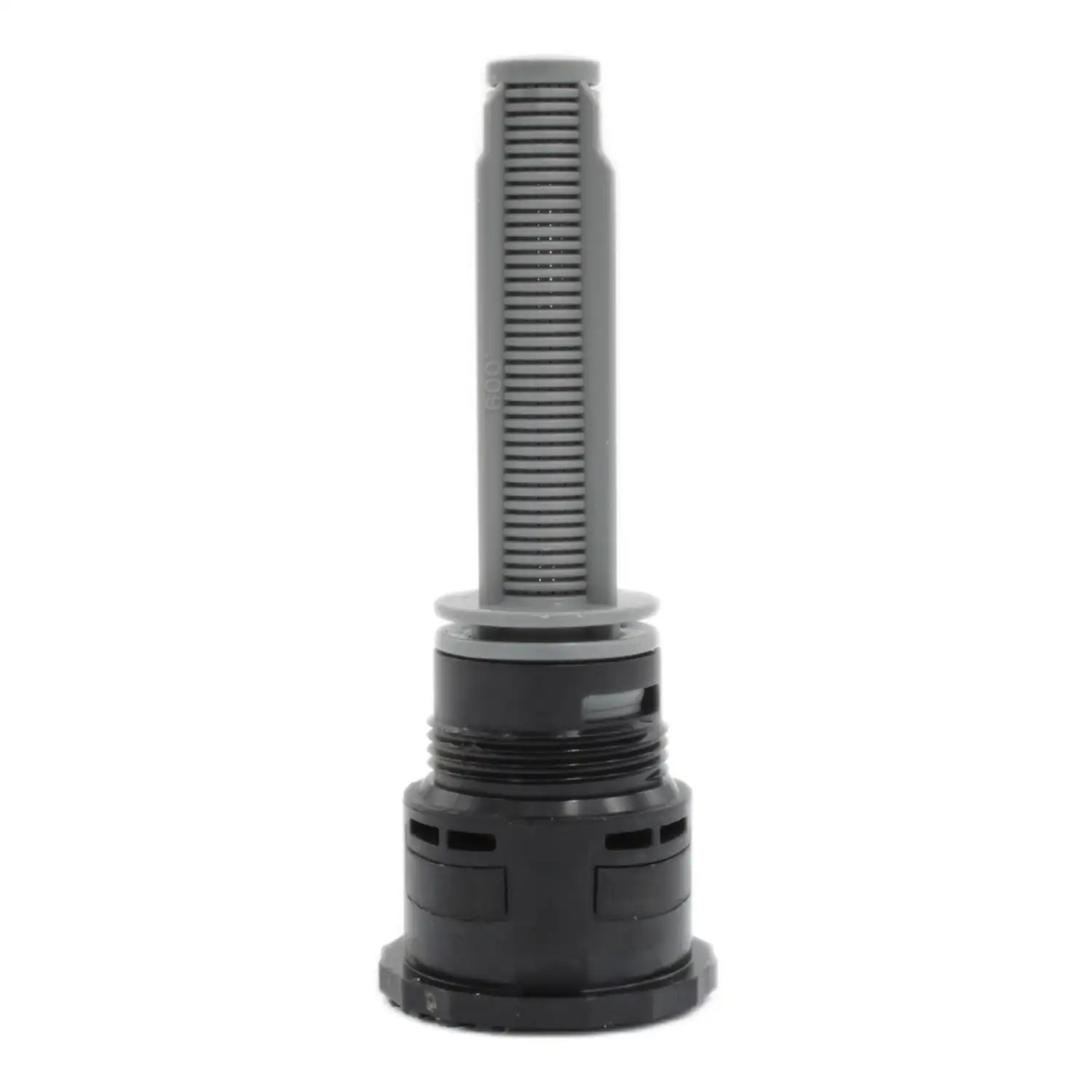

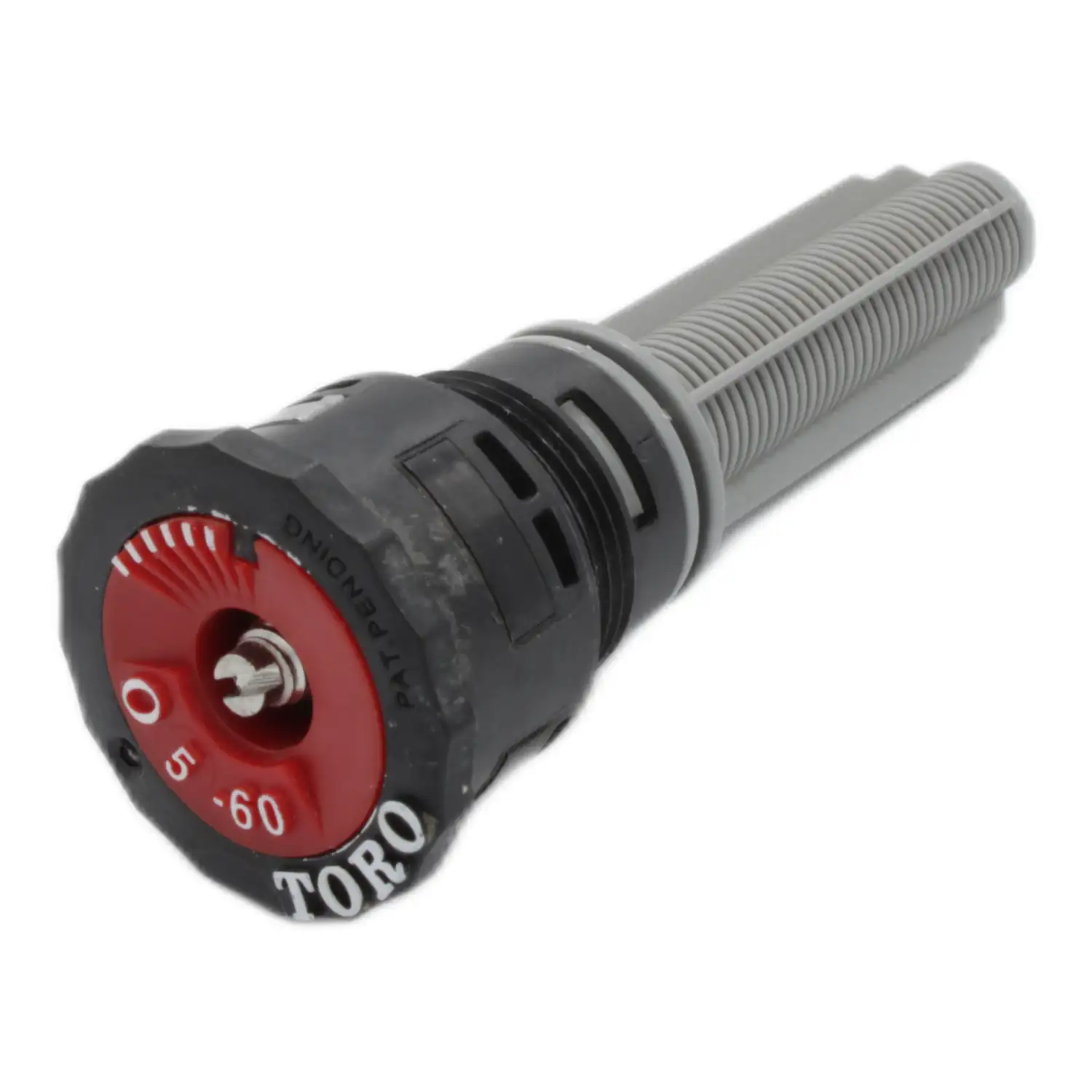

O-T-5-60P - Fixed angle nozzle range 1.5 m 60 degrees
The Toro OT-5-60P Precision Series nozzle features H²O chip technology for greater efficiency than standard nozzle installations.
The OT-5-60P has a fixed angle of 60 degrees and a range of up to 1.5 meters.
By lowering the precipitation rate to 1 inch per hour or less, these nozzles are designed to conserve water and reduce losses.
Greater selection of arcs for precise distribution.
Uses 1/3 less flow to reach the radius of a regular sprayer nozzle.
The fixed or ultrasonic-welded parts ensure no variation in the water jet, to guarantee a better margin of definition.
The H²O chip generates a larger and more uniform droplet that creates compactness in the irrigated arch.
- Max range (m)
- 1.5
- Working angle
- fixed
- Angolo di lavoro
- 60
- Type of attack
- male
Patented H²0 Chip Technology
With the patented H²0 technology - with no moving parts - each series of Precision series nozzles creates one or more oscillating high frequency flows to reach the desired radius and arc, reducing the water used by 1/3.
Maximize sprinkler efficiency
Precision nozzles provide an industry-first precipitation rate (25mm / h) to optimize soil penetration rate. The lower precipitation rate, combined with the high distribution uniformity, make this series of distributors the most efficient in the 1.5-4.6 m category.
Design and effectiveness for renovation purposes
The flow volume reduction of the Precision Series nozzles optimize design efficiency and help reduce overall material costs by using fewer valves and controller stations. Additionally, existing low pressure systems can be repaired with a simple refurbishment of the existing high flow nozzle.
Third party validation of performance
Precision Series nozzles have been tested and validated in the field and at the Center for Irrigation Technology (CIT).
Optional pressure compensation device (PCD)
It allows optimal performance even when the inlet pressure reaches or exceeds 2.75 bar.
