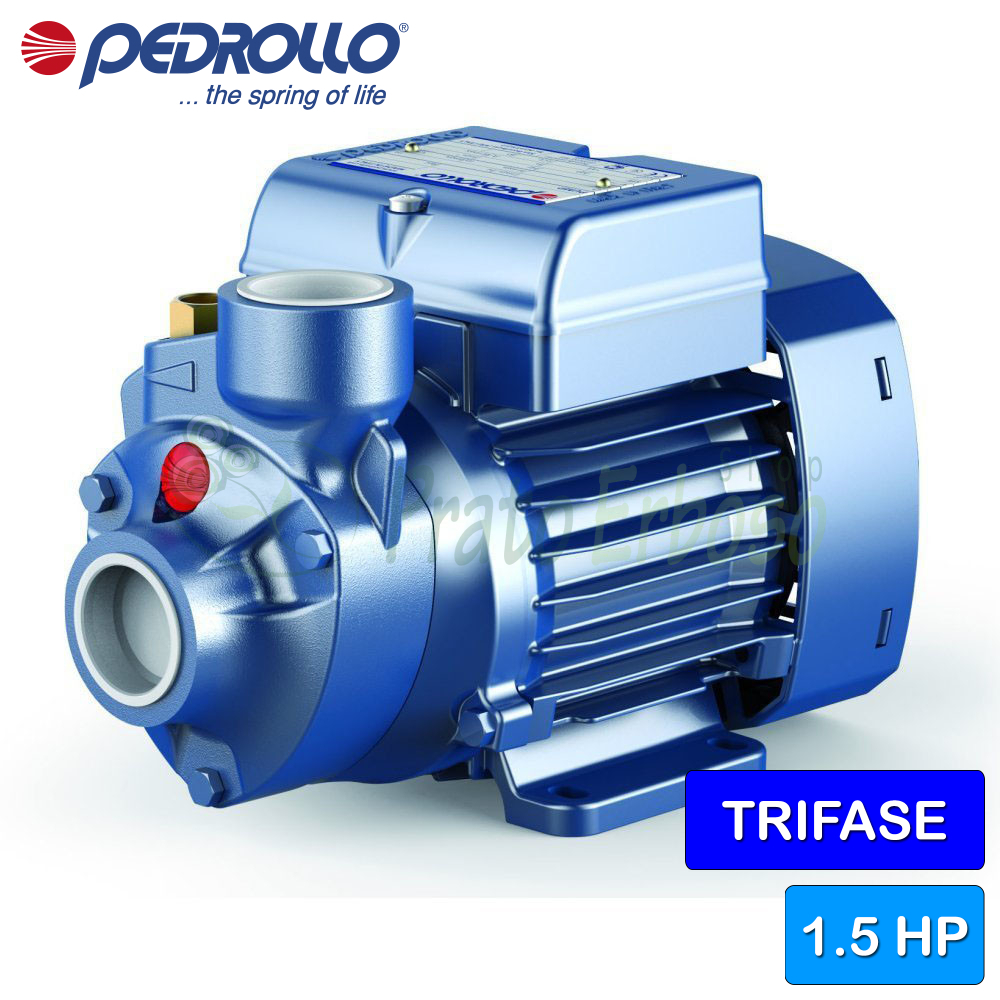

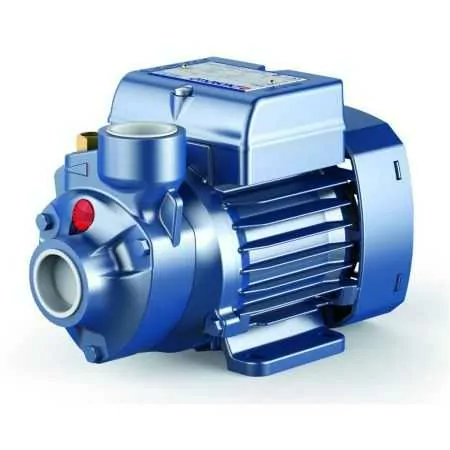

PK 100 - 1.5 HP three-phase peripheral impeller electric pump
1.1 Kw (1.5 HP) motor. Flow rate up to 70 l/min (4.2 m³/h). Head up to 80 m.
The Pedrollo PK 100 peripheral electric pump is suitable for irrigating vegetable gardens and gardens.
Suitable for water distribution in conjunction with small pressure tanks.
Convenient for home use, the PK 100 is a compact electric pump.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The noise level has been reduced by 20% compared to the previous version.
The PK 100, unlike the PK 90 model, returns to having the 3/4 inch suction and delivery mouth.
The flow rate ranges from 5 to 70 litres per hour and the head from 15 to 80 metres.
Made with high quality materials and components, such as cast iron, steel, aluminum and brass, this pump is durable and reliable.
Certified IP44, the PK 100 is resistant to water and dust.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 6.2
- Absorption at 400V (A)
- 3.6
- Suction mouth
- 1 "
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 55
- Flow rate min. (l./min.)
- 5
- Max flow (l./min.)
- 70
- Min head (m.)
- 15
- Max head (m.)
- 85
- Employments
- water supply
- Liquid temperature max. (° C)
- +60°C
- Motor voltage
- 230 V, 400 V
- Height (cm)
- 21.2
- Width (cm)
- 35.6
- Depth (cm)
- 12.5
- Weight kg)
- 14.4
- Guarantee
- 2
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-14 |
| LP diameter | 14 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
