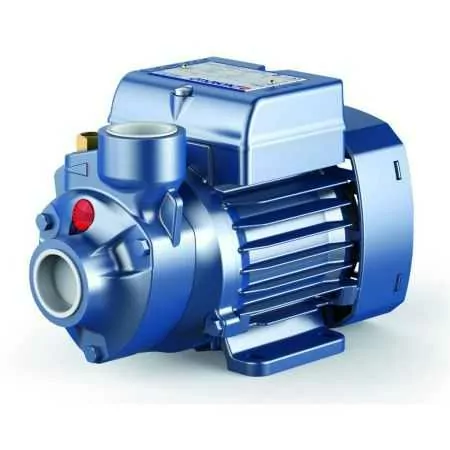

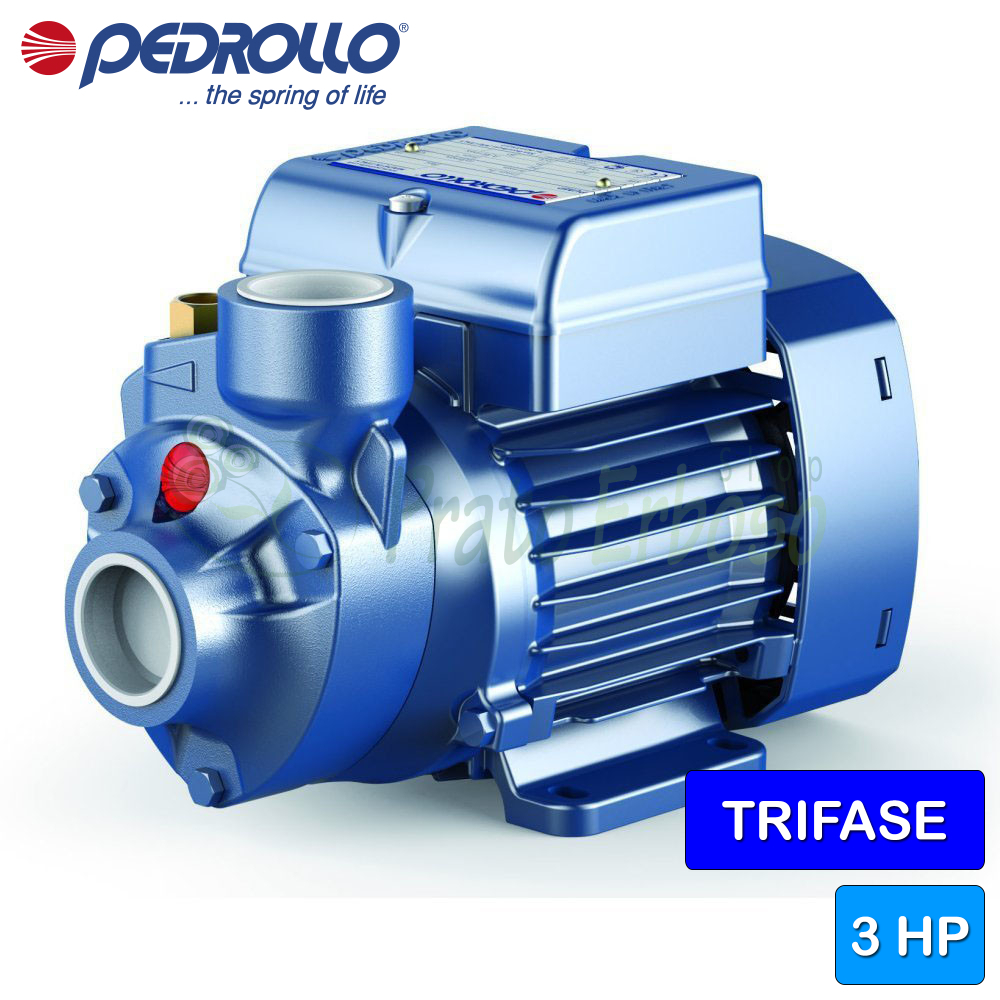

PK 300 - 3 HP three-phase peripheral impeller electric pump
2.2 Kw (3 HP) motor. Flow rate up to 90 l/min (5.4 m³/h). Head up to 95 m.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo PK 300 peripheral electric pump is suitable for irrigation of vegetable gardens and gardens.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
Suitable for water distribution in conjunction with small pressure tanks.
The high noise level characteristic of the PK series has been reduced by 20% on this new version of the PK 300.
Its small and compact size makes it the pump suitable for home use.
The PK 300 has a 1 inch suction and delivery port.
The flow rate ranges from 5 to 90 litres per hour and the head ranges from 10 to 95 metres.
Made with high quality materials and components, such as cast iron, steel, aluminum and brass, this pump is durable and reliable.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 9
- Capacitor
- 50 µF450 VL
- Absorption at 400V (A)
- 5.2
- Suction mouth
- 1 "
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 55
- Flow rate min. (l./min.)
- 5
- Max flow (l./min.)
- Min head (m.)
- 10
- Max head (m.)
- Employments
- water supply
- Liquid temperature max. (° C)
- +60°C,
- Motor voltage
- 230 V, 400 V
- Height (cm)
- 21.2
- Width (cm)
- 37.6
- Depth (cm)
- 12.5
- Weight kg)
- 18.6
- Guarantee
- 2
PK models and performance
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PK 100-200-300
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-14 |
| LP diameter | 14 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
