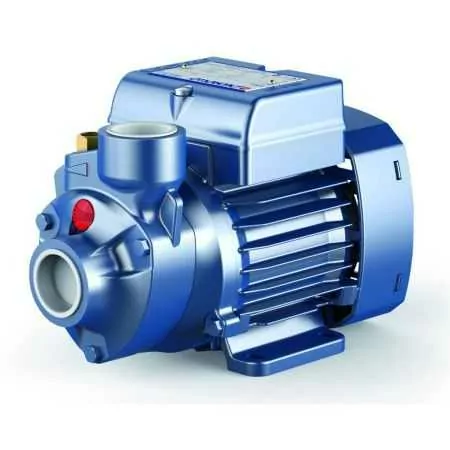

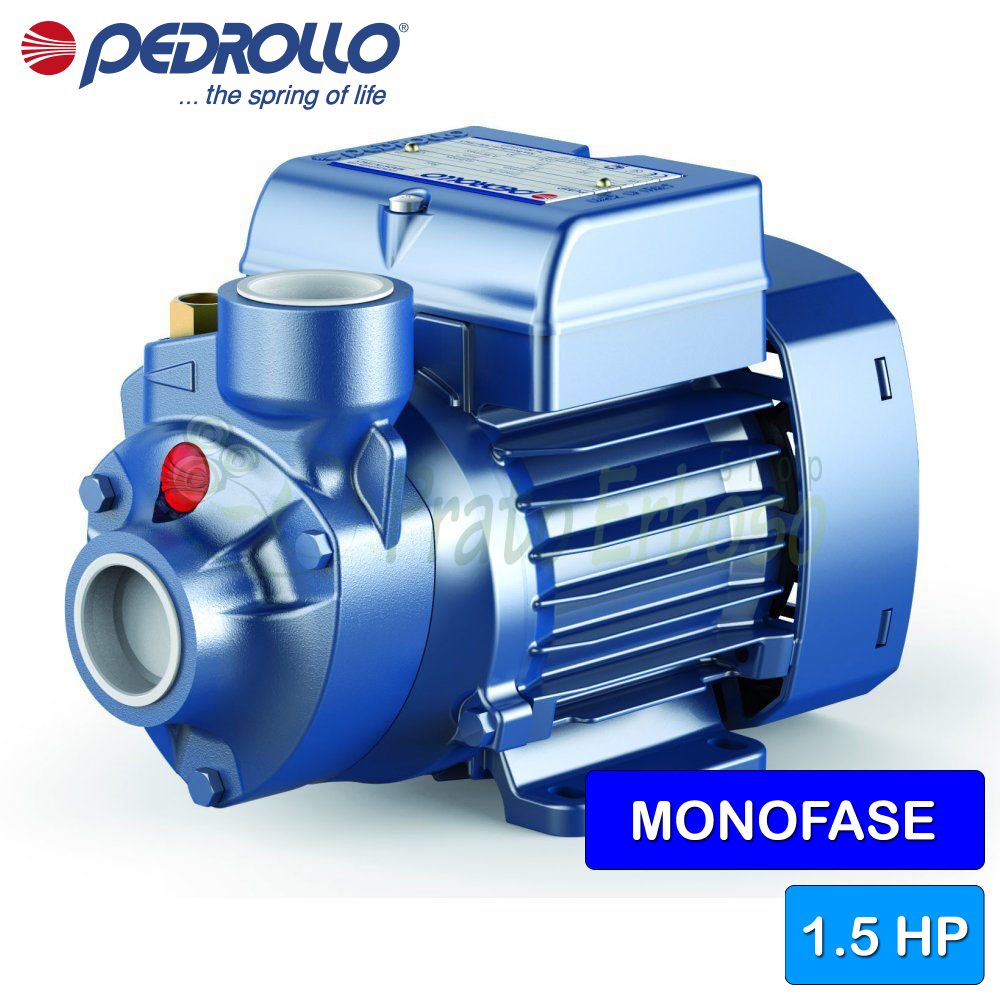

PKm 100 - 1.5 HP single-phase peripheral impeller electric pump

Name: PKm 100 - 1.5 HP single-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PKm 100
Price: 281.09 EUR
Availability: InStock

Flow rate up to 70 l/min (4.2 m³/h). Head up to 80 m. 1.1 Kw (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo PKm 100 peripheral electric pump is suitable for irrigating vegetable gardens and gardens.

Suitable for water distribution in conjunction with small pressure tanks.

Convenient for home use, the PKm 100 is a compact electric pump.

Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.

The noise level has been reduced by 20% compared to the previous version.

The PKm 100, unlike the PK 90 model, returns to having the 3/4 inch suction and delivery ports.

The flow rate ranges from 5 to 70 litres per hour and the head from 15 to 80 metres.

Made with high quality materials and components, such as cast iron, steel, aluminum and brass, this pump is durable and reliable.

Certified IP44, the PKm 100 is resistant to water and dust.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 9
Capacitor: 31.5 µF450 VL
Suction mouth: 1 "
Delivery mouth: 1 "
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 5
Max. flow rate (l./min.): 70
Min. head (m.): 15
Max. head (m.): 80
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +60°C
Motor voltage: 230 V
Height (cm): 21.2
Width (cm): 35.6
Depth (cm): 15.2
Weight (Kg): 15
Warranty (years): 2

Attachments

PK data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PK series pumps.

Download (410.21KB)

PKm models and performance

GUY

single phase

Pkm 60

PKm 65

PKm 80

PKm 90

PKm 100

Pkm 200

PKm 300

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
5 ÷ 40	38 ÷ 5
5 ÷ 50	50 ÷ 8
5 ÷ 50	66 ÷ 22
5 ÷ 40	82 ÷ 5
5 ÷ 70	80 ÷ 15
5 ÷ 80	86 ÷ 10
5 ÷ 90	95 ÷ 10

MOUTH
wait.	send.
1"	1"
3/4"	3/4"
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	3.0	3.6	4.2	4.8	5.4
Q	l/min	0	5	10	15	20	25	30	35	40	50	60	70	80	90
H	meters	40	38	33.5	29	24	19.5	15	10	5
		55	50	45.5	40.5	36	31	27	22	17	8
		70	66	61	56	51	46	41	36.5	31	22
		90	82	71	60	49	38	27	17	5
		85	80	75	70	65	60	55	50	45	35	24.5	15
		90	86	81	76	71	65.5	60	55	50	40	30	20	10
		100	95	90	85	80	75	70	65	60	50	40	30	20	10

Construction data of the PK 100-200-300

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-14
LP diameter	14
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
