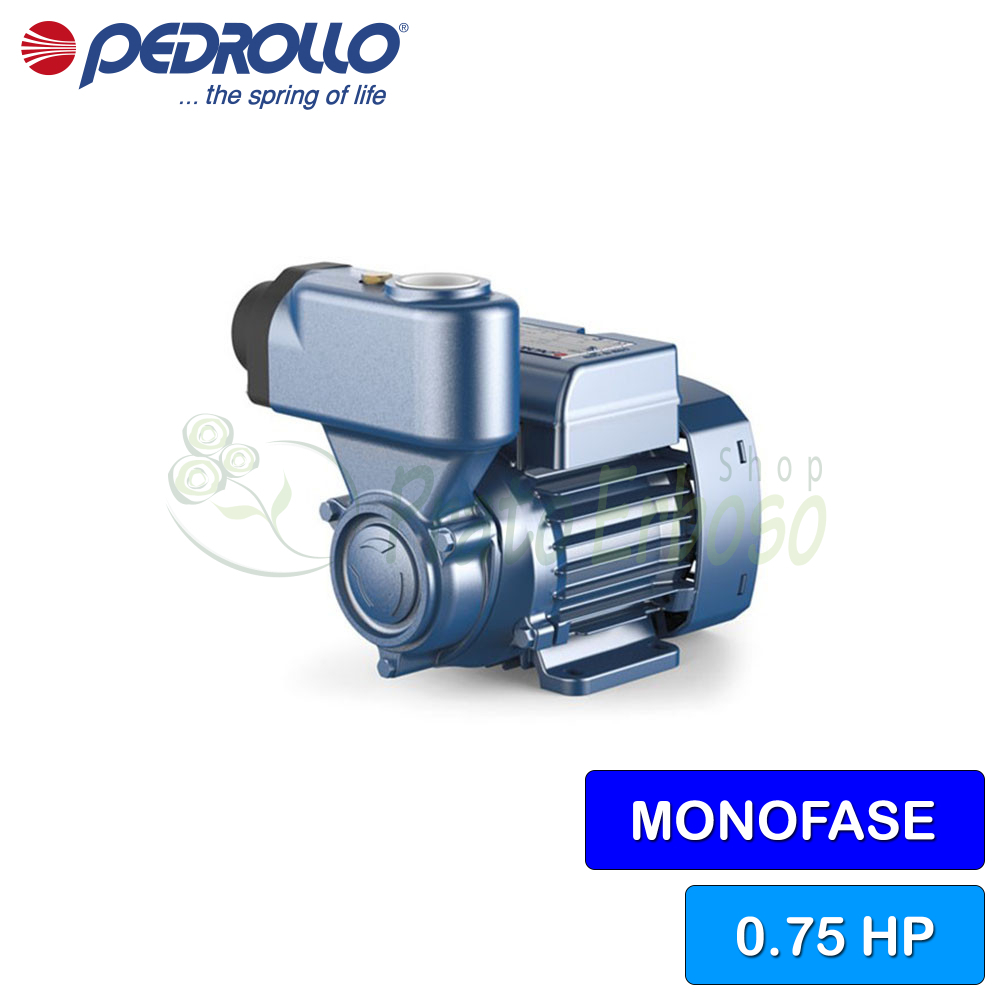

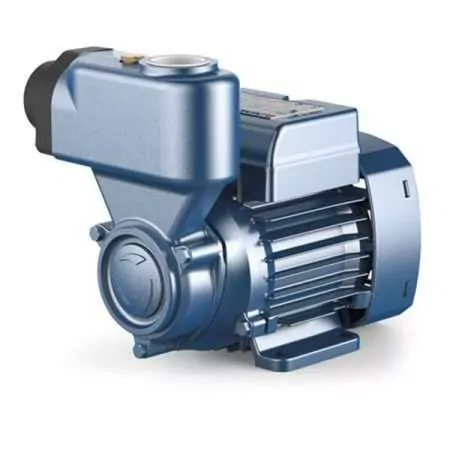

PKSm 65 - Self-priming electric pump with 0.75 HP single-phase peripheral impeller
Flow rate up to 50 l/min (3 m³/h). Head up to 55 m. 0.55 kW (0.75 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo PKSm 65 electric pump is recommended for water distribution in combination with small pressure tanks, for irrigation of vegetable gardens and gardens and for drawing water from tanks.
Pedrollo has created a compact, reliable and economical product.
Its compactness allows it to be installed without particular problems in a home environment.
The PKSm 65 is made of materials such as cast iron, aluminium and stainless steel which make it particularly resistant.
It is supplied with a check valve on the suction side.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.7
- Capacitor
- 14 µF 450 VL
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 8
- Max. head (m.)
- 55
- Jobs
- water supply
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- 230 V
- Height (cm)
- 19
- Width (cm)
- 22.7
- Depth (cm)
- 14.8
- Weight (Kg)
- 7.6
- Warranty (years)
- 2
PKSm models and performance
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PKS 60-65
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
