-42%

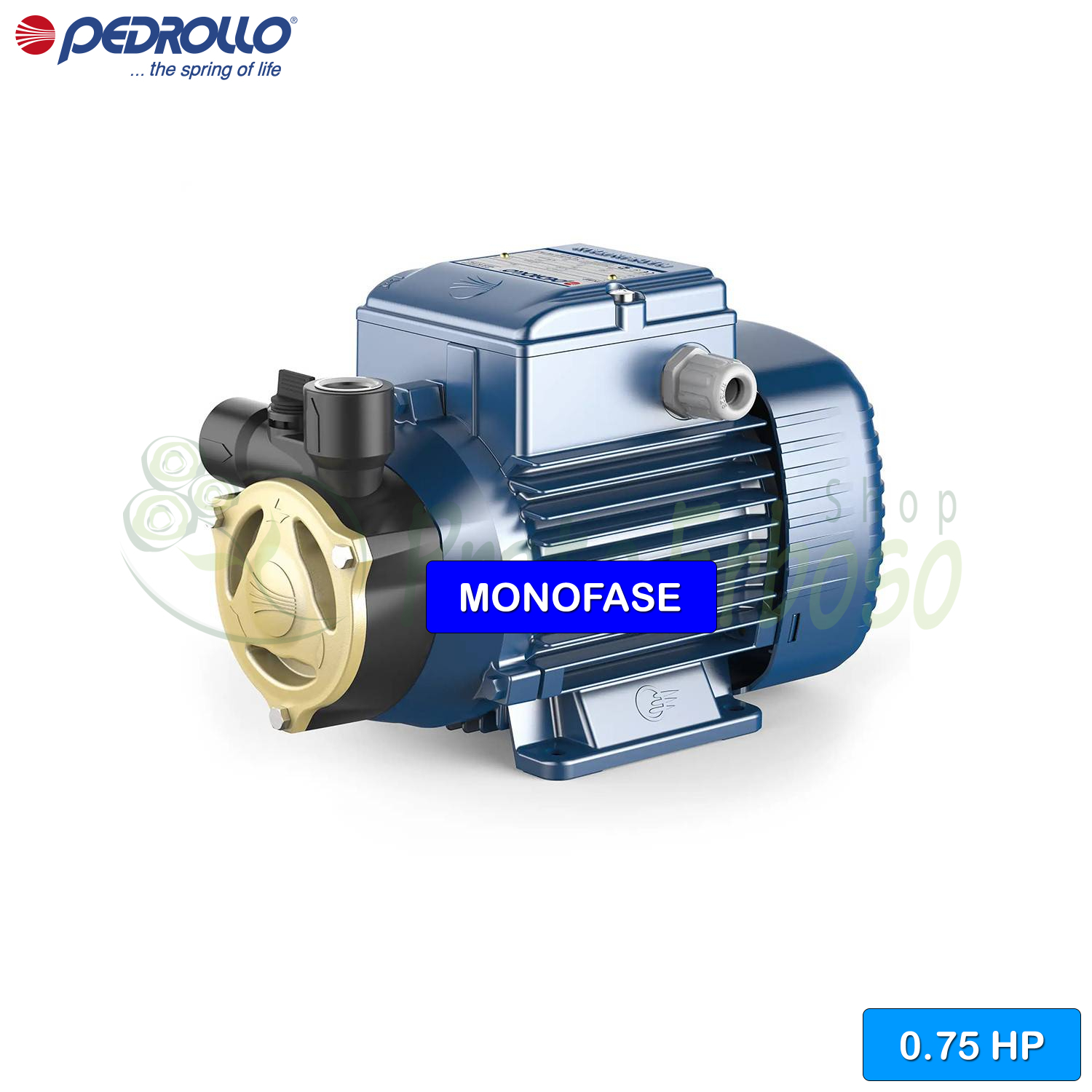

PQAm 70 - 0.75 HP single-phase electric pump with peripheral impeller
Flow rate up to 45 l/min (2.7 m³/h). Head up to 68 m. 0.55 Kw (0.75 HP) motor.
Variants:
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
×
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo PQAm 70 electric pump is solid and robust.
Pedrollo used materials such as brass, cast iron, aluminum, and stainless steel, which provide strength and durability.
Recommended for pumping clean water without abrasive particles and liquids that are not aggressive towards the constituent materials.
The PQAm 70 is constructed of PPS with a brass front cover which offers a guarantee against rust formation and oxidation.
It has a flow rate ranging from 2 to 45 litres per minute and a head ranging from 6 to 92 metres.
Data sheet
- Jobs
- cooling systems
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 6.2
- Capacitor
- 16 µF 450 VL
- Pump body
- PPS
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 2
- Max. flow rate (l./min.)
- 45
- Min. head (m.)
- 10
- Max. head (m.)
- 68
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Degree of protection
- IP 44
- Suction mouth
- 1/2"
- Delivery mouth
- 1/2"
- Height (cm)
- 17.9
- Width (cm)
- 26.1
- Depth (cm)
- 13.4
- Weight (Kg)
- 9.3
- Warranty (years)
- 2
Data sheet
Use and formulation of products
- Jobs
- cooling systems
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 6.2
- Capacitor
- 16 µF 450 VL
Pump components and construction
- Pump body
- PPS
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 2
- Max. flow rate (l./min.)
- 45
- Min. head (m.)
- 10
- Max. head (m.)
- 68
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1/2"
- Delivery mouth
- 1/2"
Dimensions and weight
- Height (cm)
- 17.9
- Width (cm)
- 26.1
- Depth (cm)
- 13.4
- Weight (Kg)
- 9.3
Packaging, maintenance, and warranty
- Warranty (years)
- 2
PQAm models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PQA 70
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | ST1-12 |
| LP diameter | 12 |
| Fixed ring LP | Silicon carbide |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Reinforced technopolymer |
| 2.0 - Cover | Brass CW617N EN 12165 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
