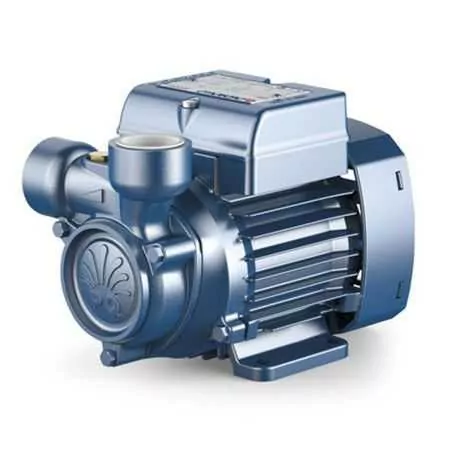

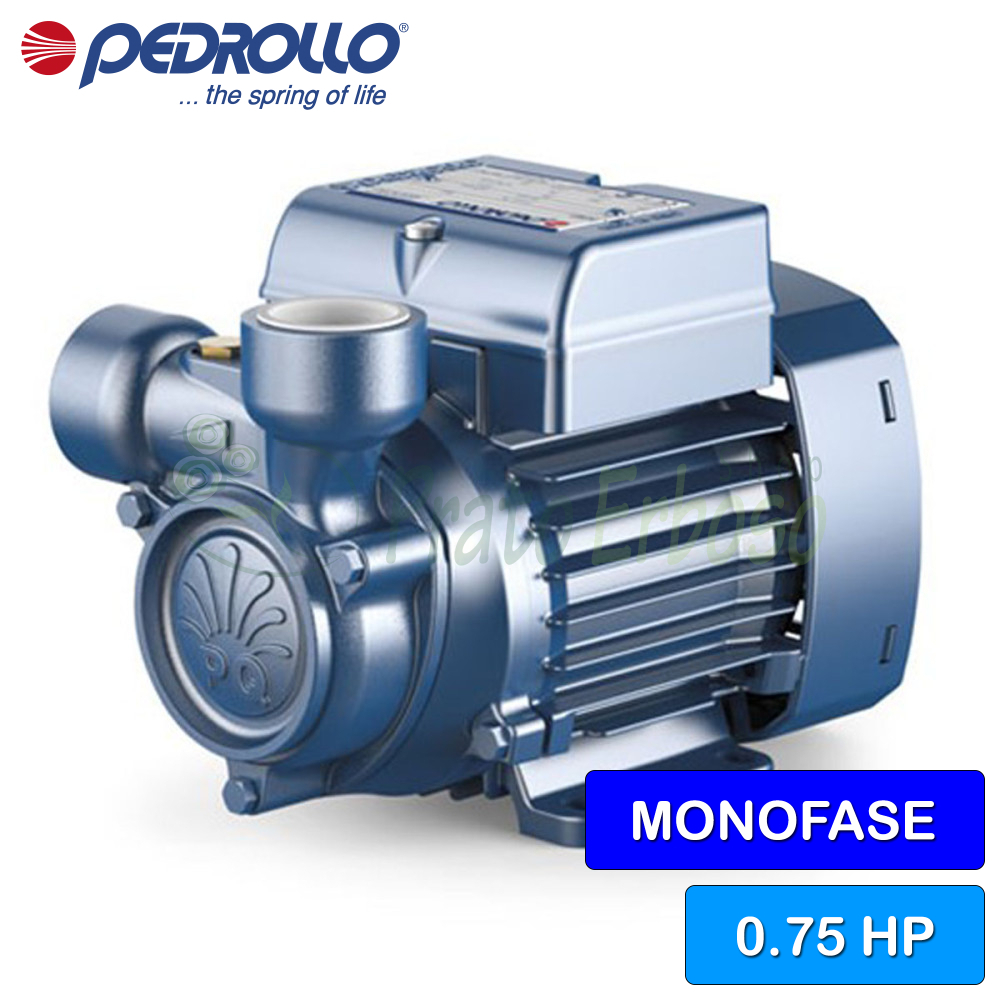

PQm 65 - Single-phase peripheral impeller electric pump 0.75 HP

Name: PQm 65 - Single-phase peripheral impeller electric pump 0.75 HP
Brand: Pedrollo
SKU: PQm 65
Price: 100.48 EUR
Availability: InStock

Flow rate up to 50 l/min (3 m³/h). Head up to 55 m. 0.55 Kw (0.75 HP) motor.

€100.48 Tax included

€82.36 Tax excluded

€173.24 -42%

Quantity

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo PQm 65 peripheral electric pump with radial suction is suitable for domestic applications.

The pump has a very simple operation, the impellers are activated and thanks to their movement they pump the water into the pump body.

The PQm 65 is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.

With the new version, the pump noise is more bearable and less intrusive thanks to the fact that it has been made quieter.

The flow rate ranges from 5 to 50 liters per minute. The head ranges from 8 to 55 meters.

The PQm 65 must be powered by a single-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.

The suction and delivery mouth is 1 inch.

Made of cast iron, steel and brass, the pump guarantees excellent performance and durability over time.

The installation must be carried out in well-ventilated closed places or in any case protected from the elements as its certified protection is IPX5.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.7
Capacitor: 14 µF 450 VL
Suction mouth: 1"
Delivery mouth: 1"
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 50
Min. head (m.): 8
Max. head (m.): 55
Jobs: water supply
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 15.2
Width (cm): 22
Depth (cm): 10
Weight (Kg): 6.9
Warranty (years): 2

Attachments

Technical sheet PQ

Models, performance curves and construction features of the PQ series Pedrollo pumps.

Download (459.67KB)

PQm models and performance

GUY

single phase

PQm 60

PQm 61

PQm 65

PQm 80

PQm 90

PQm 100

PQm 200

PQm 300

POWER
KW	HP
0.37	0.50
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
5 ÷ 40	40 ÷ 5
2 ÷ 33	40.5 ÷ 5
5 ÷ 50	55 ÷ 8
5 ÷ 50	70 ÷ 22
5 ÷ 40	90 ÷ 5
5 ÷ 70	85 ÷ 15
5 ÷ 80	90 ÷ 10
5 ÷ 90	100 ÷ 10

MOUTH
wait.	send.
1"	1"
1/2"	1/2"
1"	1"
3/4"	3/4"
1"	1"

Q	m³/hour	0	0.12	0.3	0.6	0.9	1.2	1.5	1.8	1.98	2.1	2.4	3.0	3.6	4.2	4.8	5.4
Q	l/min	0	2	5	10	15	20	25	30	33	35	40	50	60	70	80	90
H	meters	40	-	38	33.5	29	24	19.5	15	11	10	5
		40.5	38	34	28	22.3	17	12.1	7.5	5
		55	-	50	45.5	40.5	36	31	27	24	22	17	8
		70	-	66	61	56	51	46	41	38.5	36.5	31	22
		90	-	82	71	60	49	38	27	21	17	5
		85	-	80	75	70	65	60	55	52	50	45	35	25	15
		90	-	86	81	76	71	65.5	60	58	55	50	40	30	20	10
		100	-	95	90	85	80	75	70	67	65	60	50	40	30	20	10

Construction data of the PQ 60-65

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	DX53D EN 10346 galvanized steel
7.0 - Lantern	Aluminum EN-AB 46100

Compare with Similar Products

	PQm 65 - Single-phase peripheral impeller electric pump 0.75 HP This product Flow rate up to 50 l/min (3 m³/h). Head up to 55 m. 0.55 Kw (0.75 HP) motor.	PQm 61 - Single-phase peripheral impeller electric pump 0.40 HP Quick View Flow rate up to 40 l/min (2.4 m³/h). Head up to 40 m. 0.30 Kw (0.40 HP) motor.	PQm 80 - 1 HP single-phase peripheral impeller electric pump Quick View Flow rate up to 50 l/min (3 m³/h). Head up to 70 m. 0.75 Kw (1 HP) motor.	PQm 90 - 1 HP single-phase peripheral impeller electric pump Quick View Flow rate up to 40 l/min (2.4 m³/h). Head up to 90 m. 0.75 Kw (1 HP) motor.
Price	Price €173.24 -42% €100.48	Price €145.18 -42% €84.20	Price €268.40 -42% €155.67	Price €314.76 -42% €182.56
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 0.55	Power (Kw) 0.30	Power (Kw) 0.75	Power (Kw) 0.75
Power (HP)	Power (HP) 0.75	Power (HP) 0.40	Power (HP) 1	Power (HP) 1
Absorption at 230V (A)	Absorption at 230V (A) 3.7	Absorption at 230V (A) 2	Absorption at 230V (A) 5.2	Absorption at 230V (A) 5.6
Current consumption at 400V (A)	Current consumption at 400V (A) --	Current consumption at 400V (A) 1.15	Current consumption at 400V (A) --	Current consumption at 400V (A) --
Capacitor	Capacitor 14 µF 450 VL	Capacitor 10 µF 450 VL	Capacitor 20 µF 450 VL	Capacitor 20 µF 450 VL
Suction mouth	Suction mouth 1"	Suction mouth 1/2"	Suction mouth 1"	Suction mouth 3/4"
Delivery mouth	Delivery mouth 1"	Delivery mouth 1/2"	Delivery mouth 1"	Delivery mouth 3/4"
Pump body	Pump body Cast iron	Pump body Cast iron, AISI 304 stainless steel	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller Brass	Impeller Brass	Impeller Brass	Impeller Brass
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 420 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 44	Degree of protection IP 55	Degree of protection IP 44	Degree of protection IP 44
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 5	Minimum flow rate (l./min.) 2	Minimum flow rate (l./min.) 5	Minimum flow rate (l./min.) 5
Max. flow rate (l./min.)	Max. flow rate (l./min.) 50	Max. flow rate (l./min.) 33	Max. flow rate (l./min.) 50	Max. flow rate (l./min.) 40
Min. head (m.)	Min. head (m.) 8	Min. head (m.) 5	Min. head (m.) 22	Min. head (m.) 5
Max. head (m.)	Max. head (m.) 55	Max. head (m.) 40.5	Max. head (m.) 70	Max. head (m.) 90
Jobs	Jobs water supply	Jobs water supply, irrigation	Jobs water supply	Jobs water supply
Max. liquid temperature (°C)	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) 90	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C
Motor voltage	Motor voltage 230 V	Motor voltage 230 V, 400V	Motor voltage 230	Motor voltage 230 V
Height (cm)	Height (cm) 15.2	Height (cm) 14.5	Height (cm) 18.1	Height (cm) 18.1
Width (cm)	Width (cm) 22	Width (cm) 19.2	Width (cm) 25.6	Width (cm) 25.6
Depth (cm)	Depth (cm) 10	Depth (cm) 10	Depth (cm) 14.2	Depth (cm) 14.2
Weight (Kg)	Weight (Kg) 6.9	Weight (Kg) 4.8	Weight (Kg) 9.7	Weight (Kg) 9.9
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
