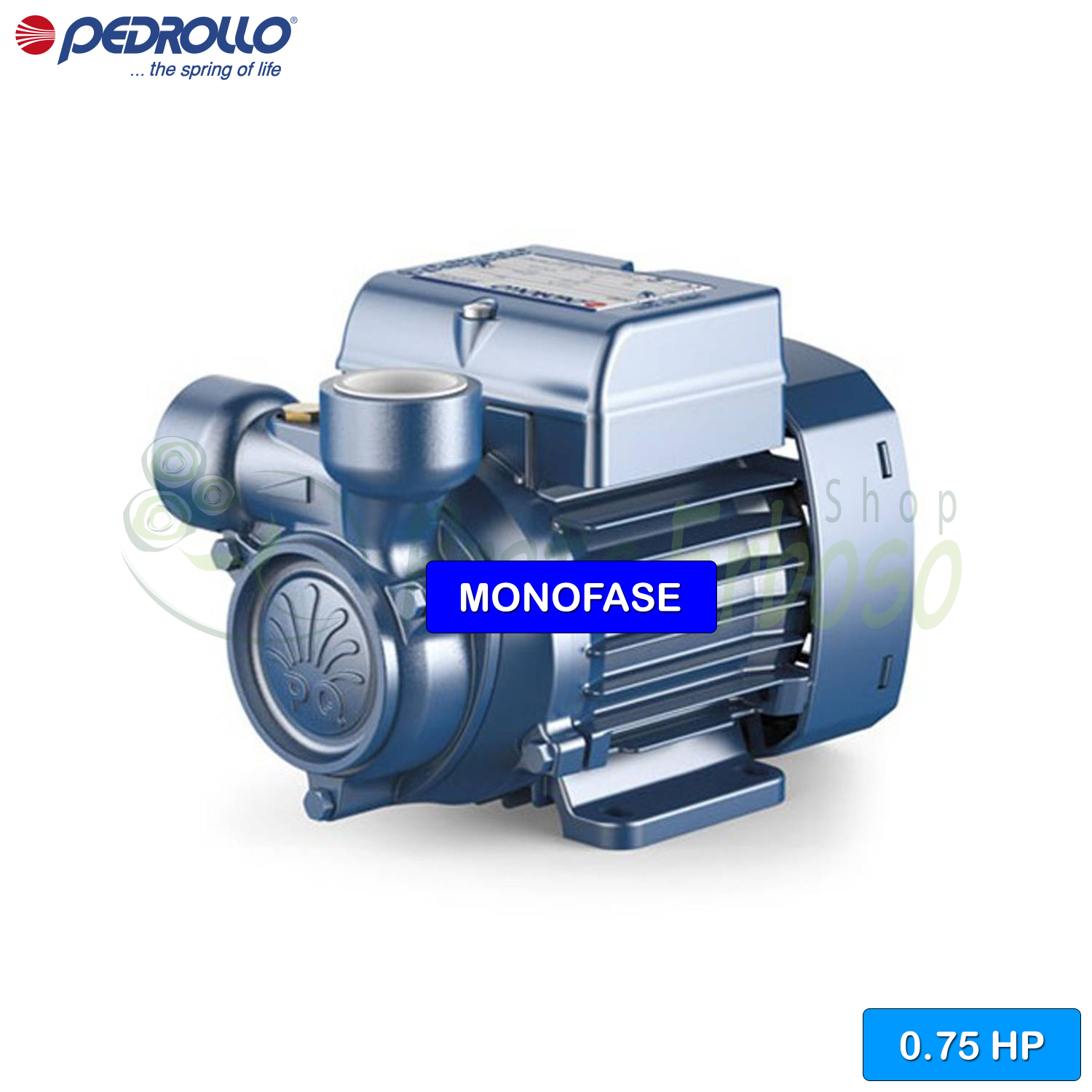

PQm 65 - Single-phase peripheral impeller electric pump 0.75 HP
Flow rate up to 50 l/min (3 m³/h). Head up to 55 m. 0.55 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The Pedrollo PQm 65 peripheral electric pump with radial suction is suitable for domestic applications.
The pump has a very simple operation, the impellers are activated and thanks to their movement they pump the water into the pump body.
The PQm 65 is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
With the new version, the pump noise is more bearable and less intrusive thanks to the fact that it has been made quieter.
The flow rate ranges from 5 to 50 liters per minute. The head ranges from 8 to 55 meters.
The PQm 65 must be powered by a single-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The suction and delivery mouth is 1 inch.
Made of cast iron, steel and brass, the pump guarantees excellent performance and durability over time.
The installation must be carried out in well-ventilated closed places or in any case protected from the elements as its certified protection is IPX5.
- Jobs
- water supply
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.7
- Capacitor
- 14 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 8
- Max. head (m.)
- 55
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Degree of protection
- IP 44
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Height (cm)
- 15.2
- Width (cm)
- 22
- Depth (cm)
- 10
- Weight (Kg)
- 6.9
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.7
- Capacitor
- 14 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 8
- Max. head (m.)
- 55
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1"
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 15.2
- Width (cm)
- 22
- Depth (cm)
- 10
- Weight (Kg)
- 6.9
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 PQm 65 - Single-phase peripheral impeller electric pump 0.75 HPThis product Flow rate up to 50 l/min (3 m³/h). Head up to 55 m. 0.55 Kw (0.75 HP) motor. |  PKSm 65 - Self-priming electric pump with 0.75 HP single-phase peripheral impeller Flow rate up to 50 l/min (3 m³/h). Head up to 55 m. 0.55 kW (0.75 HP) motor. |  PVm 65 - 0.75 HP single-phase peripheral impeller electric pump Flow rate up to 40 l/min (2.4 m³/h). Head up to 58 m. 0.58 Kw (0.75 HP) motor. | |
|---|---|---|---|
| Price | Price €176.90 -42% €102.60 | Price €230.58 -42% €133.74 | Price €451.40 -42% €261.81 |
| Jobs | Jobs water supply | Jobs water supply | Jobs air conditioning systems |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.55 | Power (Kw) 0.55 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.75 | Power (HP) 0.75 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.7 | Absorption at 230V (A) 3.7 | Absorption at 230V (A) 4.4 |
| Capacitor | Capacitor 14 µF 450 VL | Capacitor 14 µF 450 VL | Capacitor 14 µF 450 VL |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Brass |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 2 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 50 | Max. flow rate (l./min.) 50 | Max. flow rate (l./min.) 40 |
| Min. head (m.) | Min. head (m.) 8 | Min. head (m.) 8 | Min. head (m.) 7 |
| Max. head (m.) | Max. head (m.) 55 | Max. head (m.) 55 | Max. head (m.) 58 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Suction mouth | Suction mouth 1" | Suction mouth 1" | Suction mouth 1/2" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1/2" |
| Height (cm) | Height (cm) 15.2 | Height (cm) 19 | Height (cm) 15.2 |
| Width (cm) | Width (cm) 22 | Width (cm) 22.7 | Width (cm) 24.35 |
| Depth (cm) | Depth (cm) 10 | Depth (cm) 14.8 | Depth (cm) 12.0 |
| Weight (Kg) | Weight (Kg) 6.9 | Weight (Kg) 7.6 | Weight (Kg) 6.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
