PQ 80-Bs - 1 HP three-phase peripheral impeller electric pump
Flow rate up to 50 l/min (1.2 m³/h). Head up to 69 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 August - Friday 14 August |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 August - Friday 14 August |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 August - Friday 14 August
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 August - Friday 14 August

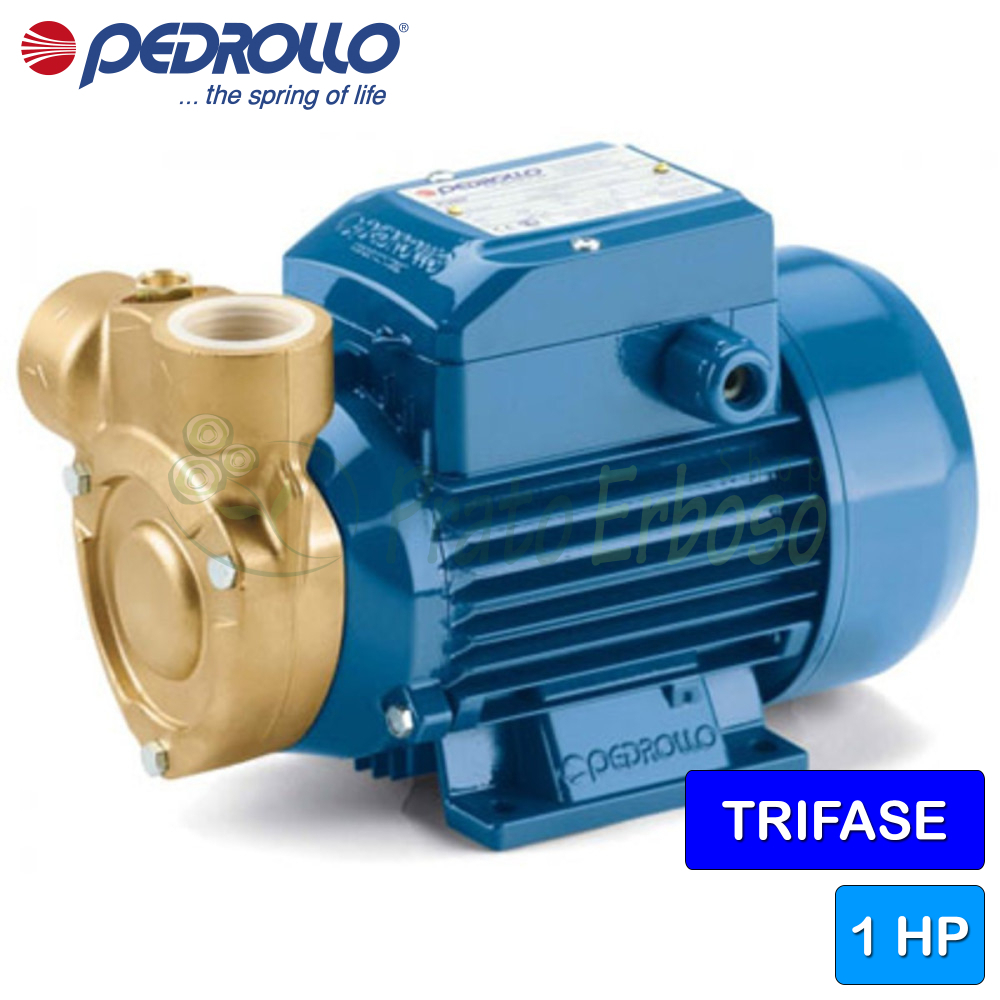

The Pedrollo PQ 80-Bs electric pump is an update to the PQ series and is recommended for industrial use.
A unique feature of this pump is the construction of the pump body which in this case is made of brass.
This pump differs from the PQ series, in that the PQ series is for domestic use and the pump body of that series is made of steel.
The use of CW617N brass guarantees against the formation of rust and oxidation, which consequently allows the pump to last over time.
Thanks to its hydraulic characteristics, small size and compactness, the PQ 80-Bs allows for industrial use in very restricted areas in chillers, air conditioning, cooling or boiler power equipment.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The flow rate ranges from 2 to 50 liters per minute. The head ranges from 5 to 69 meters.
The PQ 80-Bs must be powered by a single-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Current consumption at 400V (A)
- Capacitor
- 12.5 µF 450 VL
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
- Pump body
- Brass
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 2
- Max. flow rate (l./min.)
- 20
- Min. head (m.)
- 10
- Max. head (m.)
- 95
- Jobs
- water supply
- Max. liquid temperature (°C)
- 90
- Motor voltage
- 230 V
- Height (cm)
- 15.5
- Width (cm)
- 22.4
- Depth (cm)
- 11.9
- Weight (Kg)
- 6.2
- Warranty (years)
- 2
