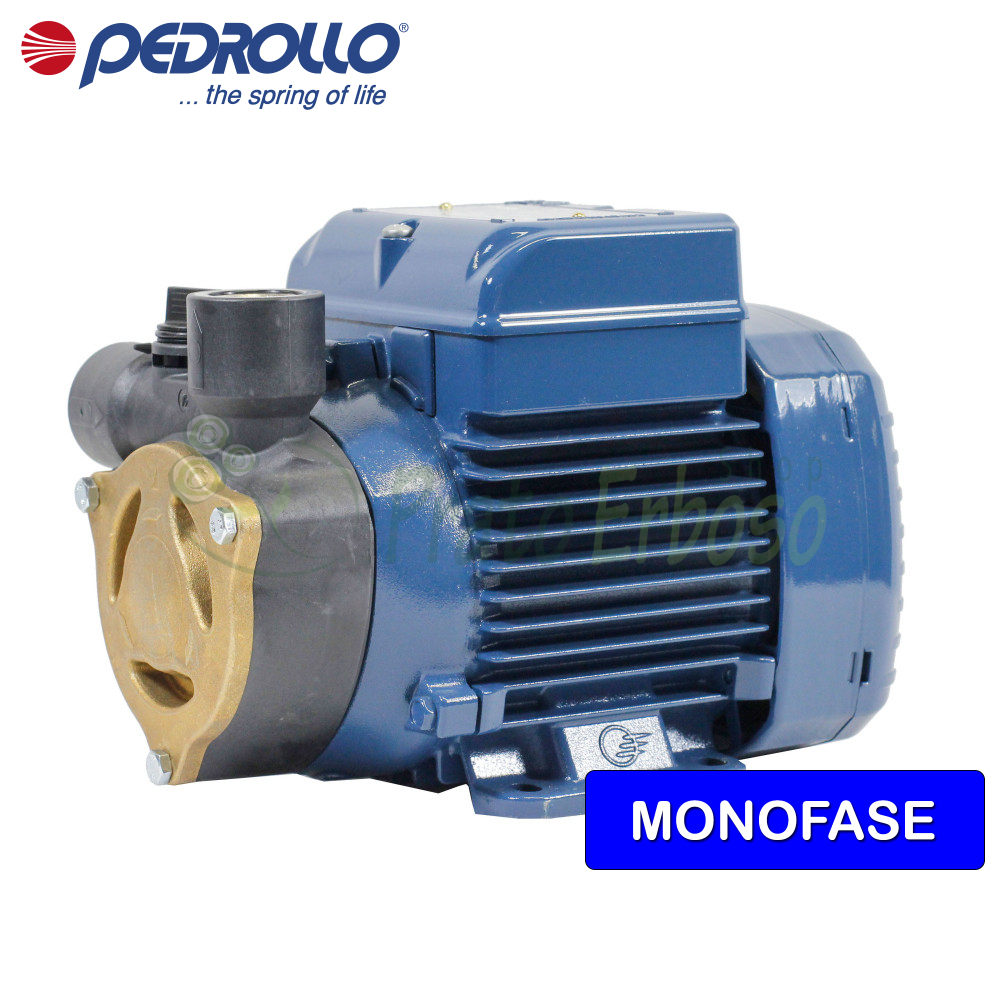

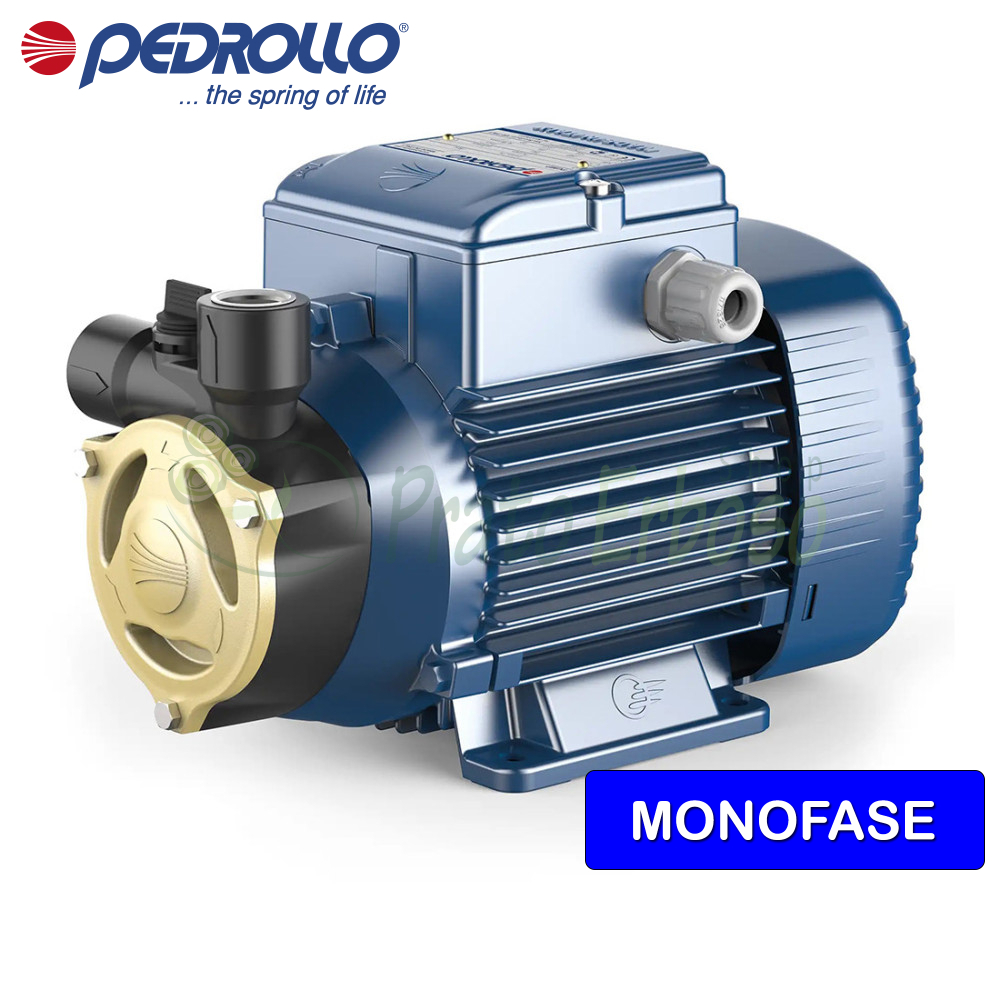

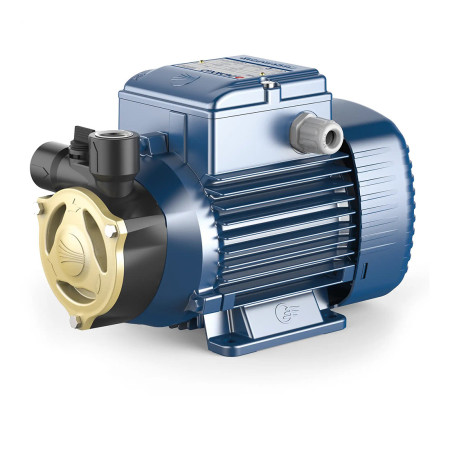

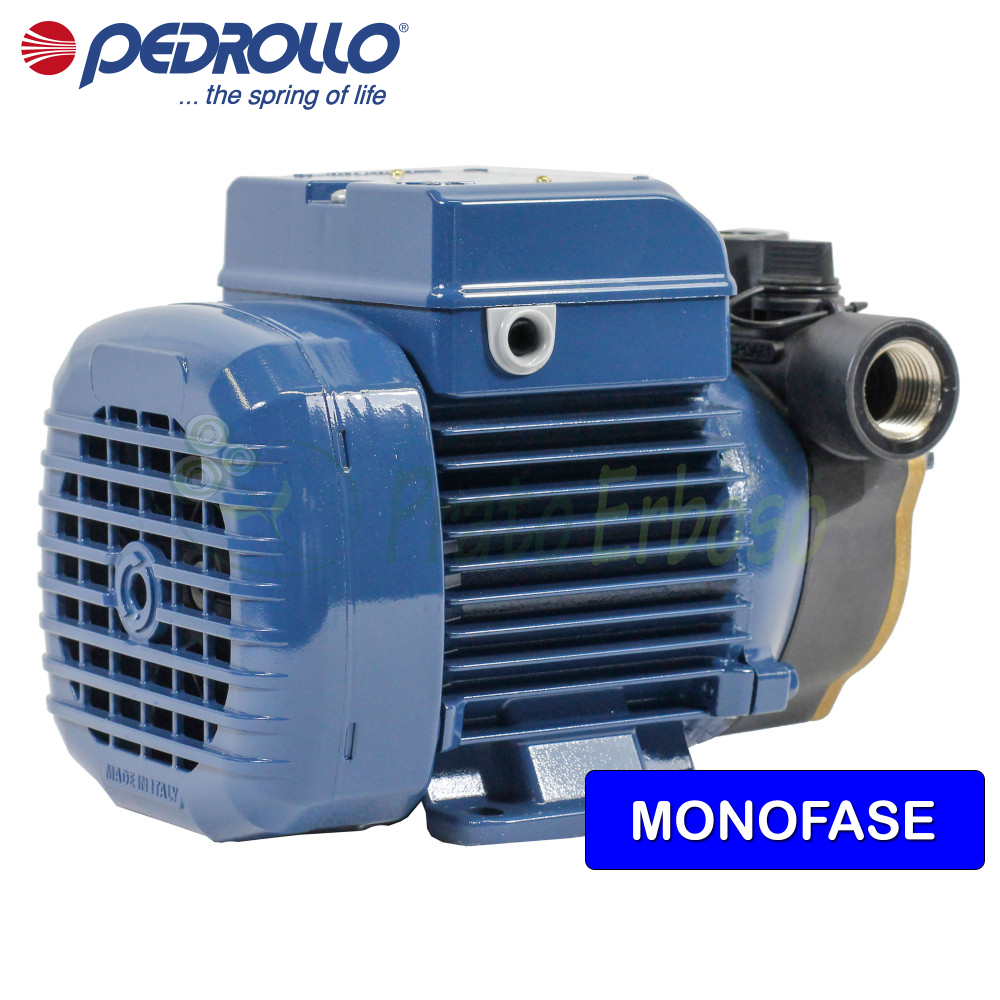

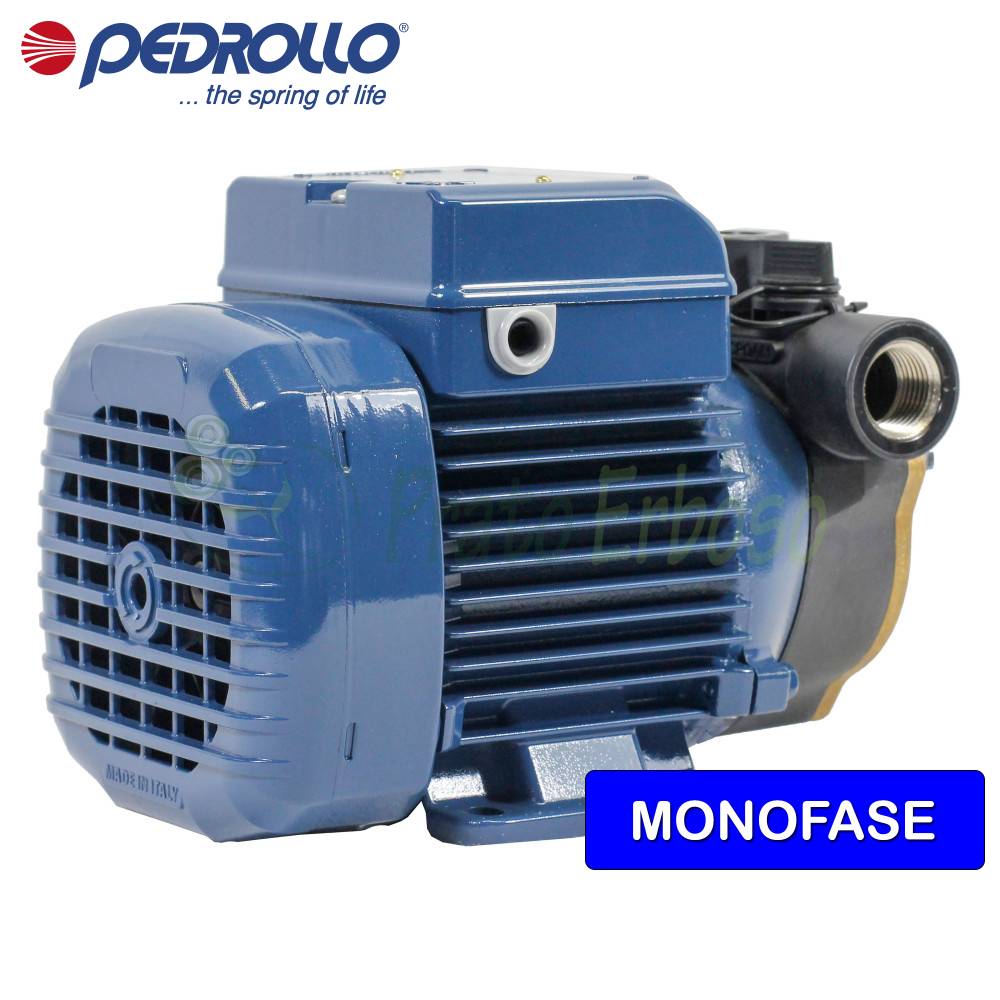

PQAm 60 - 0.40 HP single-phase electric pump with peripheral impeller
Flow rate up to 32 l/min (1.92 m³/h). Head up to 40.5 m. 0.30 Kw (0.40 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo PQAm 60 electric pump has a peripheral impeller and a PPS pump body.
Pedrollo built this pump in PPS with a brass impeller front cover; these materials are a guarantee against the formation of rust.
The PQAm 60 is recommended for use in the industrial sector, for example in cooling, air conditioning and ironing systems.
It has a flow rate ranging from 2 to 32 litres per minute and a head ranging from 5 to 40.5 metres.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.30
- Power (HP)
- 0.40
- Absorption at 230V (A)
- 2.5
- Capacitor
- 10 µF 450 VL
- Suction mouth
- 1/2"
- Delivery mouth
- 1/2"
- Pump body
- PPS
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 2
- Max. flow rate (l./min.)
- 32
- Min. head (m.)
- 5
- Max. head (m.)
- 40.5
- Jobs
- cooling systems
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 14.5
- Width (cm)
- 19.8
- Depth (cm)
- 11.6
- Weight (Kg)
- 4.7
- Warranty (years)
- 2
PQAm models and performance
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PQA 50-60
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | ST1-12 |
| LP diameter | 12 |
| Fixed ring LP | Silicon carbide |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Reinforced technopolymer |
| 2.0 - Cover | Brass CW617N EN 12165 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
