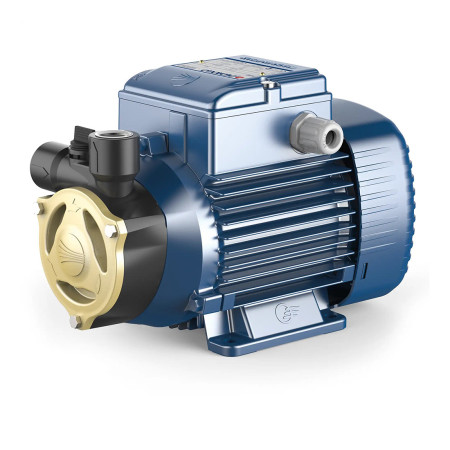

PQAm 90 - 1 HP single-phase peripheral impeller electric pump Pedrollo - 1

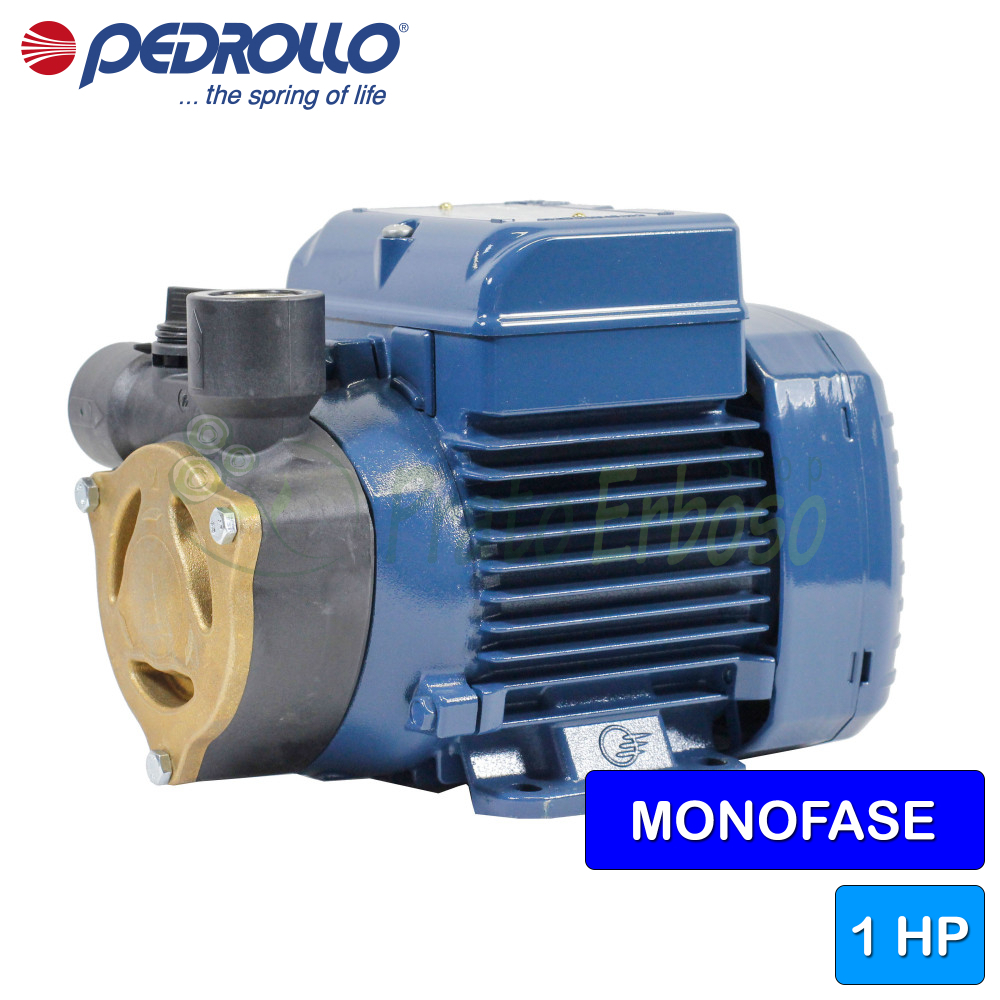

PQAm 90 - 1 HP single-phase peripheral impeller electric pump Pedrollo - 2

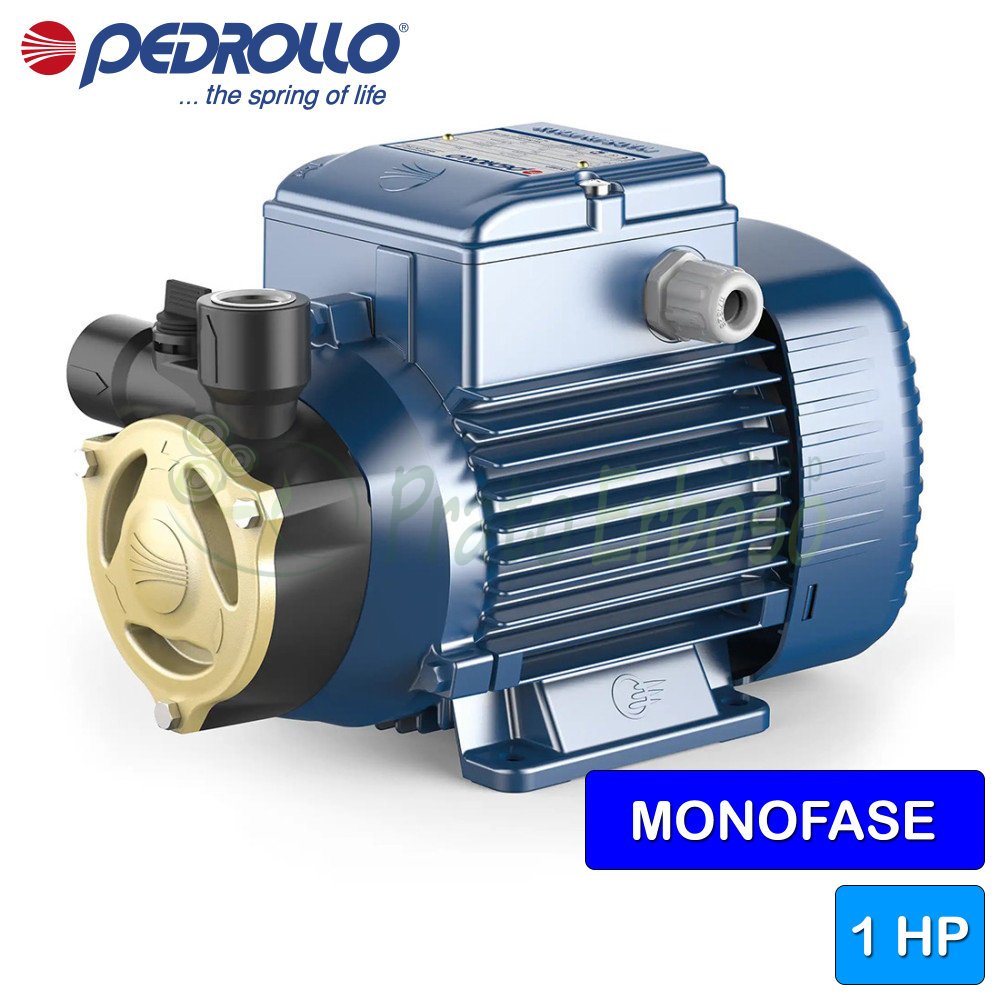

PQAm 90 - 1 HP single-phase peripheral impeller electric pump Pedrollo - 3

-42%

PQAm 90 - 1 HP single-phase electric pump with peripheral impeller

Name: PQAm 90 - 1 HP single-phase electric pump with peripheral impeller
Brand: Pedrollo
SKU: PQAm 90
Price: 260.4 EUR
Availability: InStock

Flow rate up to 38 l/min (2.28 m³/h). Head up to 92 m. 0.75 Kw (1 HP) motor.

Variants:

Order it before 12:00 and receive it between Thursday 25 June and Friday 26 June with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 25 June - Friday 26 June
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 25 June - Friday 26 June

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 25 June - Friday 26 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 25 June - Friday 26 June

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

Reinforced packaging to reduce transport damage.

We supply all spare parts on this product.

Description

The Pedrollo PQAm 90 electric pump is recommended for use in the industrial sector.

It can be used for cooling, air conditioning and ironing systems.

It has a flow rate ranging from 2 to 38 litres per minute and a head ranging from 6 to 92 metres.

Pedrollo has created the PQAm 90 in PPS with a brass front cover on the impeller to prevent the formation of rust and oxidation.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 5.6
Capacitor: 20 µF 450 VL
Suction mouth: 1/2"
Delivery mouth: 1/2"
Pump body: PPS
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 2
Max. flow rate (l./min.): 38
Min. head (m.): 6
Max. head (m.): 92
Jobs: cooling systems
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 17.9
Width (cm): 26.0
Depth (cm): 13.4
Weight (Kg): 9.4
Warranty (years): 2

Attachments

PQA data sheet

Construction and operating characteristics. Work curves and use limits of Pedrollo PQA series pumps.

Download (276.87KB)

PQAm models and performance

TYPE

single phase

PQAm 50

PQAm 60

PQAm 70

PQAm 72

PQAm 90

POWER
KW	HP
0.18	0.25
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1

PERFORMANCES
Q liters/min	H meters
2 ÷ 28	40 ÷ 5
2 ÷ 32	40 ÷ 5
2 ÷ 45	65 ÷ 8
2 ÷ 50	65 ÷ 12
2 ÷ 38	90 ÷ 5

MOUTH
asp.	send.
1/2"	1/2"
1"	1"
1/2"	1/2"

Q	m³/hour	0	0.1	0.3	0.6	0.9	1.2	1.5	1.7	1.8	1.9	2.3	2.7	3.0
Q	l/min	0	2	5	10	15	20	25	28	30	32	38	45	50
H	meters	26	25	22	19	15	11	8	5
		40	38	35	29	23.5	18	12.5	9	7	5
		65	62	58	52	45.5	39.5	33	30	27	24	17	8
		65	-	62	56	51	45	40	36	34	32	25	17	12
		90	86	79	68	57	45	34	27	23	18	5

Construction data of the PQA 72-90

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Reinforced technopolymer
2.0 - Cover	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
