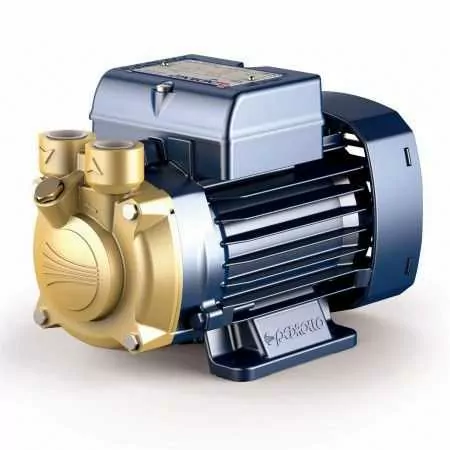

PV 65 - 0.75 HP three-phase peripheral impeller electric pump

Name: PV 65 - 0.75 HP three-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PV 65
Price: 262.52 EUR
Availability: InStock

Flow rate up to 40 l/min (2.4 m³/h). Head up to 58 m. 0.55 Kw (0.75 HP) motor.

Variants:

Order it before 23:59 on Friday and receive it on Wednesday 12 November with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 12 November - Thursday 13 November
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 12 November
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Wednesday 12 November

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Wednesday 12 November

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials making up the pump.

The construction features of this particularly compact brass pump are a sure guarantee against the formation of rust and oxidation; these features suggest its use in industrial fields such as cooling and air conditioning.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 2.6
Current consumption at 400V (A): 1.5
Suction mouth: 1/2"
Delivery mouth: 1/2"
Pump body: Brass
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 2
Max. flow rate (l./min.): 40
Min. head (m.): 7
Max. head (m.): 58
Jobs: air conditioning systems
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 15.2
Width (cm): 24.35
Depth (cm): 12.0
Weight (Kg): 6.8
Warranty (years): 2

Attachments

PV data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PV series pumps.

Download (1.04MB)

Models and PV performances

TYPE

three phase

PV 60

PV 81

PV 65

PV 70

PV 90

POWER
KW	HP
0.37	0.50
0.37	0.50
0.60	0.85
0.90	1.20
0.90	1.20

PERFORMANCES
Q liters/min	H meters
2 ÷ 32	43 ÷ 5
2 ÷ 17	85 ÷ 5
2 ÷ 42	58 ÷ 5
2 ÷ 45	74 ÷ 5
2 ÷ 45	100 ÷ 5

MOUTH
asp.	send.
1/2"	1/2"
3/4"	3/4"

Q	m³/hour	0	0.12	0.30	0.60	0.90	1.02	1.2	1.5	1.8	1.9	2.1	2.5	2.7
Q	l/min	0	2	5	10	15	17	20	25	30	32	35	42	45
H	meters	43	41	37.5	31.5	25.5	23	19.5	13	7.5	5
		85	75	61	38	15	5
		58	55	51	45	39	36	32.5	26	20	17.5	14	5
		74	70	65.5	58	50	47	43	35	28	25	20	9.5	5
		100	95	87	73	59.5	54	46	32	19	13	5

Construction data of the PV 55-60-81-65

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	DX53D EN 10346 galvanized steel
7.0 - Lantern	Aluminum EN-AB 46100
