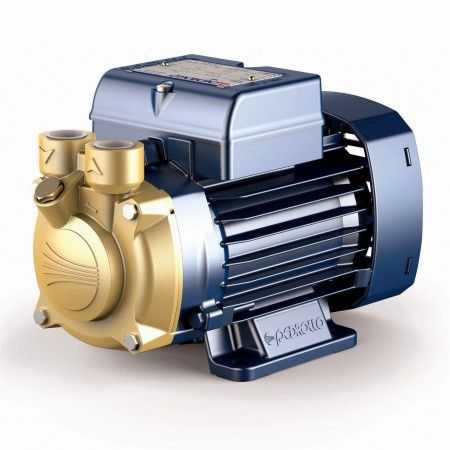

PVm 90 - 1 HP single-phase peripheral impeller electric pump

Name: PVm 90 - 1 HP single-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PVm 90
Price: 306.39 EUR
Availability: InStock

Flow rate up to 36 l/min (2.16 m³/h). Head up to 105 m. 0.75 Kw (1 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials making up the pump.

The construction features of this particularly compact brass pump are a sure guarantee against the formation of rust and oxidation; these features suggest its use in industrial fields such as cooling and air conditioning.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 6.3
Capacitor: 25 µF 450 VL
Suction mouth: 3/4"
Delivery mouth: 3/4"
Pump body: Brass
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 2
Max. flow rate (l./min.): 36
Min. head (m.): 7
Max. head (m.): 105
Jobs: air conditioning systems
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 7.1
Width (cm): 27.5
Depth (cm): 13.4
Weight (Kg): 10.0
Warranty (years): 2

Attachments

PV data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PV series pumps.

Download (1.04MB)

Models and PVm performances

TYPE

single phase

PVm 60

PVm 81

PVm 65

PVm 70

PVm 90

POWER
KW	HP
0.37	0.50
0.37	0.50
0.60	0.85
0.90	1.20
0.90	1.20

PERFORMANCES
Q liters/min	H meters
2 ÷ 32	43 ÷ 5
2 ÷ 17	85 ÷ 5
2 ÷ 42	58 ÷ 5
2 ÷ 45	74 ÷ 5
2 ÷ 35	100 ÷ 5

MOUTH
asp.	send.
1/2"	1/2"
3/4"	3/4"

Q	m³/hour	0	0.12	0.30	0.60	0.90	1.02	1.2	1.5	1.8	1.9	2.1	2.5	2.7
Q	l/min	0	2	5	10	15	17	20	25	30	32	35	42	45
H	meters	43	41	37.5	31.5	25.5	23	19.5	13	7.5	5
		85	75	61	38	15	5
		58	55	51	45	39	36	32.5	26	20	17.5	14	5
		74	70	65.5	58	50	47	43	35	28	25	20	9.5	5
		100	95	87	73	59.5	54	46	32	19	13	5

Construction data of the PV 70-90

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
