PQ 3000 - 3 HP three-phase peripheral impeller electric pump
Flow rate up to 50 l/min (3 m³/h). Head up to 180 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 26 October - Tuesday 27 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 26 October - Tuesday 27 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 26 October - Tuesday 27 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Monday 26 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 26 October - Tuesday 27 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 26 October - Tuesday 27 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 26 October - Tuesday 27 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 26 October

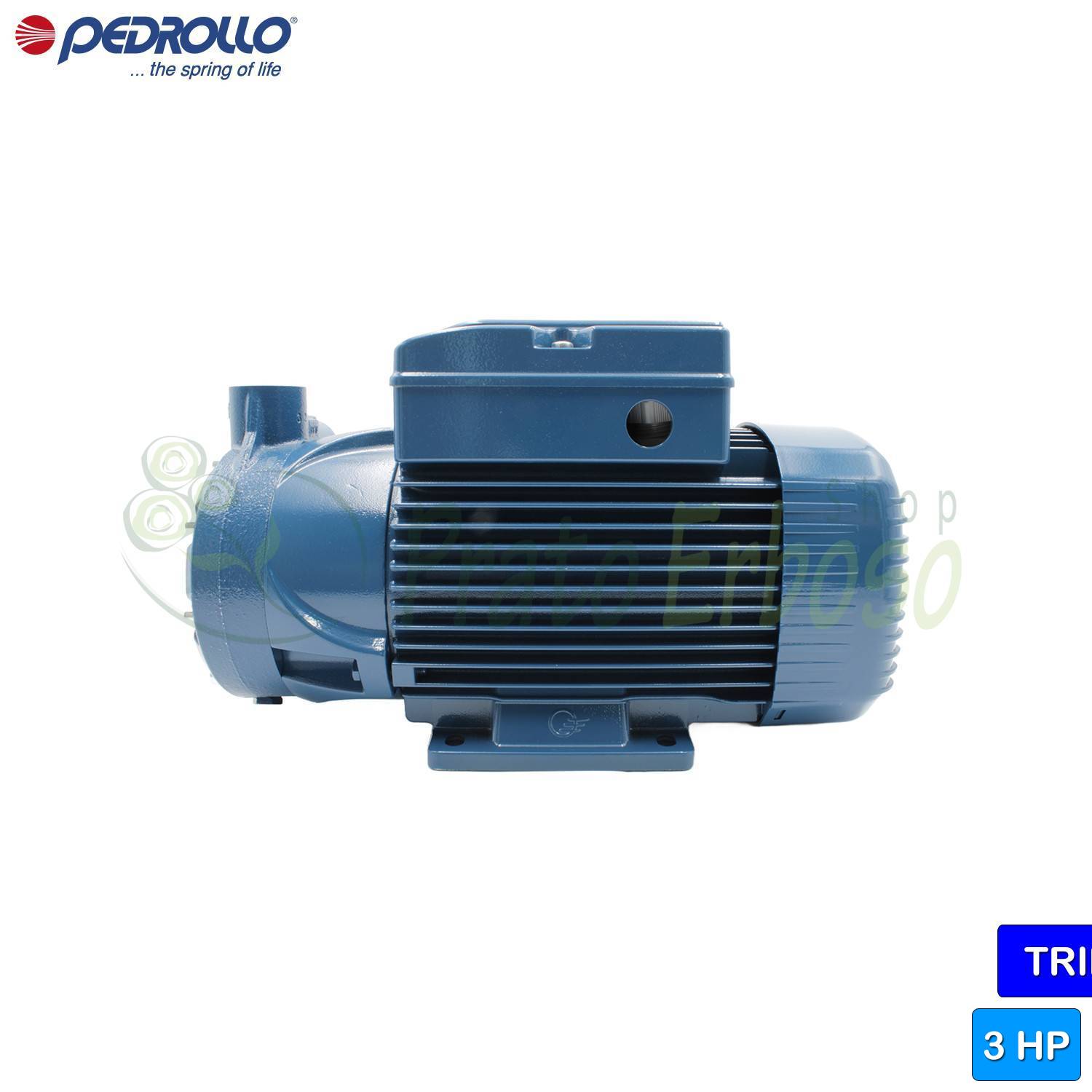

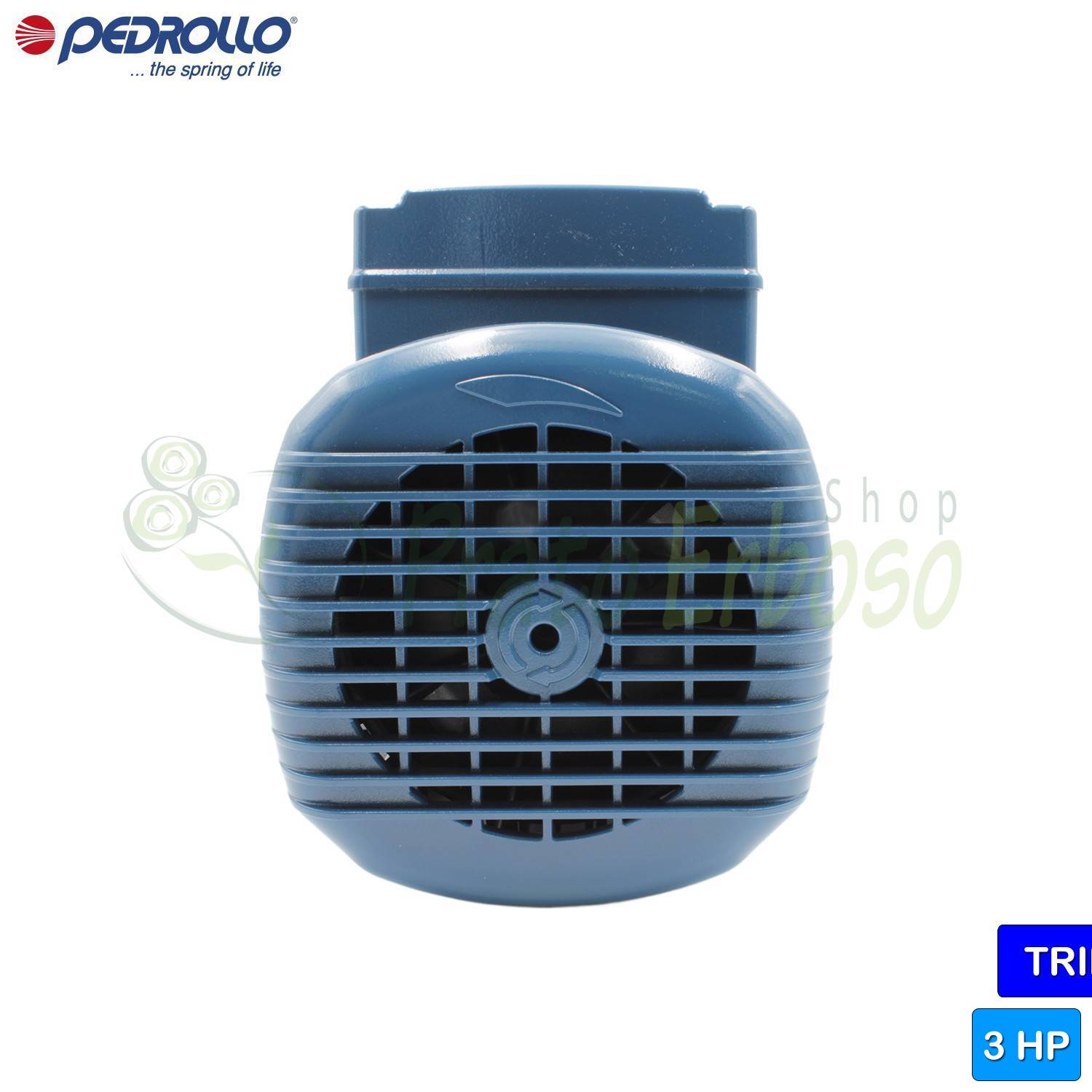

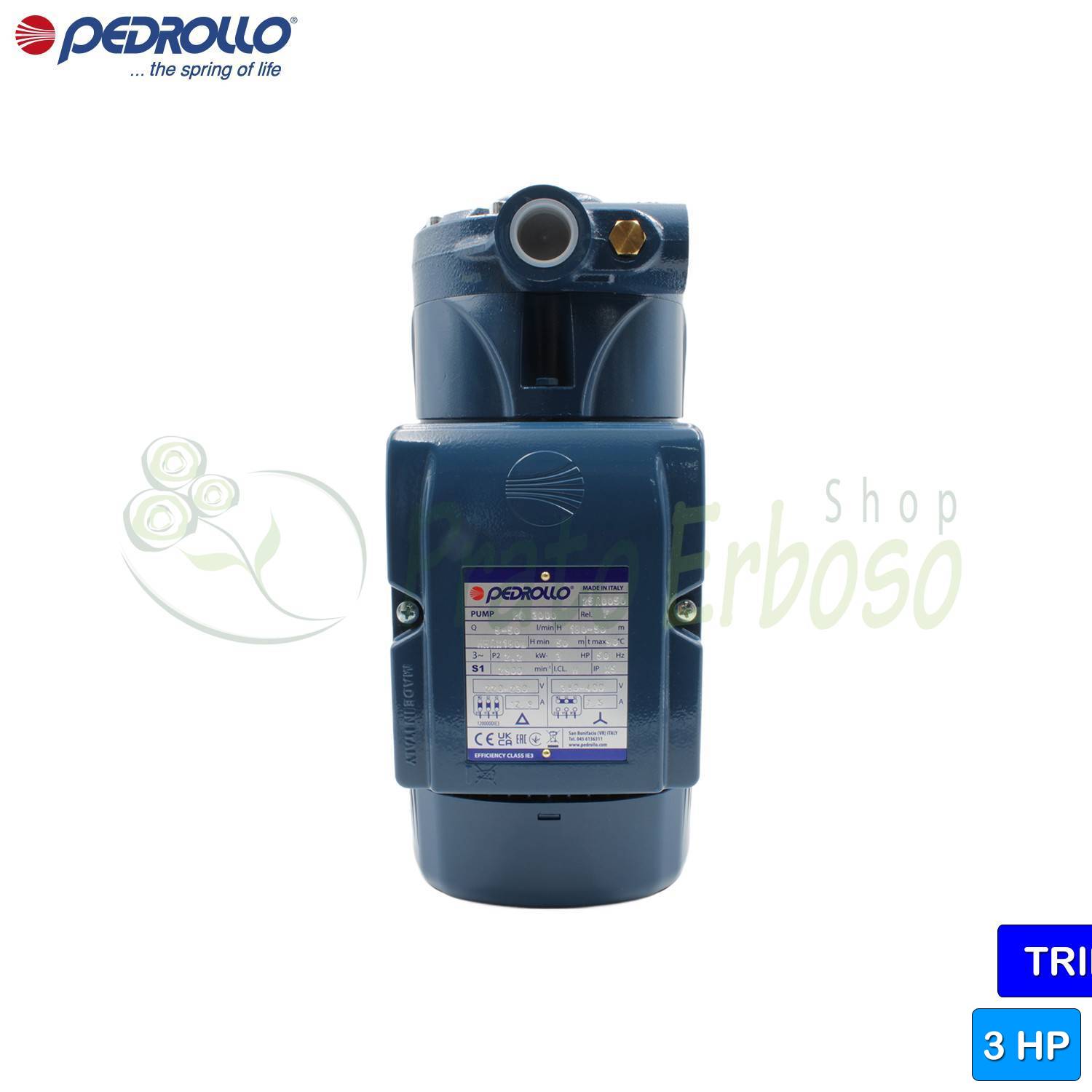

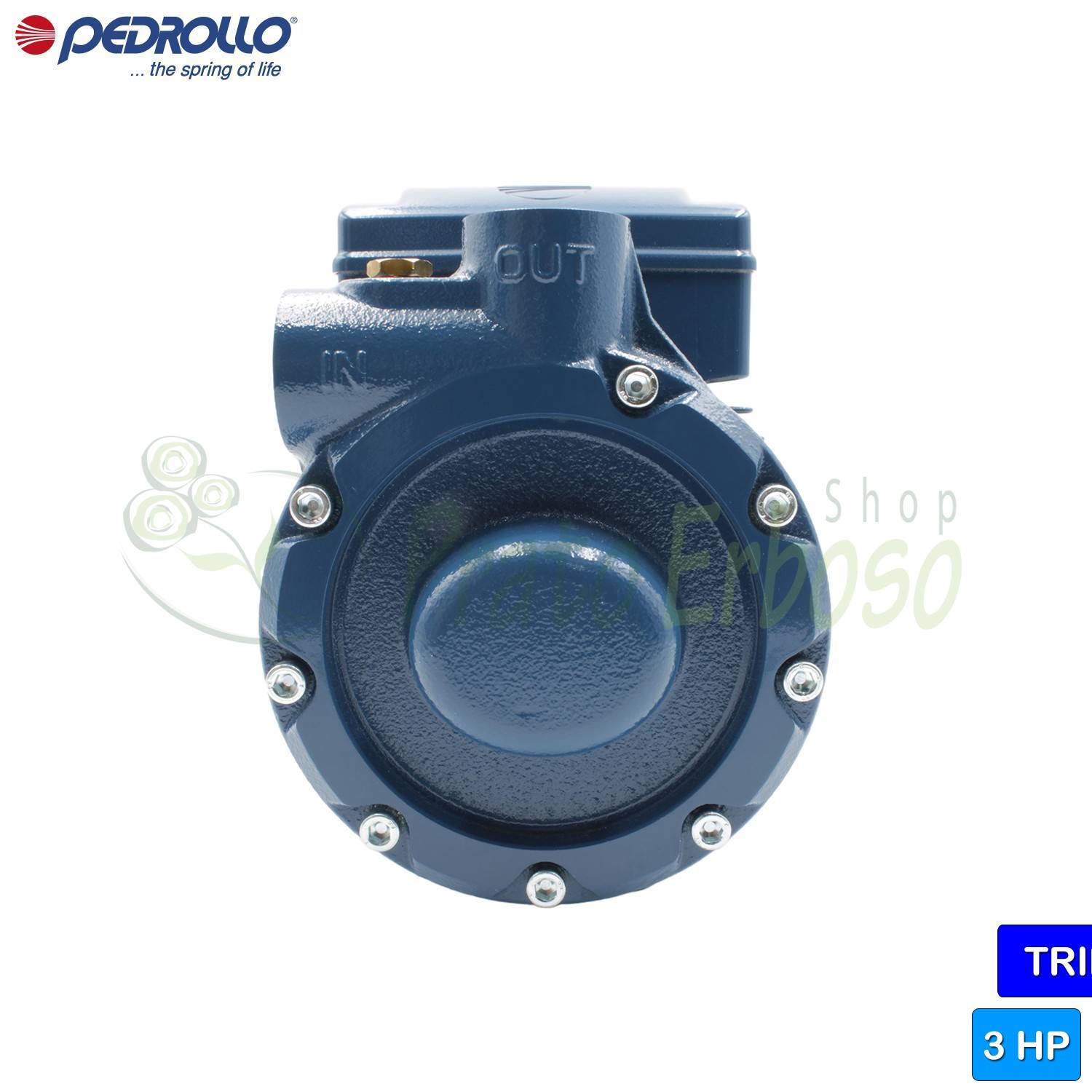

The Pedrollo PQ 3000 electric pump is recommended for industrial use.
Ideal for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
Thanks to its hydraulic characteristics, small size and compactness, the PQ 3000 allows for industrial use in very restricted areas in chillers, air conditioning, cooling or boiler power equipment.
The flow rate ranges from 5 to 50 liters per minute. The head ranges from 50 to 180 meters.
The pump's delivery and suction port is 1 inch.
The PQ 3000 must be powered by a three-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The maximum supported pressure is 18 bar . The manometric suction height is up to 8 meters.
Made of materials such as cast iron, stainless steel, aluminium, bronze, graphite and ceramic, the PQ 3000 is very robust, resistant and guarantees a long life over time.
- Jobs
- water supply
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 12.9
- Current consumption at 400V (A)
- 7.5
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 50
- Max. head (m.)
- 180
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V, 400 V
- Degree of protection
- IP 55
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
- Height (cm)
- 21.1
- Width (cm)
- 35.6
- Depth (cm)
- 15.1
- Weight (Kg)
- 19.6
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 12.9
- Current consumption at 400V (A)
- 7.5
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 50
- Max. head (m.)
- 180
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 230 V, 400 V
Safety and protection
- Degree of protection
- IP 55
Installation and connections
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
Dimensions and weight
- Height (cm)
- 21.1
- Width (cm)
- 35.6
- Depth (cm)
- 15.1
- Weight (Kg)
- 19.6
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ - C3 |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 NU |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 14401 stainless steel (AISI 316) |
| 3.0 - Impeller | Bronze CC483K EN 1982 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
