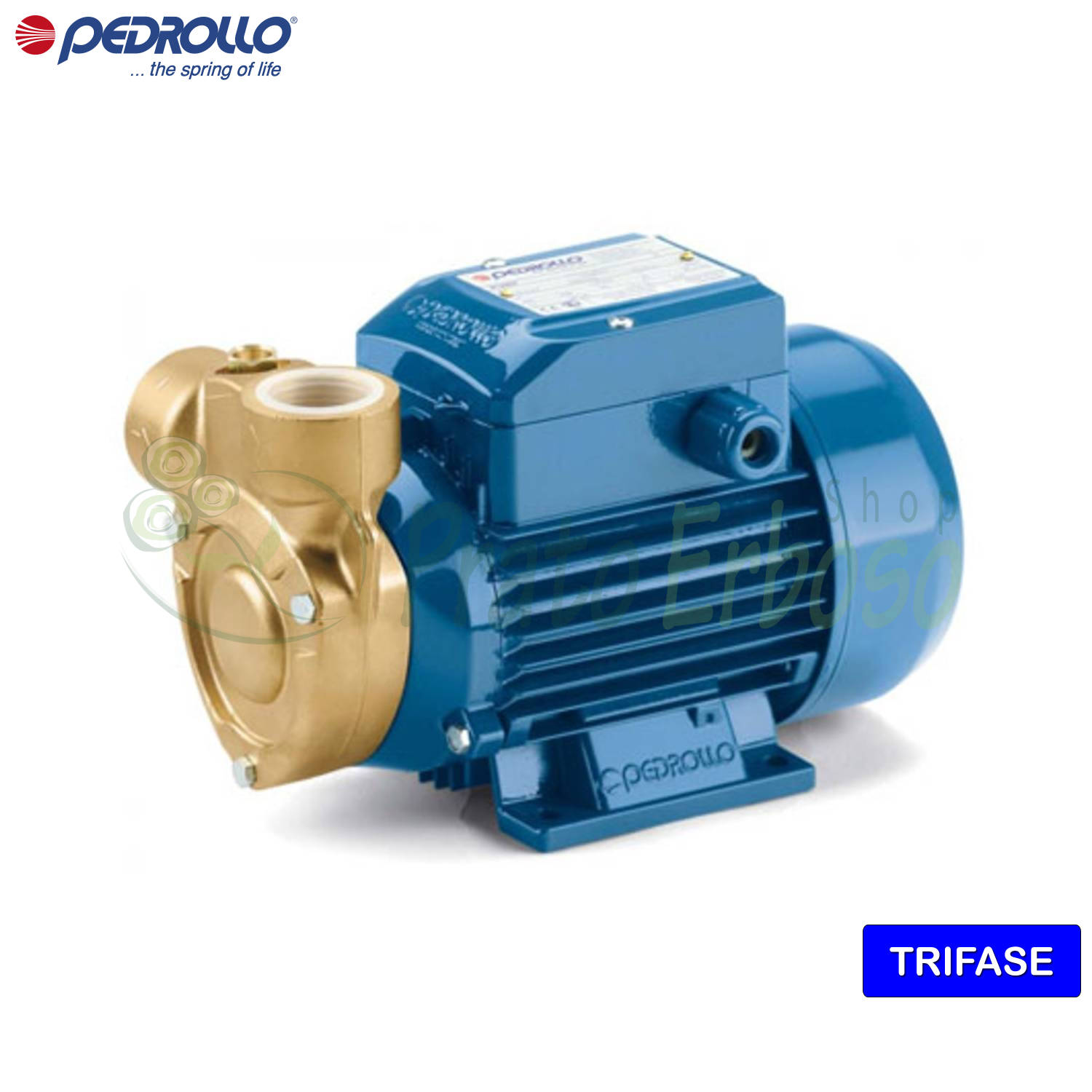

PQ 60-Bs - 0.40 HP three-phase peripheral impeller electric pump

Name: PQ 60-Bs - 0.40 HP three-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PQ 60-Bs
Price: 188.93 EUR
Availability: InStock

Flow rate up to 40 l/min (2.4 m³/h). Head up to 45.5 m. 0.30 Kw (0.40 HP) motor.

Variants:

Order it before 23:59 and receive it on Thursday 22 October with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 22 October - Friday 23 October
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 22 October - Friday 23 October
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 22 October

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo PQ 60-Bs electric pump is recommended for industrial use, unlike the PQ series which is recommended for domestic use.

Another feature that distinguishes it from the PQ series is the pump body made of brass.

The use of CW617N brass guarantees against the formation of rust and oxidation, which consequently guarantees a long life of the pump.

Thanks to its hydraulic characteristics, compactness and small size, the PQ 60-Bs allows for industrial use in chillers, air conditioning, cooling or boiler power equipment.

Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.

The flow rate ranges from 2 to 40 liters per minute. The head ranges from 5 to 45.5 meters.

The PQ 60-Bs must be powered by a three-phase voltage, has a horsepower of 0.4 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.

Data sheet

Jobs: water supply
Motor connection: THREE-PHASE
Power (Kw): 0.30
Power (HP): 0.40
Absorption at 230V (A): 2
Current consumption at 400V (A): 1.15
Pump body: Brass
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Minimum flow rate (l./min.): 2
Max. flow rate (l./min.): 40
Min. head (m.): 5
Max. head (m.): 45.5
Max. liquid temperature (°C): 90, 90
Motor voltage: 230 V, 400 V
Degree of protection: IP 44
Suction mouth: 1"
Delivery mouth: 1"
Height (cm): 14.5
Width (cm): 19.2
Depth (cm): 11.6
Weight (Kg): 5
Warranty (years): 2

Attachments

PQ-BS Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's PQ-BS series pumps.

Download (444.21KB)

Data sheet

Use and formulation of products

Jobs: water supply

Engine and mechanical performance

Motor connection: THREE-PHASE
Power (Kw): 0.30
Power (HP): 0.40
Absorption at 230V (A): 2
Current consumption at 400V (A): 1.15

Pump components and construction

Pump body: Brass
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No

Hydraulic performance and filtration

Minimum flow rate (l./min.): 2
Max. flow rate (l./min.): 40
Min. head (m.): 5
Max. head (m.): 45.5

Liquids and pumping conditions

Max. liquid temperature (°C): 90

Power supply and electrical parameters

Motor voltage: 230 V, 400 V

Safety and protection

Degree of protection: IP 44

Installation and connections

Suction mouth: 1"
Delivery mouth: 1"

Dimensions and weight

Height (cm): 14.5
Width (cm): 19.2
Depth (cm): 11.6
Weight (Kg): 5

Packaging, maintenance, and warranty

Warranty (years): 2

PQ-Bs models and performance

GUY

three-phase

PQ 60-Bs

PQ 65-Bs

PQ 81-Bs

POWER
KW	HP
0.37	0.50
0.55	0.75
0.55	0.75

PERFORMANCE
Q litres/min	H meters
2 ÷ 40	45.5 ÷ 5
2 ÷ 50	56.5 ÷ 8
1 ÷ 20	95 ÷ 10

MOUTH
wait.	send.
1"	1"
1/2"	1/2"

Q	m³/hour	0	0.12	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0
Q	l/min	0	2	10	15	20	25	30	35	40	45	50
H	meters	45.5	43	33	27.5	22.3	17.4	12.9	8.8	5
		56.5	54	44.5	39	33.5	28.5	23.8	19.4	15.3	11.5	8
		X	X	X	X	X	X	X	X	X	X	X

Construction data of the PQ 60-65-81-BS

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	DX53D EN 10346 galvanized steel
7.0 - Lantern	Aluminum EN-AB 46100
