CB2 - HT 10/3 - 2x2 HP three-phase pressure booster set
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 47 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 1 December - Tuesday 2 December |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 1 December - Tuesday 2 December |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 3 December - Monday 8 December |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 1 December - Tuesday 2 December
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 1 December - Tuesday 2 December
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 3 December - Monday 8 December
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
tomorrow

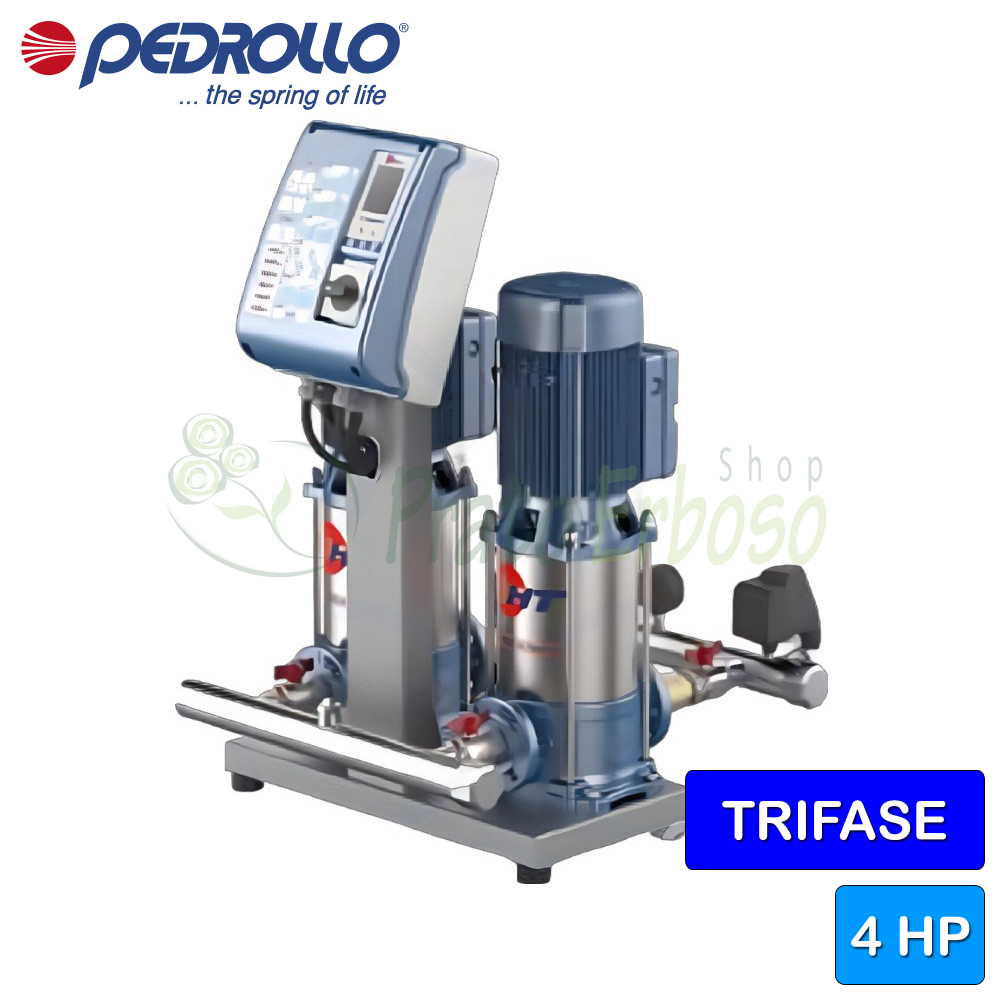

The Pedrollo CB2 - HT 10/3 pressure group is suitable for residential and commercial water supply, for irrigation and for the movement of clean water in general, including in the industrial field.
Consisting of two HT 10/3 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.
The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.
The E2 control panel provides protection against dry running.
The CB2 - HT 10/3 pressure group has a flow rate ranging from 60 to 500 litres per minute and a head from 13 to 47 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Current consumption at 400V (A)
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
Compare with Similar Products
 CB2 - HT 10/3 - 2x2 HP three-phase pressure booster setThis product 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 47 m. |  CB2 - HT 10/4 - Three-phase pressure group 2x2.5 HP2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 62 m. |  CB2 - HT 10/5 - 2x3 HP three-phase pressure booster set2 x 2 kW (2 x 3 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 77 m. |  CB2 - HT 10/6 - 2x4 HP three-phase pressure booster set2 x 3 kW (2 x 4 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 93 m. | |
|---|---|---|---|---|
| Price | Price €4,535.96 -45% €2,494.78 | Price €4,712.86 -45% €2,592.07 | Price €4,856.82 -45% €2,671.25 | Price €5,843.80 -45% €3,214.09 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 3 | Power (Kw) 3.6 | Power (Kw) 4 | Power (Kw) 6 |
| Power (HP) | Power (HP) 4 | Power (HP) 5 | Power (HP) 6 | Power (HP) 8 |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- |
| Suction mouth | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 |
| Delivery mouth | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Min. head (m.) | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- |
| Max. head (m.) | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
