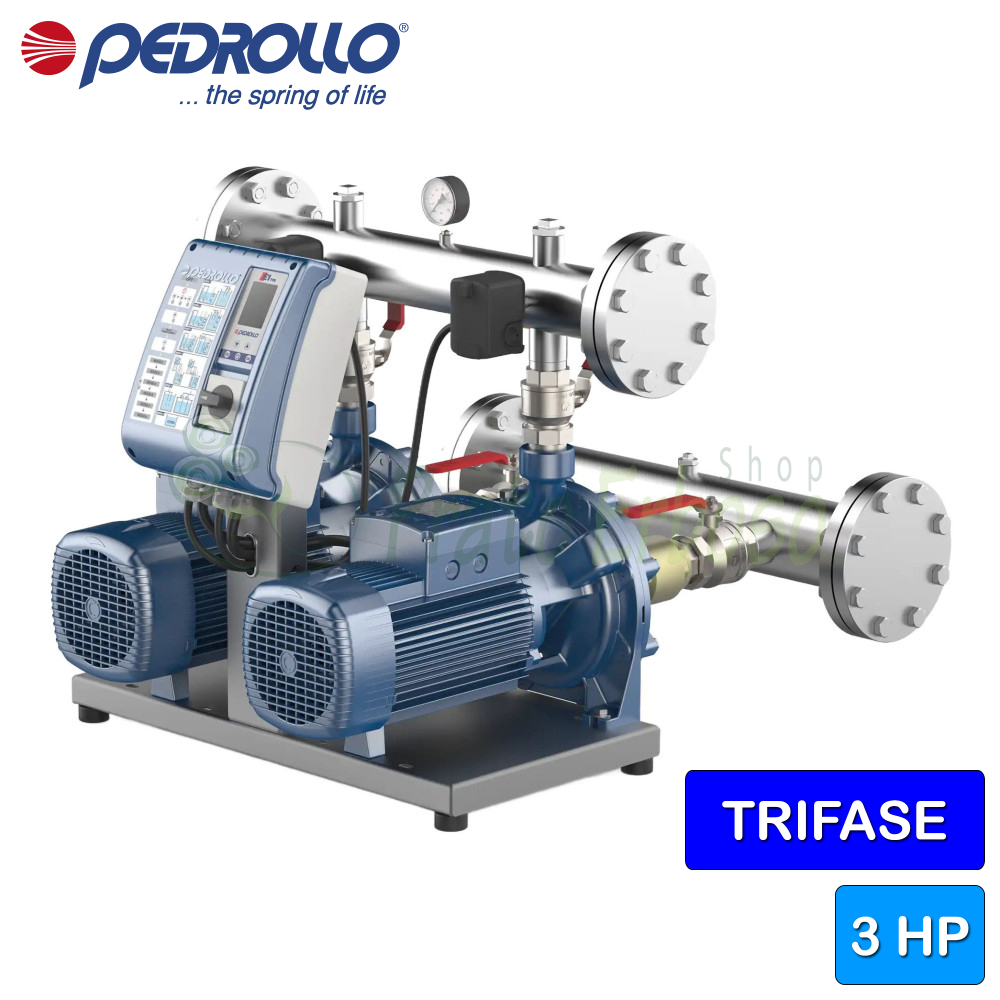

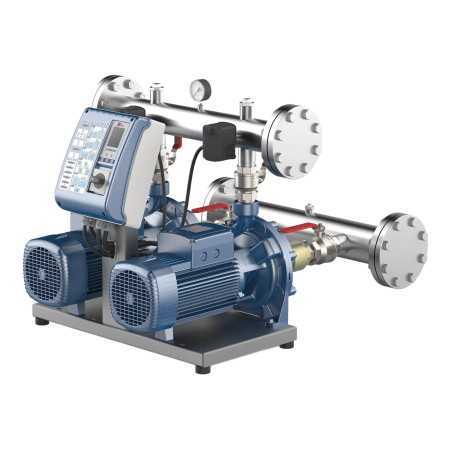

CB2 - HT 3/5 - Three-phase pressure group 2x1.5 HP

Name: CB2 - HT 3/5 - Three-phase pressure group 2x1.5 HP
Brand: Pedrollo
SKU: CB2 - HT 3/5
Price: 2177.4 EUR
Availability: InStock

2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 81 m.

€2,177.40 Tax included

€1,784.75 Tax excluded

€3,958.90 -45%

Quantity

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo CB2 - HT 3/5 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the pumps.

Recommended for residential and commercial water supply, irrigation and for the movement of clean water in general, including in industrial applications.

The CB2 - HT 3/5 unit consists of two HT 3/5 electric pumps, two pressure switches, and an E2 control panel. Two manifolds for the suction and delivery ports are also supplied.

The flow rate ranges from 10 to 180 liters per minute. The head ranges from 41 to 81 meters.

Set up so that, with each increase in user demand, one or both pumps are automatically started in succession in order to satisfy the system's water needs and reduce electricity consumption.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 2.2
Power (HP): 3
Current consumption at 400V (A): 3.5
Suction mouth: 2"
Delivery mouth: 2"
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 180
Min. head (m.): 41
Max. head (m.): 81
Height (cm): 67.4
Width (cm): 53.0
Depth (cm): 73.2
Weight (Kg): 100

Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HT 3 models and performance

Compare with Similar Products

	CB2 - HT 3/5 - Three-phase pressure group 2x1.5 HP This product 2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 81 m.	CB2 - HT 3/4 - 2x1 HP three-phase pressure group Quick View 2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 65 m.	CB2 - HT 3/6 - 2x2 HP three-phase pressure group Quick View 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 97 m.	CB2 - HT 3/7 - 2x2.5 HP three-phase pressure group Quick View 2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 113 m.
Price	Price €3,958.90 -45% €2,177.40	Price €3,869.84 -45% €2,128.41	Price €4,134.58 -45% €2,274.02	Price €4,310.26 -45% €2,370.64
Motor connection	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 2.2	Power (Kw) 1.5	Power (Kw) 3	Power (Kw) 3.6
Power (HP)	Power (HP) 3	Power (HP) 2	Power (HP) 4	Power (HP) 5
Current consumption at 400V (A)	Current consumption at 400V (A) 3.5	Current consumption at 400V (A) 6.0	Current consumption at 400V (A) 4.0	Current consumption at 400V (A) 4.8
Suction mouth	Suction mouth 2"	Suction mouth 2"	Suction mouth 2"	Suction mouth 2"
Delivery mouth	Delivery mouth 2"	Delivery mouth 2"	Delivery mouth 2"	Delivery mouth 2"
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10
Max. flow rate (l./min.)	Max. flow rate (l./min.) 180	Max. flow rate (l./min.) 180	Max. flow rate (l./min.) 180	Max. flow rate (l./min.) 180
Min. head (m.)	Min. head (m.) 41	Min. head (m.) 33	Min. head (m.) 48	Min. head (m.) 56
Max. head (m.)	Max. head (m.) 81	Max. head (m.) 65	Max. head (m.) 97	Max. head (m.) 113
Height (cm)	Height (cm) 67.4	Height (cm) 67.4	Height (cm) 85.4	Height (cm) 85.4
Width (cm)	Width (cm) 53.0	Width (cm) 53.0	Width (cm) 53.0	Width (cm) 53.0
Depth (cm)	Depth (cm) 73.2	Depth (cm) 73.2	Depth (cm) 73.2	Depth (cm) 73.2
Weight (Kg)	Weight (Kg) 100	Weight (Kg) 100	Weight (Kg) 102	Weight (Kg) 112
