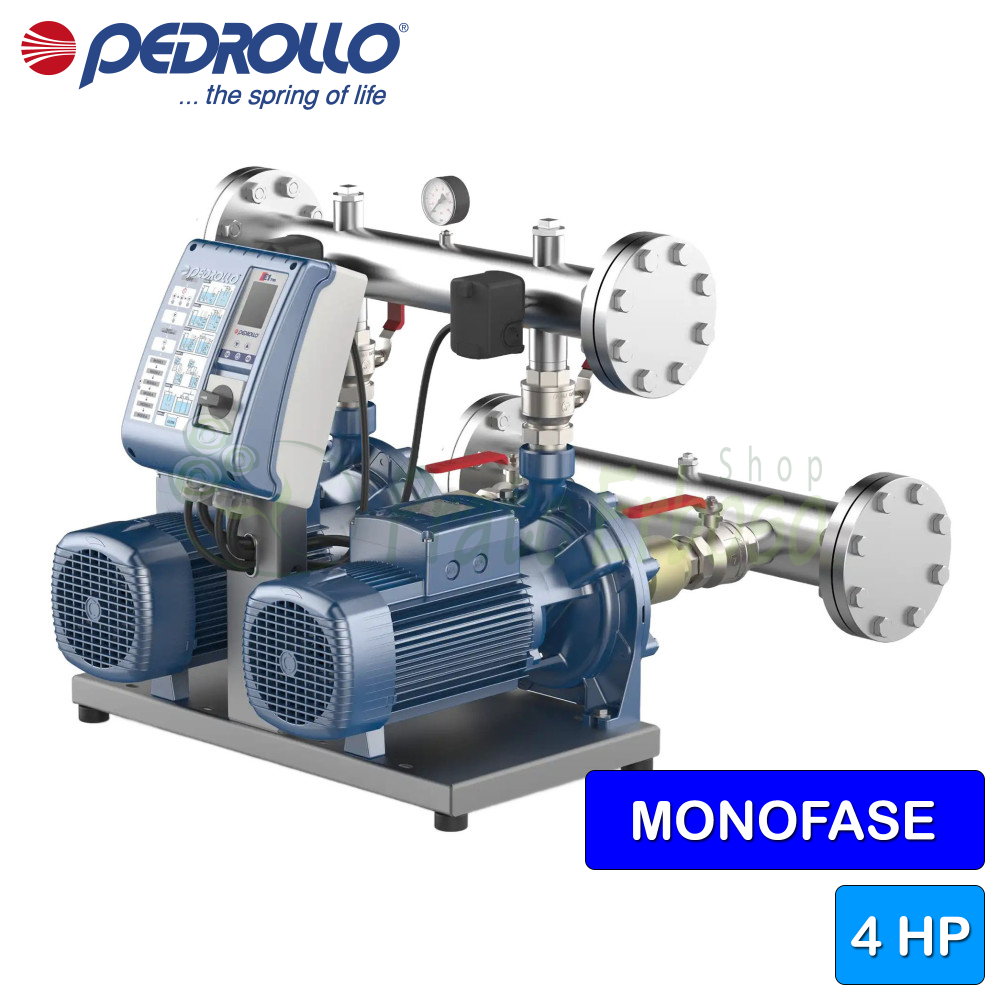

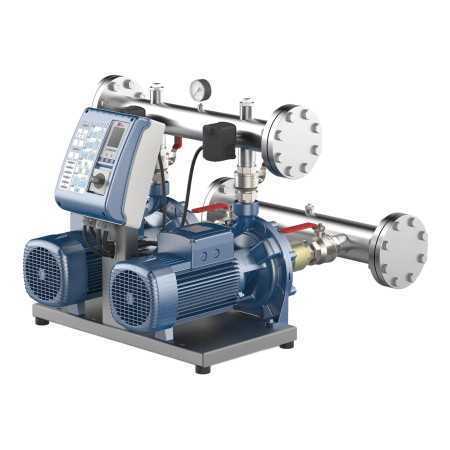

CB2 - HTm 5/4 - 2x2 HP single-phase pressure group
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 68.5 m.
The CB2 - HTm 5/4 pressure set consists of two electric pumps, two pressure switches, and an E2 control panel. Two manifolds for the suction and delivery ports are also supplied.
The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.
This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.
The CB2 - HTm 5/4 pressure group is ideal for residential and commercial water supply, for irrigation and for the movement of clean water in general, even in the industrial field.
The electrical panel provides protection against dry running.
The base is made of metal profile and equipped with adjustable anti-vibration feet.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Absorption at 230V (A)
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
