CB2 - MKm 5/7 - Single-phase pressure group 2x2.5 HP
2 SINGLE-PHASE ELECTRIC PUMPS.
Two 1.8 kW (2.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 98 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 30 March - Tuesday 31 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 30 March - Tuesday 31 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 30 March - Tuesday 31 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 1 April - Monday 6 April |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 30 March - Tuesday 31 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 30 March - Tuesday 31 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 30 March - Tuesday 31 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 1 April - Monday 6 April
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow

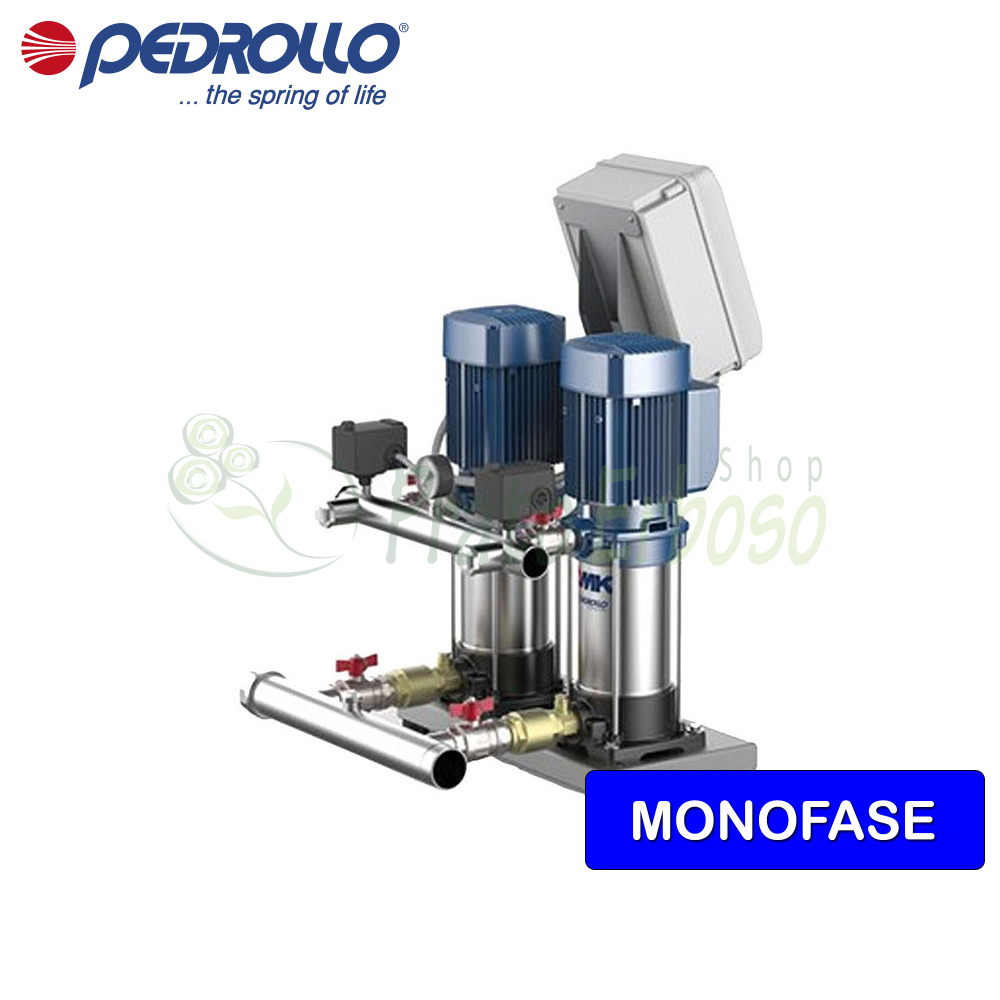

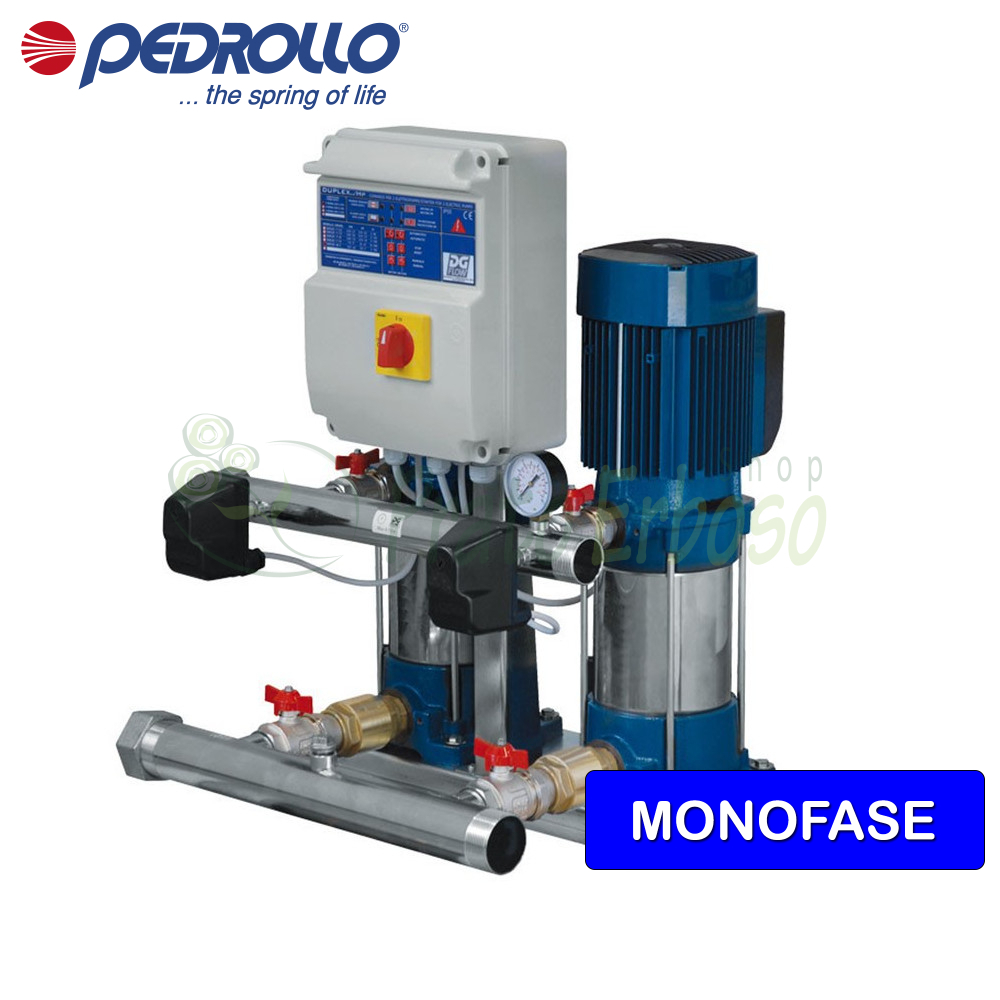

The CB2 - MKm 5/7 pressure group from the CB2-CP series by Pedrollo is made up of 2 electric pumps, a base, a pressure switch and an electrical panel.
The electric pumps are connected in parallel via suction and delivery manifolds.
The base is made of metal profile and is equipped with adjustable anti-vibration feet.
The pressure switches are connected to the control panel to turn the pumps on and off.
The electrical panel, on the other hand, guarantees protection against dry running and allows the operating parameters of the entire unit to be modified.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3.6
- Power (HP)
- 5
- Absorption at 230V (A)
- 18.6
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 30
- Max. head (m.)
- 99
- Height (cm)
- 85.4
- Width (cm)
- 53
- Depth (cm)
- 67.3
- Weight (Kg)
- 81
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 CB2 - MKm 5/7 - Single-phase pressure group 2x2.5 HPThis product 2 SINGLE-PHASE ELECTRIC PUMPS. Two 1.8 kW (2.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 98 m. |  CB2 - MKm 5/4 - Single-phase pressure group 2x1.5 HP2 SINGLE-PHASE ELECTRIC PUMPS. Two 1.1 kW (1.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 56 m. |  CB2 - MKm 5/5 - Single-phase pressure group 2x1.5 HP2 SINGLE-PHASE ELECTRIC PUMPS. Two 1.1 kW (1.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 70 m. |  CB2 - MKm 5/8 - Single-phase pressure group 2x3 HP2 SINGLE-PHASE ELECTRIC PUMPS. 2 x 2.2 kW (3 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 112 m. | |
|---|---|---|---|---|
| Price | Price €3,330.60 -45% €1,831.83 | Price €3,129.30 -45% €1,721.12 | Price €3,211.04 -45% €1,766.07 | Price €3,480.66 -45% €1,914.36 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 3.6 | Power (Kw) 2.2 | Power (Kw) -- | Power (Kw) 4.4 |
| Power (HP) | Power (HP) 5 | Power (HP) 3 | Power (HP) 3 | Power (HP) 6 |
| Absorption at 230V (A) | Absorption at 230V (A) 18.6 | Absorption at 230V (A) 13 | Absorption at 230V (A) 17 | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) 20.0 |
| Suction mouth | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 240 | Max. flow rate (l./min.) 240 | Max. flow rate (l./min.) 240 | Max. flow rate (l./min.) 240 |
| Min. head (m.) | Min. head (m.) 30 | Min. head (m.) 20 | Min. head (m.) 25 | Min. head (m.) 34 |
| Max. head (m.) | Max. head (m.) 99 | Max. head (m.) 56 | Max. head (m.) 70 | Max. head (m.) 114 |
| Height (cm) | Height (cm) 85.4 | Height (cm) 69.5 | Height (cm) 69.5 | Height (cm) 85.4 |
| Width (cm) | Width (cm) 53 | Width (cm) 53 | Width (cm) 53 | Width (cm) 53.0 |
| Depth (cm) | Depth (cm) 67.3 | Depth (cm) 86.8 | Depth (cm) 86.8 | Depth (cm) 67.3 |
| Weight (Kg) | Weight (Kg) 81 | Weight (Kg) 59 | Weight (Kg) 59 | Weight (Kg) 82 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
