CB2 - MKm 8/6 - Single-phase 2x3 HP pressure group
2 SINGLE-PHASE ELECTRIC PUMPS.
2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 86 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow

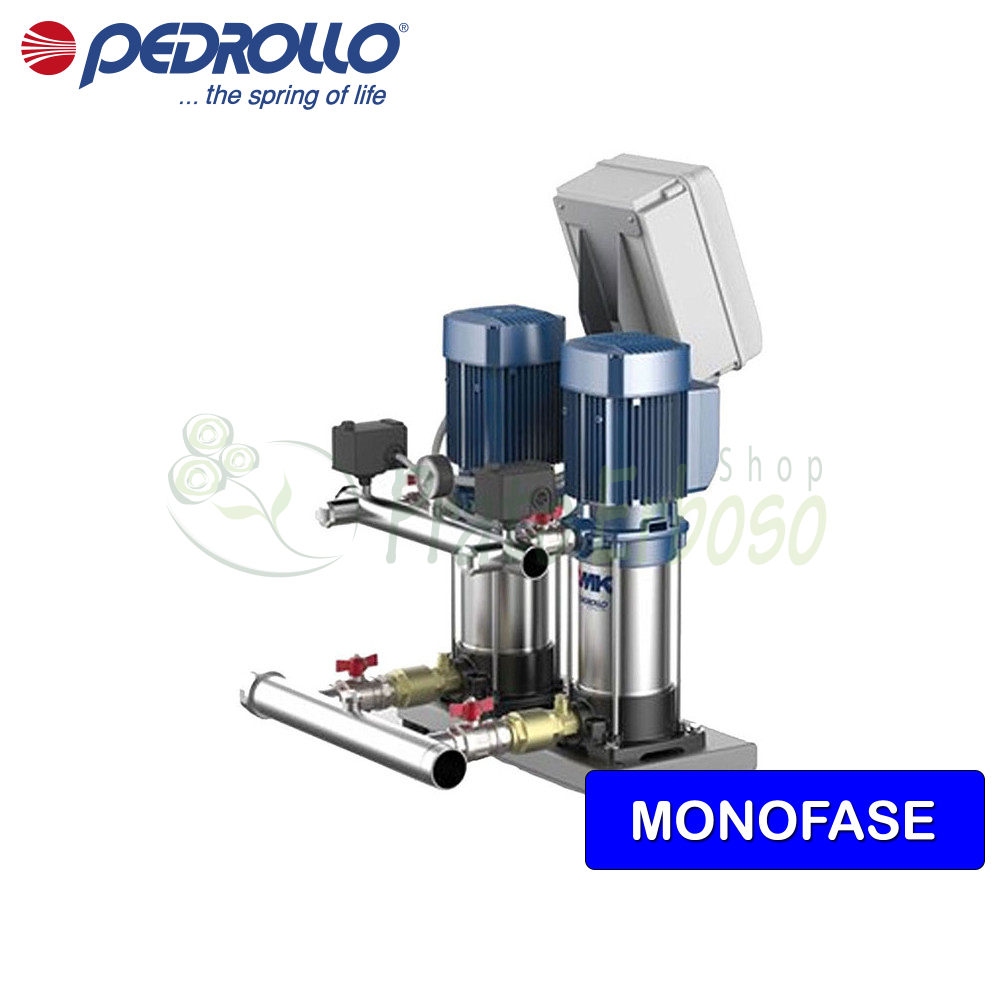

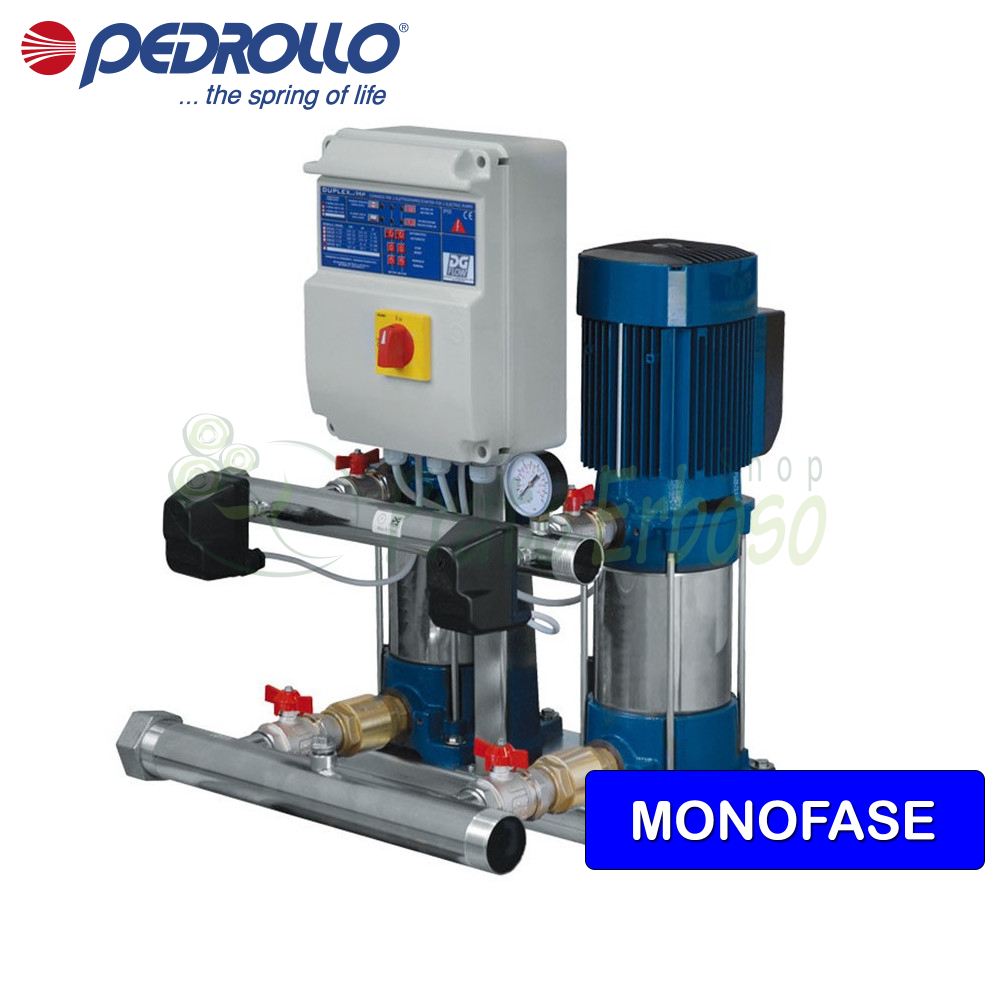

The CB2 - MKm 8/6 pressure group from the CB2-CP series by Pedrollo is a pressurization system composed of 2 electric pumps.
Set up so that one or both pumps start automatically at each increase in demand.
The electronic circuit in the control panel allows the pumps to be automatically switched at each start or stop cycle.
Suitable for residential and commercial water supply activities, irrigation of large gardens, sports fields and agricultural crops.
The CB2 - MKm 8/6 pressure group includes 2 MKm 8/6 electric pumps, a base, a pressure switch and an electronic panel.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 4.4
- Power (HP)
- 6
- Current consumption at 400V (A)
- 10
- Minimum flow rate (l./min.)
- 80
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 18.5
- Max. head (m.)
- 84
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
- Height (cm)
- 74.2
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 68
- Warranty (years)
- 2
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 4.4
- Power (HP)
- 6
- Current consumption at 400V (A)
- 10
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 80
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 18.5
- Max. head (m.)
- 84
Installation and connections
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 74.2
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 68
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 CB2 - MKm 8/6 - Single-phase 2x3 HP pressure groupThis product 2 SINGLE-PHASE ELECTRIC PUMPS. 2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 86 m. |  CB2 - MKm 8/4 - Single-phase 2x2HP pressure group 2 SINGLE-PHASE ELECTRIC PUMPS. 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 56 m. |  CB2 - MKm 8/5 - 2x2 HP single-phase pressure group 2 SINGLE-PHASE ELECTRIC PUMPS. 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 70 m. | |
|---|---|---|---|
| Price | Price €3,689.28 -45% €2,029.10 | Price €3,509.94 -45% €1,930.47 | Price €3,586.80 -45% €1,972.74 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 4.4 | Power (Kw) 3 | Power (Kw) 3 |
| Power (HP) | Power (HP) 6 | Power (HP) 4 | Power (HP) 4 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 17.0 | Absorption at 230V (A) 19.4 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 10 | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 80 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 80 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 360 | Max. flow rate (l./min.) 360 | Max. flow rate (l./min.) 360 |
| Min. head (m.) | Min. head (m.) 18.5 | Min. head (m.) 15 | Min. head (m.) 15.5 |
| Max. head (m.) | Max. head (m.) 84 | Max. head (m.) 56 | Max. head (m.) 70 |
| Suction mouth | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Height (cm) | Height (cm) 74.2 | Height (cm) 74.2 | Height (cm) 85.4 |
| Width (cm) | Width (cm) 53 | Width (cm) 53 | Width (cm) 53 |
| Depth (cm) | Depth (cm) 86.8 | Depth (cm) 86.8 | Depth (cm) 71.9 |
| Weight (Kg) | Weight (Kg) 68 | Weight (Kg) 67 | Weight (Kg) 81 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
