-45%

CB2 - 5CRm80 - 2x1 HP single-phase pressure group

Name: CB2 - 5CRm80 - 2x1 HP single-phase pressure group
Brand: Pedrollo
SKU: CB2 - 5CRm80
Price: 1361.46 EUR
Availability: InStock

2 SINGLE-PHASE ELECTRIC PUMPS.

2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 160 l/min (9.6 m³/h). Head up to 67 m.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

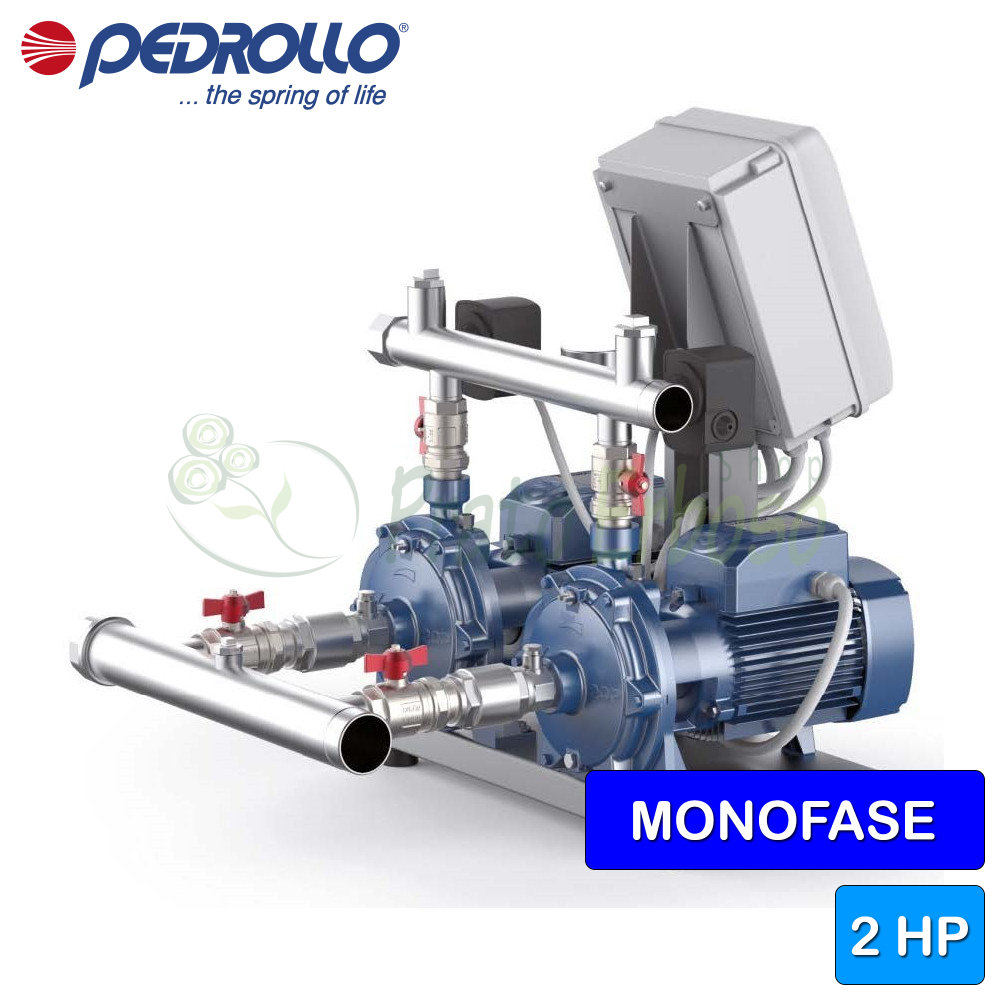

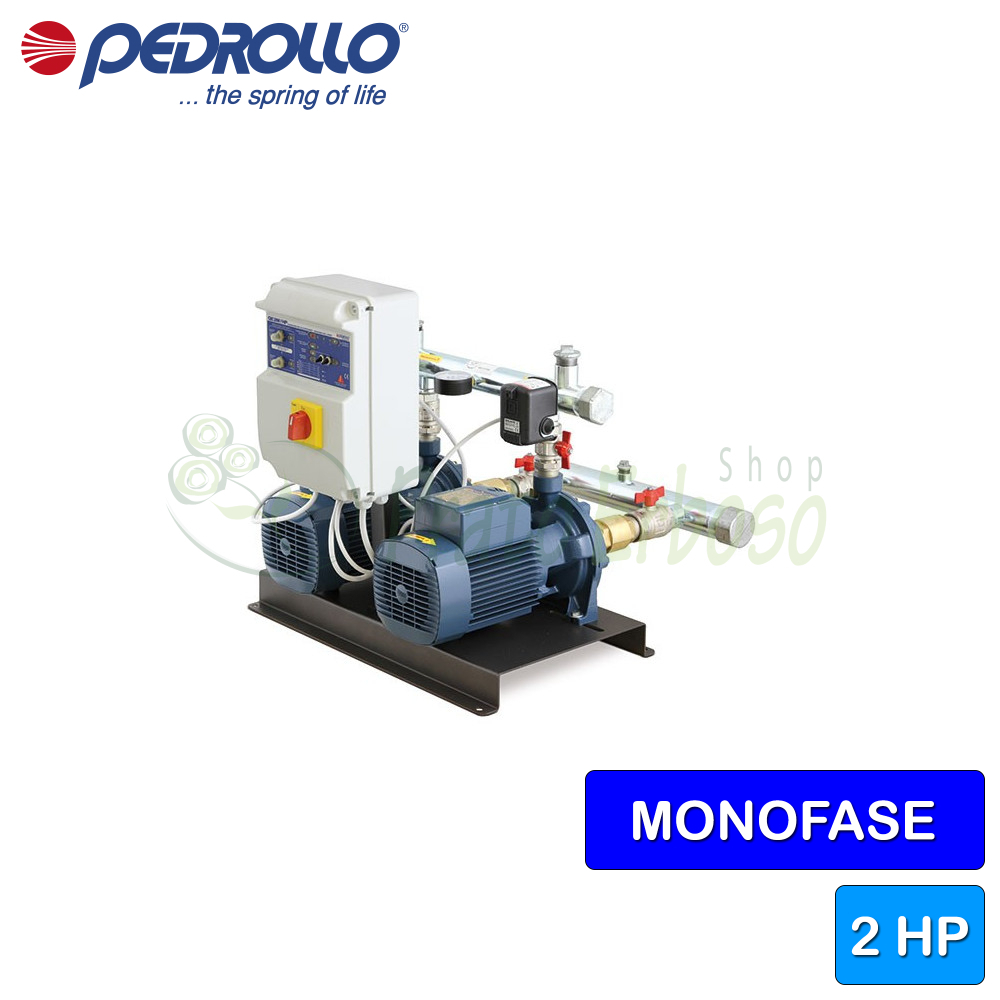

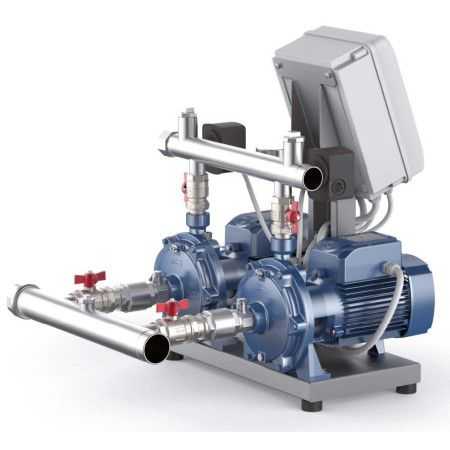

The Pedrollo CB2 - 5CRm80 pressure group is ideal for handling clean water.

The ideal sector of use is domestic and for garden irrigation.

The CB2 - 5CRm80 pressure group consists of two electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.

This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.

The base is made of metal profile and equipped with adjustable anti-vibration feet.

The electrical panel provides protection against dry running.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.5
Power (HP): 2
Absorption at 230V (A): 11.0
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 160
Min. head (m.): 12
Max. head (m.): 67
Height (cm): 67.4
Width (cm): 53
Depth (cm): 76
Weight (Kg): 53
Warranty (years): 2

Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - 4-5CRm Models and Performance

Compare with Similar Products

	CB2 - 5CRm80 - 2x1 HP single-phase pressure group This product 2 SINGLE-PHASE ELECTRIC PUMPS. 2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 160 l/min (9.6 m³/h). Head up to 67 m.	CB2 - 4CRm100 - 2x1 HP single-phase pressure group Quick View 2 SINGLE-PHASE ELECTRIC PUMPS. 2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 50 m.	CB2 - 5CRm100 - Single-phase pressure group 2x1.25 HP Quick View 2 SINGLE-PHASE ELECTRIC PUMPS. 2 x 1 kW (2 x 1.25 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 63 m.
Price	Price €2,475.38 -45% €1,361.46	Price €2,475.38 -45% €1,361.46	Price €2,594.94 -45% €1,427.22
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 1.5	Power (Kw) 1.5	Power (Kw) 2
Power (HP)	Power (HP) 2	Power (HP) 2	Power (HP) 2.5
Absorption at 230V (A)	Absorption at 230V (A) 11.0	Absorption at 230V (A) 11.6	Absorption at 230V (A) 13.6
Suction mouth	Suction mouth 1" 1/2	Suction mouth 2"	Suction mouth 2"
Delivery mouth	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10
Max. flow rate (l./min.)	Max. flow rate (l./min.) 160	Max. flow rate (l./min.) 260	Max. flow rate (l./min.) 260
Min. head (m.)	Min. head (m.) 12	Min. head (m.) 5	Min. head (m.) 8
Max. head (m.)	Max. head (m.) 67	Max. head (m.) 50	Max. head (m.) 63
Height (cm)	Height (cm) 67.4	Height (cm) 67.4	Height (cm) 67.4
Width (cm)	Width (cm) 53	Width (cm) 53	Width (cm) 53
Depth (cm)	Depth (cm) 76	Depth (cm) 80.3	Depth (cm) 80.3
Weight (Kg)	Weight (Kg) 53	Weight (Kg) 54	Weight (Kg) 56
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
