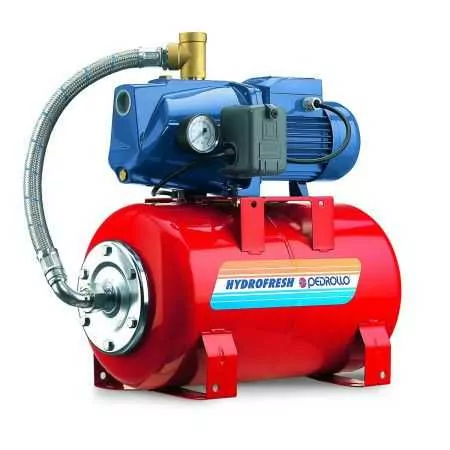

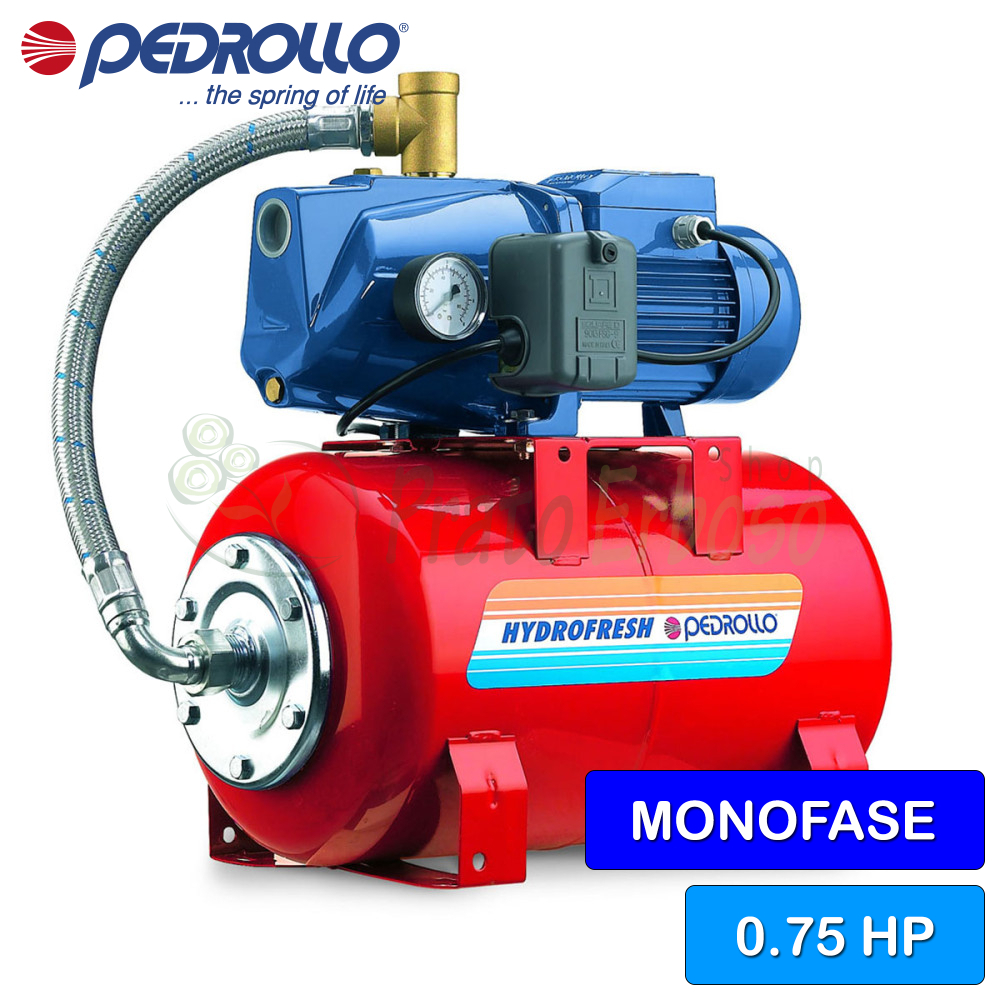

FUTUREJETm 1A - 24 CL - 0.75 HP autoclave unit
Flow rate up to 60 l/min. Head up to 48 meters. 0.55 kW (0.75 HP) motor. With 24-liter horizontal cylindrical expansion tank.
The FUTURE JETm 1A - 24 CL pressure group from the Hydrofresh series by Pedrollo is the ideal solution for domestic pressurization.
Ideal for domestic installations for water supply activities or for irrigation of gardens and vegetable gardens.
Equipped with a 24-litre expansion vessel.
The FUTURE JETm 1A - 24 CL pressure group combines an expansion vessel and a pressure switch that allows the electric pump to be started or stopped automatically.
In addition to a FUTURE JETm 1A, the expansion vessel and the pressure switch, Pedrollo also supplies a pressure gauge, a flexible hose, a brass fitting and a 1.5 metre cable with a Schuko plug.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.9
- Capacitor
- 14 µF 450 VL
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 60
- Min. head (m.)
- 17
- Max. head (m.)
- 48
- Height (cm)
- 52
- Width (cm)
- 53.5
- Depth (cm)
- 25.5
- Weight (Kg)
- 18.6
- Warranty (years)
- 2
Reviews (2) - Review moderation
arrivato tutto in modo perfetto
Prodotto ottimamente imballato, già montato e pronto all'uso. Spedizione veloce.
Compare with Similar Products
 FUTUREJETm 1A - 24 CL - 0.75 HP autoclave unitThis product Flow rate up to 60 l/min. Head up to 48 meters. 0.55 kW (0.75 HP) motor. With 24-liter horizontal cylindrical expansion tank. |  FUTUREJETm 2C - 24 CL - 1 HP autoclave unit Flow rate up to 70 l/min. Head up to 47 meters. 0.75 kW (1 HP) motor. With 24-liter horizontal cylindrical expansion vessel. | |
|---|---|---|
| Price | Price €464.82 -42% €269.60 | Price €477.02 -42% €276.67 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.9 | Absorption at 230V (A) 4.7 |
| Capacitor | Capacitor 14 µF 450 VL | Capacitor 20 µF 450 VL |
| Suction mouth | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Technopolymer | Impeller Technopolymer |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 60 | Max. flow rate (l./min.) 70 |
| Min. head (m.) | Min. head (m.) 17 | Min. head (m.) 20 |
| Max. head (m.) | Max. head (m.) 48 | Max. head (m.) 50 |
| Height (cm) | Height (cm) 52 | Height (cm) 53.0 |
| Width (cm) | Width (cm) 53.5 | Width (cm) 53.5 |
| Depth (cm) | Depth (cm) 25.5 | Depth (cm) 25.5 |
| Weight (Kg) | Weight (Kg) 18.6 | Weight (Kg) 20.9 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
