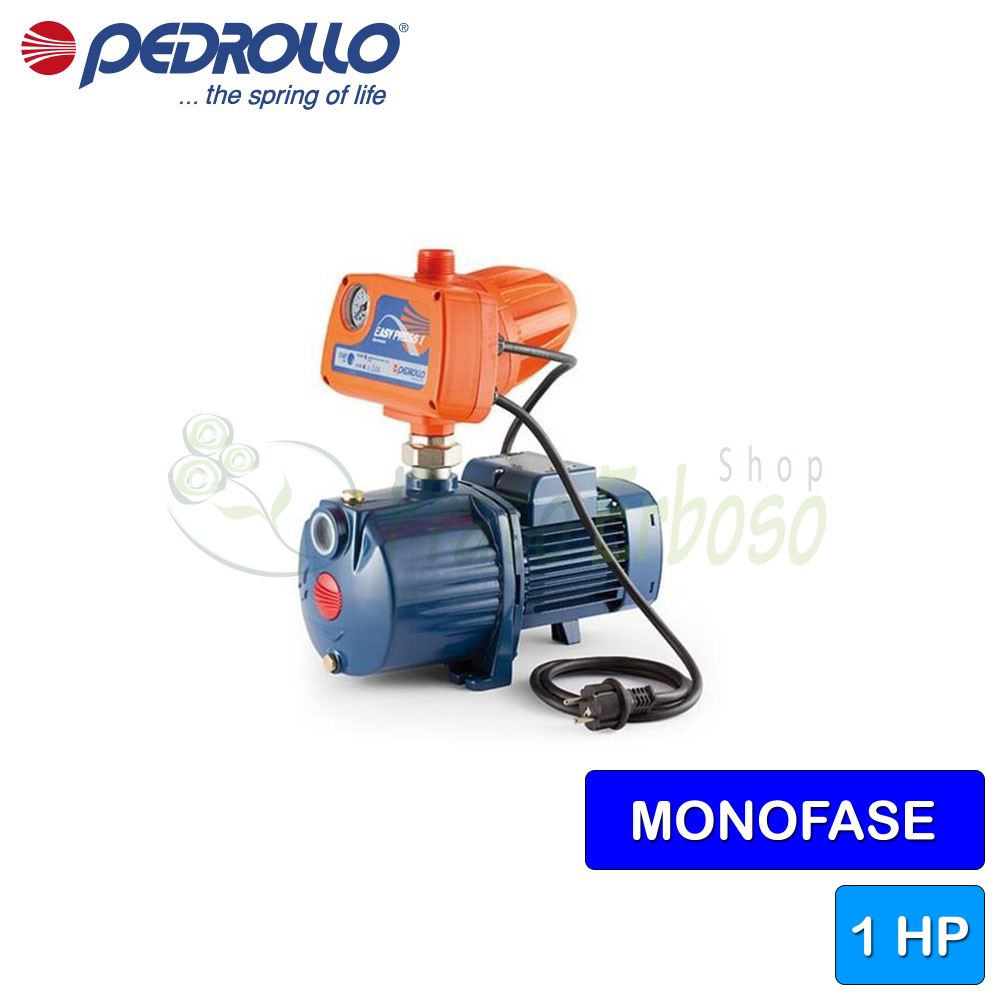

4CPm 100 - EP - 1 HP single-phase pressure group
Flow rate up to 130 l/min (7.8 m³/h). Head up to 46 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
Description

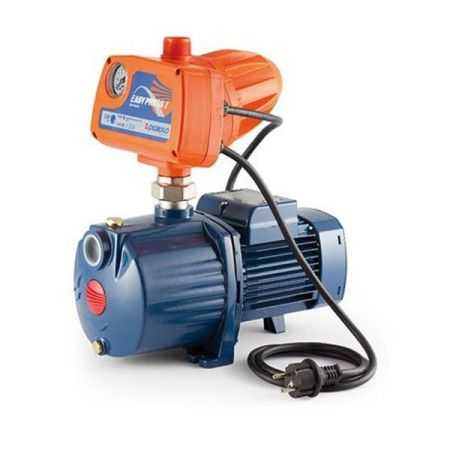

4CPm 100-C single-phase multi-impeller electric pump complete with EASYPRESS-1 electronic regulator with pressure gauge programmed to start and stop the pump when the tap is opened and closed. Equipped with a GSR quick-connect coupling and a 1.5-meter cable with a Schuko plug.
In case of water shortage, the electronic pressure regulator ensures that the pump stops.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 5
- Max. head (m.)
- 50
- Jobs
- domestic, irrigation
- Warranty (years)
- 2
Compare with Similar Products
4CPm 100 - EP - 1 HP single-phase pressure groupThis product Flow rate up to 130 l/min (7.8 m³/h). Head up to 46 m. 0.75 Kw (1 HP) motor. |
3CPm 80 - EP - 0.60 HP single-phase pressure groupFlow rate up to 80 l/min (4.8 m³/h). Head up to 38 m. 0.45 Kw (0.60 HP) motor. |
4CPm 80 - EP - 0.75 HP single-phase pressure groupFlow rate up to 80 l/min (4.8 m³/h). Head up to 50 m. 0.55 Kw (0.75 HP) motor. |
|
|---|---|---|---|
| Price |
Price
€538.02
-42%
€312.05
|
Price
€461.16
-42%
€267.47
|
Price
€494.10
-42%
€286.58
|
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.45 | Power (Kw) 0.55 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.60 | Power (HP) 0.75 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 3.4 | Absorption at 230V (A) 4.1 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 | Min. head (m.) 10 |
| Max. head (m.) | Max. head (m.) 50 | Max. head (m.) 40 | Max. head (m.) 52 |
| Jobs | Jobs domestic, irrigation | Jobs domestic, irrigation | Jobs domestic, irrigation |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
