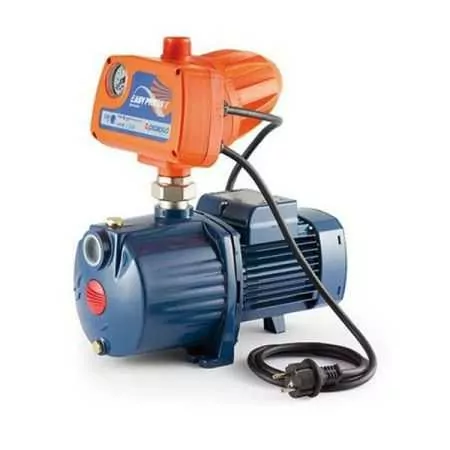

4CPm 100 - EP 1 - pressure Group, single-phase 1 HP
Flow rate up to 130 l/min (7.8 m3/h). Head up to 46 m. Motor 0.75 Kw (1 HP).
Electric pump multigirante single-phase 4CPm 100-C full electronic control EASYPRESS-1 with a pressure gauge programmed for the starting and stopping of the pump, the opening and closing of the faucet.
Equipped with coupling for quick connection GSR cable 1.5 metres with schuko plug.
In the case of lack of water and the electronic pressure regulator ensures the stopping of the pump.
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 6.0
- Suction mouth
- 1 "
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 4
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 5
- Max flow (l./min.)
- 130
- Min head (m.)
- 5
- Max head (m.)
- 50
- Guarantee
- 2
Compare with Similar Products
 4CPm 100 - EP 1 - pressure Group, single-phase 1 HPThis product Flow rate up to 130 l/min (7.8 m3/h). Head up to 46 m. Motor 0.75 Kw (1 HP). |  3CPm 80 - EP 1 - Group pressure, single phase, 0.6 HPFlow rate up to 80 l/min (4.8 m3/h). Head up to 38 m. Motor 0.45 Kw (0.60 HP). |  4CPm 80 - EP 1 - pressure Group, single-phase 0.75 HPFlow rate up to 80 l/min (4.8 m3/h). Head up to 50 m. Motor 0.55 Kw (0.75 HP). | |
|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (HP) | Power (HP) 1 | Power (HP) 0.60 | Power (HP) 0.75 |
| Absorption at 230V (A) | Absorption at 230V (A) 6.0 | Absorption at 230V (A) 3.4 | Absorption at 230V (A) 4.1 |
| Suction mouth | Suction mouth 1 " | Suction mouth 1 " | Suction mouth 1 " |
| Delivery port | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " |
| Body Pump | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 4 | Number of impellers 3 | Number of impellers 4 |
| Motor shaft | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve no | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 |
| Max flow (l./min.) | Max flow (l./min.) 130 | Max flow (l./min.) 80 | Max flow (l./min.) 80 |
| Min head (m.) | Min head (m.) 5 | Min head (m.) 5 | Min head (m.) 10 |
| Max head (m.) | Max head (m.) 50 | Max head (m.) 40 | Max head (m.) 52 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 |
