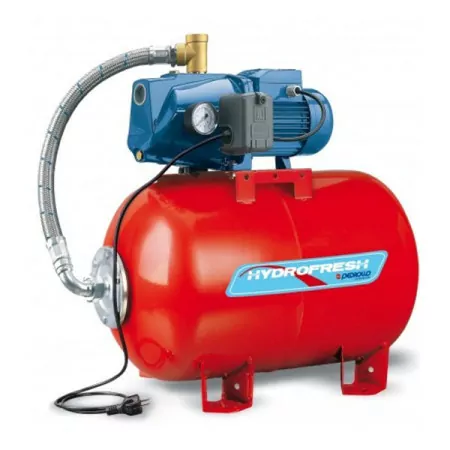

FUTUREJETm 2C-ST-60 CL - 1 HP Autoclave Unit
Flow rate up to 110 l/min. Head up to 50 meters. 0.75 kW (1 HP) motor. With 60-liter horizontal cylindrical expansion vessel.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
Small, automatic pressure tank with 60-litre spherical expansion vessel, suitable for the distribution of pressurised water for domestic use.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 6
- Capacitor
- 25 µF 450 VL
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 110
- Min. head (m.)
- 28
- Max. head (m.)
- 58
- Height (cm)
- 67.5
- Width (cm)
- 73
- Depth (cm)
- 34
- Weight (Kg)
- 29.3
- Warranty (years)
- 2
Compare with Similar Products
 FUTUREJETm 2C-ST-60 CL - 1 HP Autoclave UnitThis product Flow rate up to 110 l/min. Head up to 50 meters. 0.75 kW (1 HP) motor. With 60-liter horizontal cylindrical expansion vessel. |  FUTUREJETm 1A - 60 CL - 0.75 HP autoclave unitFlow rate up to 90 l/min. Head up to 47 meters. 0.55 kW (0.75 HP) motor. With 60-liter horizontal cylindrical expansion tank. | |
|---|---|---|
| Price | Price €695.40 -42% €403.33 | Price €638.06 -42% €370.07 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 |
| Absorption at 230V (A) | Absorption at 230V (A) 6 | Absorption at 230V (A) 4.7 |
| Capacitor | Capacitor 25 µF 450 VL | Capacitor 20 µF 450 VL |
| Suction mouth | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Technopolymer | Impeller Technopolymer |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 110 | Max. flow rate (l./min.) 90 |
| Min. head (m.) | Min. head (m.) 28 | Min. head (m.) 20 |
| Max. head (m.) | Max. head (m.) 58 | Max. head (m.) 50 |
| Height (cm) | Height (cm) 67.5 | Height (cm) 67.5 |
| Width (cm) | Width (cm) 73 | Width (cm) 73 |
| Depth (cm) | Depth (cm) 34 | Depth (cm) 34 |
| Weight (Kg) | Weight (Kg) 29.3 | Weight (Kg) 28.1 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
