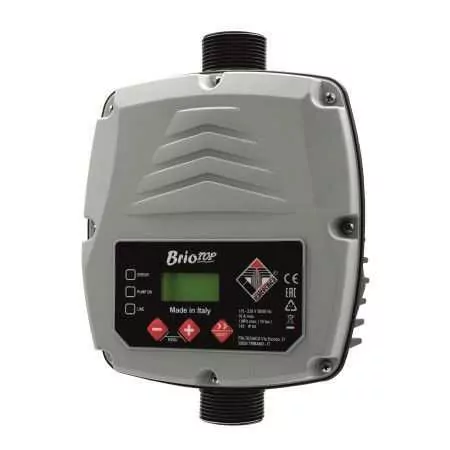

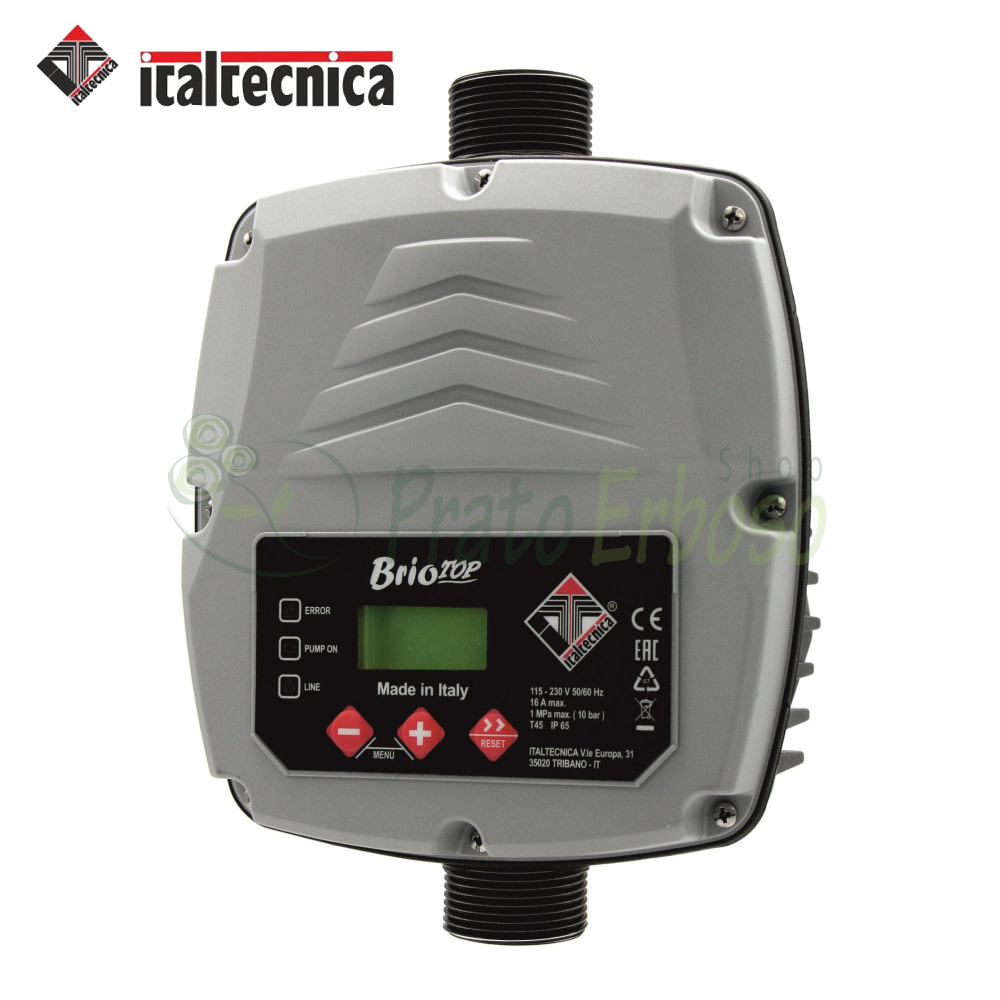

Brio Top 2.0 - 1 1/4" Electronic Pressure Regulator

With 1 1/4" M connection. With pressure gauge. With auto-reset. For pumps up to 3 HP.

€109.85 Tax included

€90.04 Tax excluded

There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

Brio Top 2.0 - 1 1/4" Electronic Pressure Regulator
  • Use dot instead of comma

Loading

Description

The Brio automatically controls the starting and stopping of single-phase electric pumps.

It completely replaces the traditional system consisting of a pressure switch and expansion vessel or can be used as a digital pressure switch with two pressure thresholds.

It starts the electric pump following a decrease in pressure and stops it when the flow of liquid stops at the maximum pressure of the electric pump or when the set stop pressure is reached.

The device has several functions: it protects against dry running in the event of a lack of water in the suction area, it allows automatic resetting in the event of a stop due to dry running, which can autonomously resolve the error condition, the amperometric protection of the motor which intervenes in overload conditions or with a blocked rotor, the anti-ice protection starts the pump when the ambient temperature drops below 4°C, the anti-rotor blocking function is useful for avoiding the stoppage of the mechanical parts during long periods of inactivity of the pump and the overpressure protection which can stop the electric pump at a set threshold value.

It can be installed in any vertical or horizontal position respecting the direction of flow.

Also supplied is a 3x1mmH07 R-NF cable with Schuko plug and socket.

Data sheet
B2.00M4.1U.00
7 Items
Restart pressure ( bar )
8
Line power supply
single phase
Supply voltage (Volts)
230
Line Current (Ampere)
16 A
Engine power supply
single phase
Motor voltage
230 V
Motor Phase Current (Ampere)
16 A
Dry running protection
Yes
Attack size
1 1/4 "
Type of attack
male
Attachments

Brio Top 2.0 brochure

Brio Top 2.0 digital flow switch brochure

file_download Download (1.07MB)
