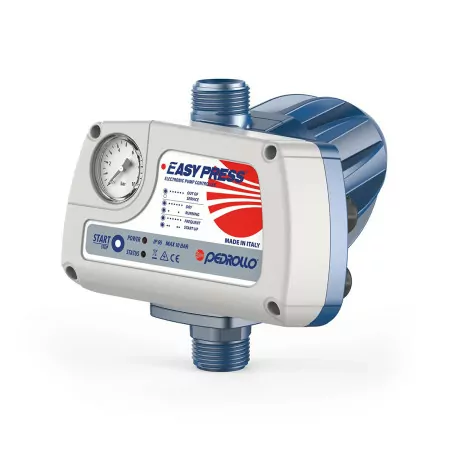

EASYPRESS-RED - Electronic pressure regulator with manometer
Restart pressure: 2.2 bar. With pressure gauge. With automatic reset. For pumps up to 2 HP.
The Pedrollo easypress is a robust and reliable electronic device for the control and protection of single-phase domestic electric pumps with power up to 2 HP.
This pressure regulator is ideal for starting, opening the tap, and stopping, when the tap is closed, electric tap pumps.
The easypress is composed of a pressure sensor and a flow sensor, connected to an electronic system, which start the electric pump when, upon opening a tap, the system pressure drops below the restart pressure and stops it when the flow rate drops to zero or below 2 litres per minute.
The use of microprocessor logic protects the pump from dry running by automatically or manually resetting it.
Furthermore, the electric pump starts too frequently due to small leaks in the system.
The restart pressure of the red version is 2.2 bar.
- Restart pressure (bar)
- 2.2
- Liquid temperature max. (° C)
- 50
- Line current
- 16 A
- Height (cm)
- 17.7
- Width (cm)
- 17.5
- Depth (cm)
- 22.1
- Attack size
- 1 "
- Weight kg)
- 0.7
- Type of attack
- male
