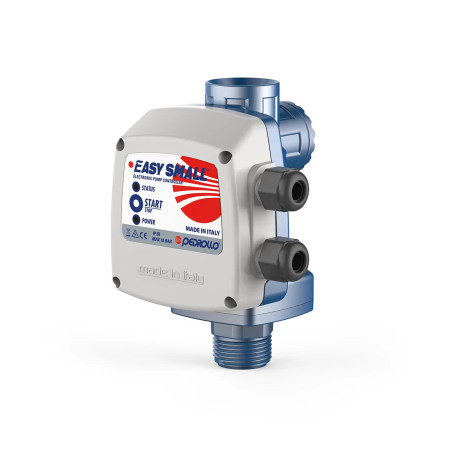

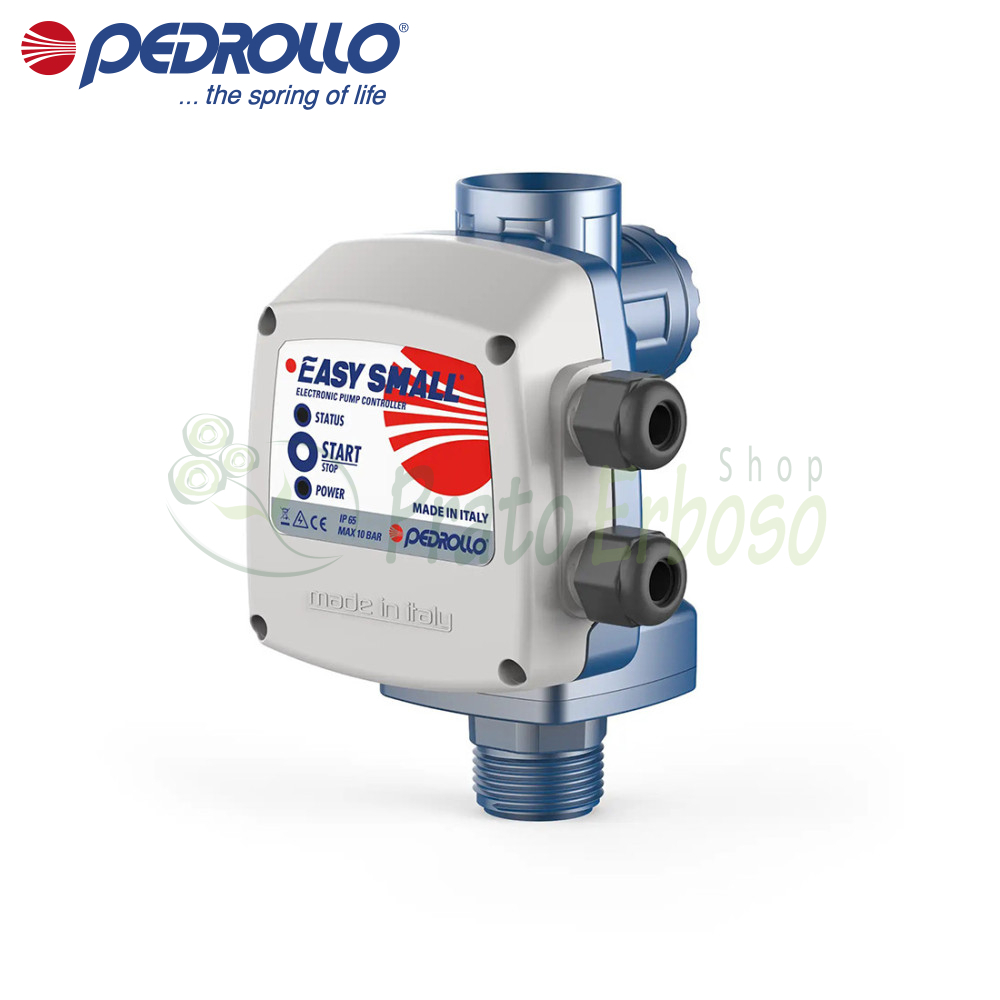

EASYSMALL - Electronic pressure regulator
For pumps up to 1.5 HP. Without pressure gauge. With auto-reset.
The EASYSMALL by Pedrollo is a compact and economical electronic control and protection device for single-phase domestic electric pumps, with power up to 1.5 HP.
It consists of two parts: a pressure sensor and a flow sensor. These two components, connected to an electronic system, start the electric pump when, upon opening a tap, the system pressure drops below the restart pressure and stop it when the flow rate drops to zero or below 2 liters per minute.
It has two delivery ports that allow it to adapt to the existing system and to equip the system with a small expansion vessel to ensure better operation.
The EASYSMALL is equipped with a pressure gauge that allows you to easily monitor system pressure. It has a built-in check valve.
- Power (HP)
- 1.5
- Degree of protection
- IP 65
- Max. flow rate (l./min.)
- Max. working pressure (bar)
- Restart pressure (bar)
- 1.5
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- 50
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 16 A
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Dry running protection
- No
- Height (cm)
- 17.7
- Attack size
- 1 "
- Weight (Kg)
- 0.7
- Warranty (years)
- 2
- Type of attack
- male
