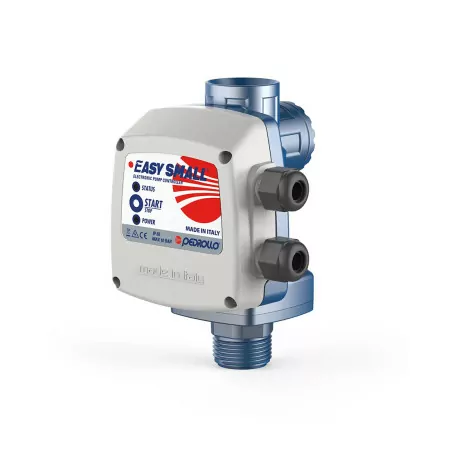

EASYSMALL - Electronic pressure regulator
For pumps up to 2 HP.. With 1" M connection. Without pressure gauge. With autoreset.
Order it before 25 minutes and receive it between 30-12-2024 and 31-12-2024 with SDA - 2 giorni Italia
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The easysmall is a pressure flow switch for the control and protection of single-phase pumps up to 2 HP for domestic use.
This pressure flow switch starts the electric pump on which it is installed following a drop in system pressure and stops it when the flow drops below 2 liters per minute.
Data sheet
- Power (Kw)
- 2
- Restart pressure (bar)
- 1.5
- Employments
- irrigation, pressurization systems, water supply
- Liquid temperature max. (° C)
- 50
- Line power supply
- single phase
- Supply voltage (Volt)
- 230
- Line current
- 16 A
- Motor power supply
- single phase
- Motor voltage
- 230 V
- Motor phase current
- 16 A
- Dry running protection
- no
- Height (cm)
- 17.7
- Attack size
- 1 "
- Weight kg)
- 0.7
- Type of attack
- male
