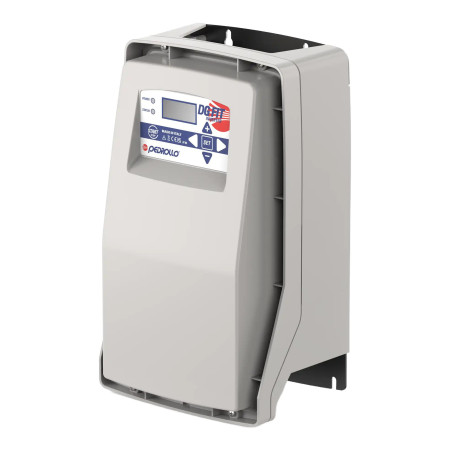

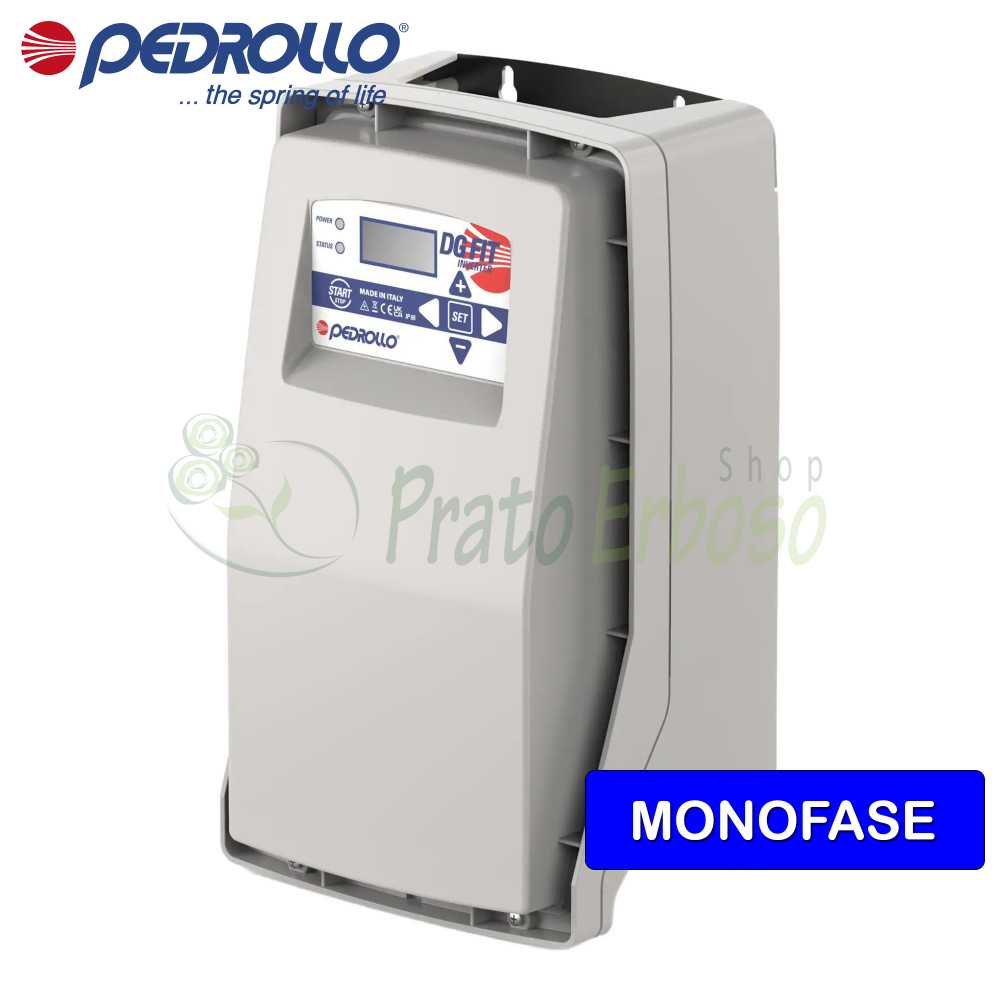

DGFIT MM 8 - 8.5 A single-phase inverter
Telephone support for information before purchasing.
After-sales assistance for product installation.
After-sales assistance in the correct use of the product.
Description
The Pedrollo DGFIT MM 8 inverter is suitable for water supply in residential, commercial and irrigation sectors.
It adapts to any type of pressurization system, even existing ones.
The DGFIT MM 8 is a wall-mounted frequency converter that uses a pressure sensor to vary the motor speed based on the amount of water required.
Protects the system from dry running, overcurrent, overvoltage, undervoltage, overtemperature and short circuit.
This inverter allows you to save energy and water and ensures a quieter system.
The display makes programming the DGFIT MM 8 simple and intuitive.
Data sheet
- Power (HP)
- 1.5
- Degree of protection
- IP 54
- Output Voltage (Volts)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Overtemperature protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 32.9
- Width (cm)
- 19.3
- Depth (cm)
- 14.2
- Weight (Kg)
- 3.5
- Warranty (years)
- 2
- Motor phase frequency (Hz)
- 50, 60
