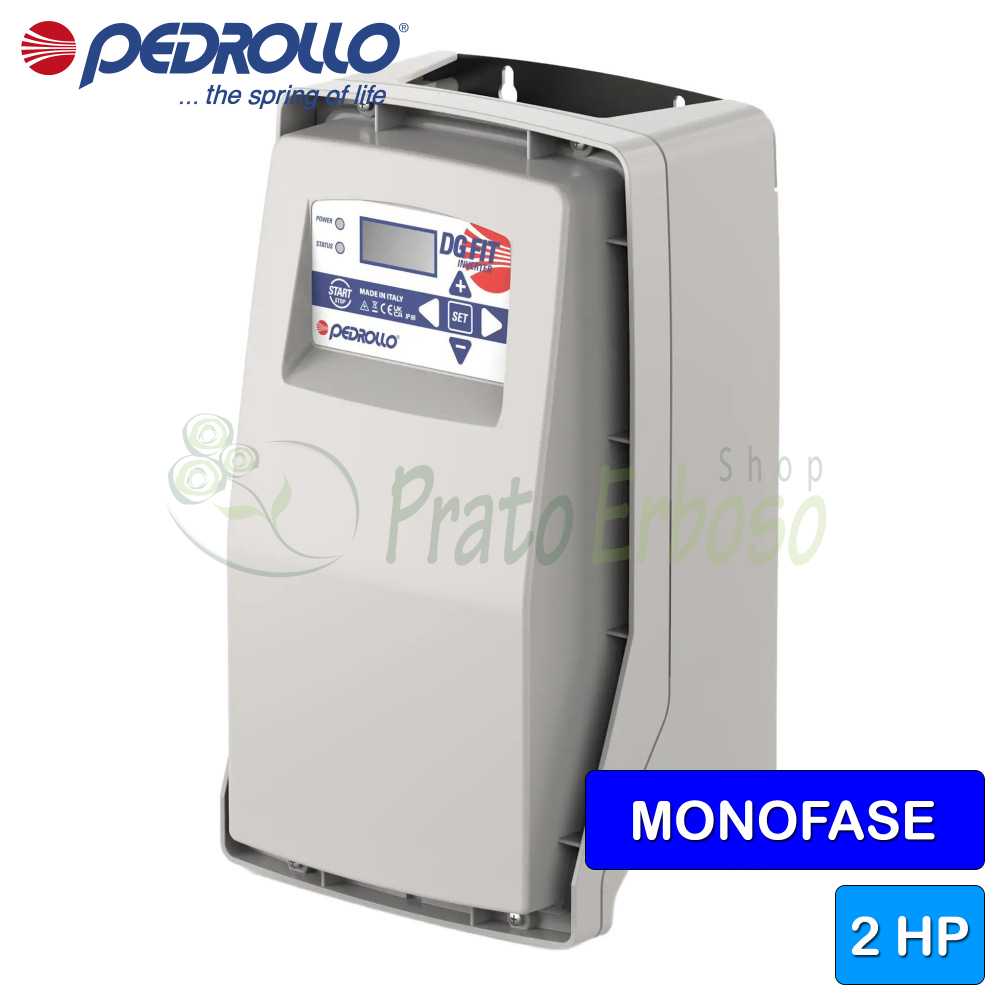

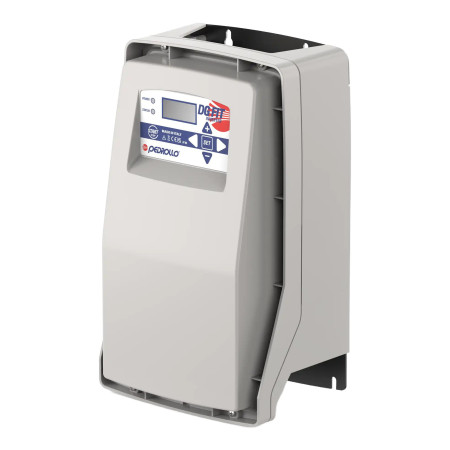

DGFIT MM 11 - 11 A single-phase inverter
For single-phase pumps up to 2 HP. Single-phase/single-phase.
The DGFIT MM 11 inverter is a wall-mounted frequency converter that uses a pressure sensor to vary the motor speed based on the amount of water required.
It is used for water supply in residential, commercial, and irrigation applications. It adapts to any type of pressure booster system, even existing ones.
The DGFIT MM 11 inverter protects the system from dry running, overcurrent, overvoltage, undervoltage, overtemperature and short circuits.
Its operation allows for significant water and energy savings and also makes the system quieter.
Programming the DGFIT MM 11 is simple and intuitive thanks to the convenient display.
- Power (HP)
- 2
- Degree of protection
- IP 54
- Output Voltage (Volts)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Overtemperature protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 32.9
- Width (cm)
- 19.3
- Depth (cm)
- 14.2
- Weight (Kg)
- 3.5
- Warranty (years)
- 2
- Motor phase frequency (Hz)
- 50, 60
-
- -42%
€452.16 tax incl. €779.58
Reviews (1) - Review moderation
Descrizione . Confezione e prodotto super
Already reported
Compare with Similar Products
DGFIT MM 11 - 11 A single-phase inverterThis product For single-phase pumps up to 2 HP. Single-phase/single-phase. |
DGFIT MM 16 - 16 A single-phase inverterFor single-phase pumps up to 3 HP. Single-phase/single-phase. |
|
|---|---|---|
| Price |
Price
€869.86
-42%
€504.52
|
Price
€896.70
-42%
€520.09
|
| Power (HP) | Power (HP) 2 | Power (HP) 3 |
| Degree of protection | Degree of protection IP 54 | Degree of protection IP 54 |
| Output Voltage (Volts) | Output Voltage (Volts) -- | Output Voltage (Volts) -- |
| Line power supply | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply single phase | Engine power supply single phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) -- | Motor Phase Current (Amperes) -- |
| Overcurrent protection | Overcurrent protection Yes | Overcurrent protection Yes |
| Amperometric protection | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection Yes |
| Overtemperature protection | Overtemperature protection Yes | Overtemperature protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection Yes |
| Height (cm) | Height (cm) 32.9 | Height (cm) 32.9 |
| Width (cm) | Width (cm) 19.3 | Width (cm) 19.3 |
| Depth (cm) | Depth (cm) 14.2 | Depth (cm) 14.2 |
| Weight (Kg) | Weight (Kg) 3.5 | Weight (Kg) 3.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
| Motor phase frequency (Hz) | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 |
