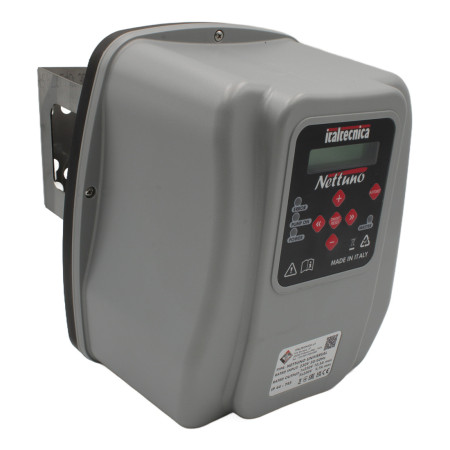

NETTUNO UNIVERSAL - Universal inverter
Inverter for single-phase and three-phase pumps 230 V up to 1.5 HP.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The Nettuno Universal by Italtecnica is an electronic device that controls the start and stop of a traditional electric pump,
surface, vertical and submerged, based on inverter technology.
It allows you to modulate the rotation speed (rpm) according to the water demand from the system, also varying the frequency of the current.
Consequently, it also allows for great energy savings due to the lower absorption of the pump.
The Nettuno Universal has several interesting features such as dry-running protection and automatic reset in case of dry running.
Allows you to connect up to 8 pumps to the pressurization group.
Data sheet
- Degree of protection
- IP 44
- Output Voltage (Volts)
- 1 x 230, 3 x 230
- Line power supply
- single phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 7.5, 8
- Engine power supply
- single phase, three-phase
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 21.9
- Width (cm)
- 21.5
- Depth (cm)
- 26.5
- Weight (Kg)
- 5.9
