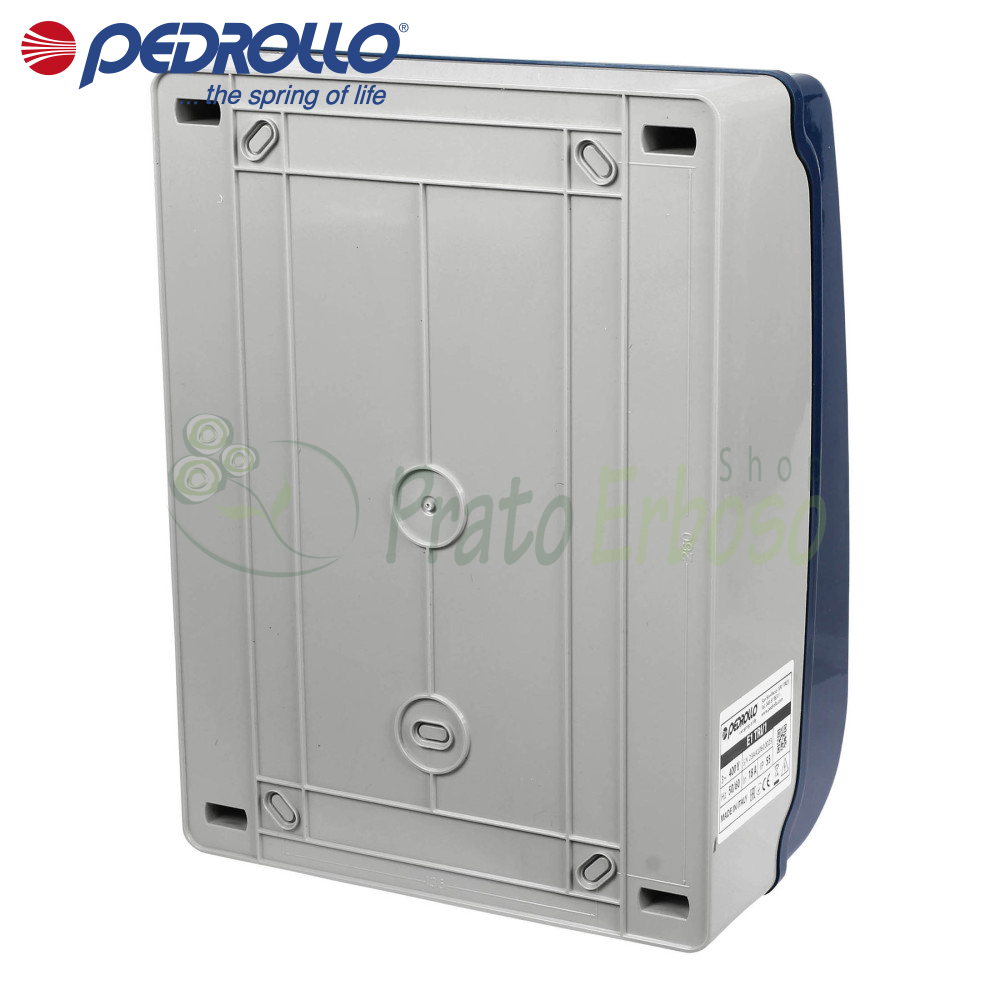

E2 TRI - Electrical panel for 2 three-phase electric pumps 7.5+7.5 HP
For starting two three-phase electric pumps. Power: 5.5+5.5 kW (7.5+7.5 HP). Manual or automatic operation. Pressure switch/float input.
The Pedrollo E2 TRI multifunction electronic panel is designed to adapt to any application, both for clean water and waste water systems.
Thanks to the possibility of selecting six operating types, it allows you to easily manage every system requirement.
The E1 TRI/1 panel offers the possibility of choosing between emptying and pressurization via electrical parameters, emptying and pressurization with level probes, emptying, filling, pressurization and a customizable mode.
The optional Wi-Fi and Bluetooth module makes using the control panel even simpler and more intuitive, allowing you to configure and view the system's status directly on your smartphone.
It can be operated manually or automatically. A pressure switch and float switch can be connected.
- Power (HP)
- 7.5
- Degree of protection
- IP 55
- LCD display
- Yes
- Line power supply
- three-phase
- Supply voltage (Volts)
- 400
- Overcurrent protection
- Yes, thermal relay
Compare with Similar Products
 E2 TRI - Electrical panel for 2 three-phase electric pumps 7.5+7.5 HPThis product For starting two three-phase electric pumps. Power: 5.5+5.5 kW (7.5+7.5 HP). Manual or automatic operation. Pressure switch/float input. |  DUPLEX-UP-T/10 - Electrical panel for 2 three-phase electric pumps 10+10 HP For starting 2 electric pumps. Power: 7.5 Kw (10 HP). Manual, automatic operation. Pressure switch/float input. Overload protection. | |
|---|---|---|
| Price | Price €590.48 -42% €342.48 | Price €452.62 |
| Power (HP) | Power (HP) 7.5 | Power (HP) 10 |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 |
| LCD display | LCD display Yes | LCD display No |
| Line power supply | Line power supply three-phase | Line power supply three-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 400 | Supply voltage (Volts) 400 |
| Overcurrent protection | Overcurrent protection Yes, thermal relay | Overcurrent protection Yes, thermal relay |
