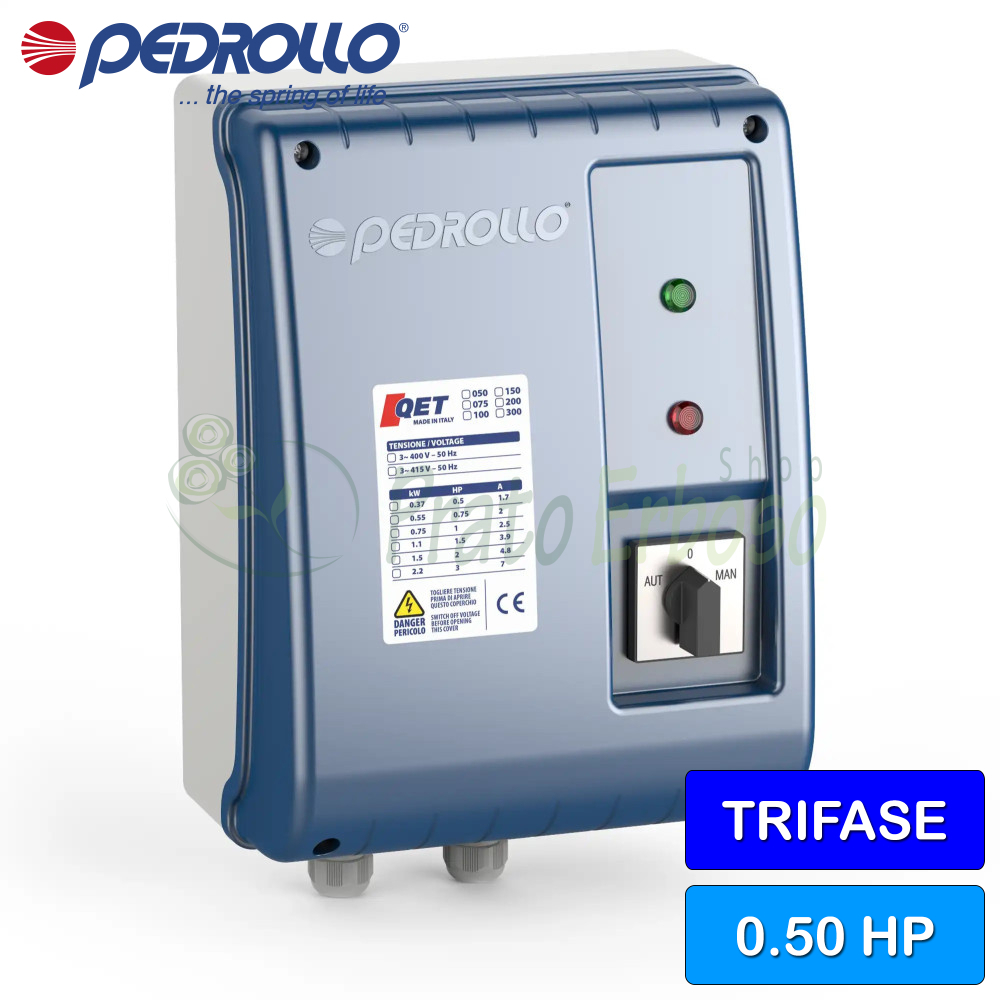

QET 050 - Electrical panel for 0.50 HP three-phase electric pump
For starting one 4" and 6" submersible electric pump. Power: 0.37 kW (0.5 HP). Operation: manual, automatic. Pressure switch/float input: yes. Protection: overload.
The QET 050 electrical panel from Pedrollo 's QET series is compatible with submersible electric pumps with three-phase motors.
It performs the starting and protection function of submersible electric pumps for 3, 4 or 6 inch wells.
It is suitable for any system for groundwater extraction, irrigation and pressure increasing.
Using the QET 050 electrical panel is simple and intuitive.
It can be started manually by simply operating a selector or automatically via a float or pressure switch.
- Power (HP)
- 0.50
- Degree of protection
- IP 55
- LCD display
- No
- Line power supply
- three-phase
- Supply voltage (Volts)
- 400
- Engine power supply
- three-phase
- Motor Phase Current (Amperes)
- 1.7
- Overcurrent protection
- thermal relay
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- No
- Height (cm)
- 31.4
- Width (cm)
- 23.4
- Depth (cm)
- 16.9
- Weight (Kg)
- 4
- Warranty (years)
- 2
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
