SAR 100-Dm 10 - 1 HP rainwater lifting station
100 litre tank. Pedrollo Dm 10-N pump. Discharge flow rate up to 300 l/min (18 m³/h). Head up to 15.5 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

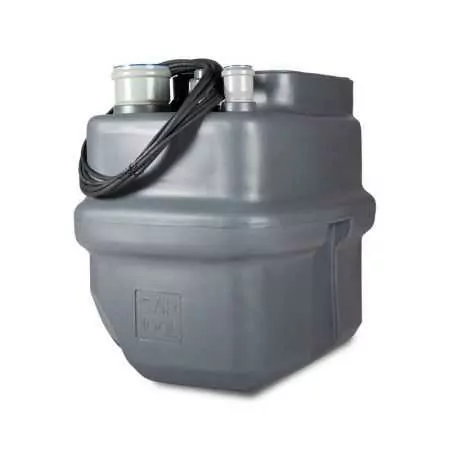

The SAR 100-Dm 10 is a rainwater storage and lifting station. It consists of a Pedrollo Dm 10 lifting pump and a 100-liter tank.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.7
- Delivery mouth
- 1 "1/2
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- Yes
- Degree of protection
- IP 68
- Max. flow rate (l./min.)
- 300
- Max. head (m.)
- 15.5
- Tank capacity (litres)
- 100
- Jobs
- slightly dirty waters
- Height (cm)
- 64.5
- Width (cm)
- 50
- Weight (Kg)
- 36.6
- Warranty (years)
- 2
Models and performance SAR 100 clear water
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 SAR 100-Dm 10 - 1 HP rainwater lifting stationThis product 100 litre tank. Pedrollo Dm 10-N pump. Discharge flow rate up to 300 l/min (18 m³/h). Head up to 15.5 m. 0.75 Kw (1 HP) motor. | |
|---|---|
| Motor connection | Motor connection SINGLE PHASE |
| Power (HP) | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 4.7 |
| Delivery mouth | Delivery mouth 1 "1/2 |
| Pump body | Pump body Cast iron |
| Impeller | Impeller Technopolymer |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve Yes |
| Degree of protection | Degree of protection IP 68 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 300 |
| Max. head (m.) | Max. head (m.) 15.5 |
| Tank capacity (litres) | Tank capacity (litres) 100 |
| Jobs | Jobs slightly dirty waters |
| Height (cm) | Height (cm) 64.5 |
| Width (cm) | Width (cm) 50 |
| Weight (Kg) | Weight (Kg) 36.6 |
| Warranty (years) | Warranty (years) 2 |
