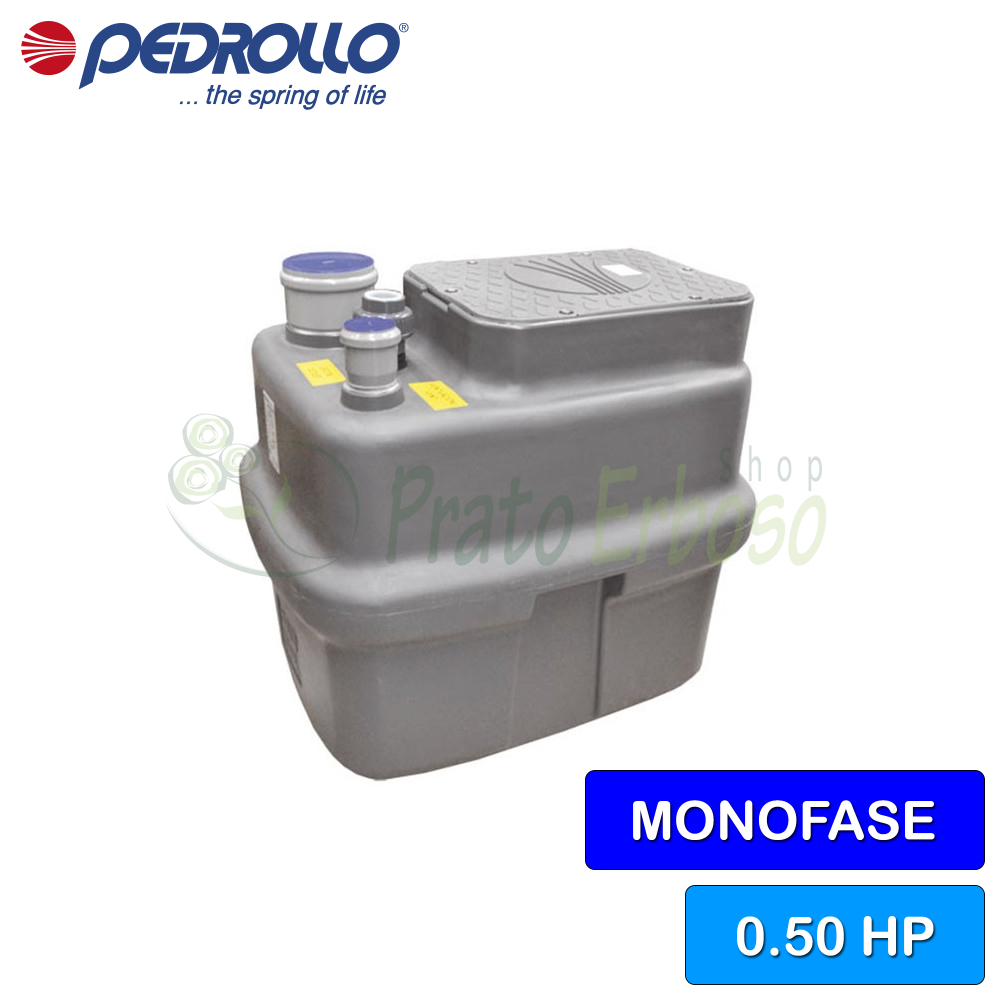

SAR 100-TOP 2 - 0.50 HP rainwater lifting station
100-liter tank. Pedrollo TOP 2 pump. Discharge flow rate up to 220 l/min (13.2 m³/h). Head up to 8 m. 0.37 kW (0.50 HP) motor.
The SAR 100-TOP 2 lifting station from the SAR 100 series by Pedrollo is suitable for the drainage of clear waste water.
Recommended for collecting and lifting water from domestic drains such as washing machines, dishwashers, sinks and toilets.
Suitable where the sewer system is excessively distant or not reachable by gravity.
Its compact size makes it perfect for floor or underground installations in the home environment.

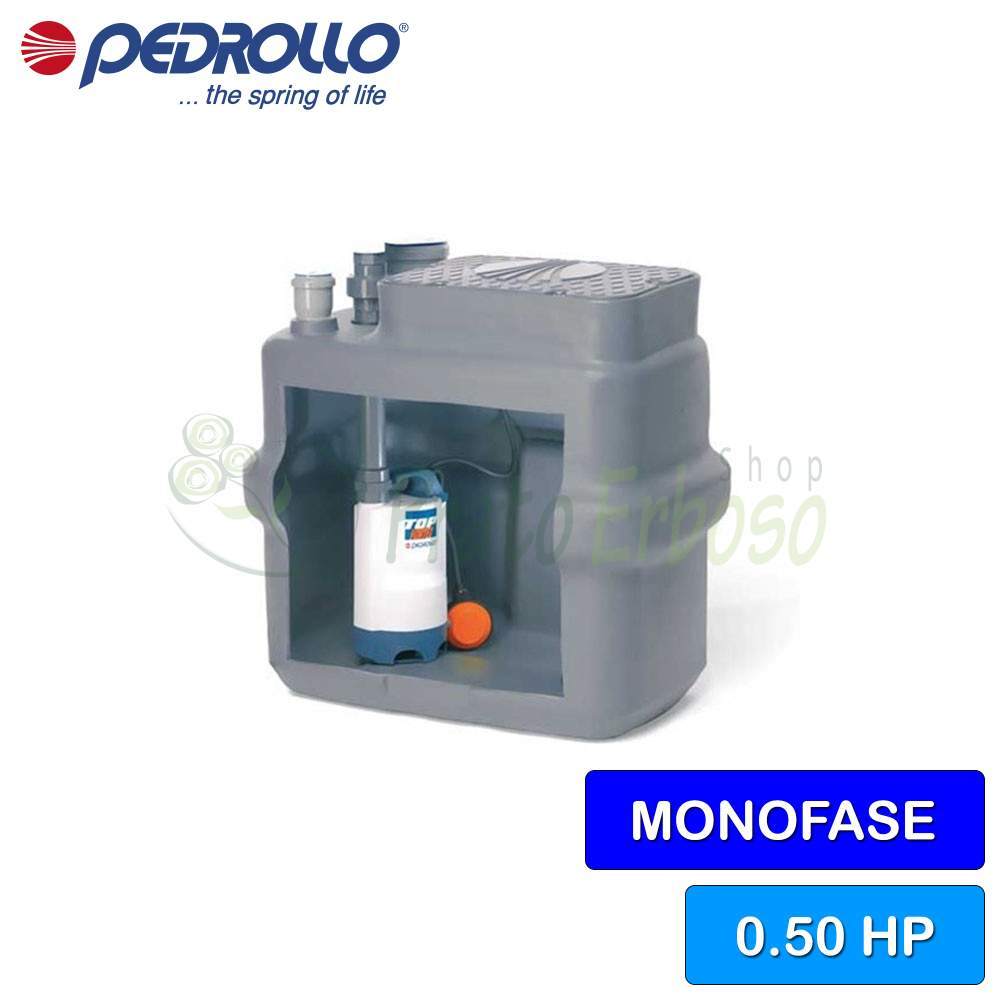

The SAR 100-TOP 2 lifting station includes a TOP 2 single-phase electric pump, a 100-litre polyethylene tank and a 10-metre cable.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2
- Delivery mouth
- 1" 1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- Yes
- Degree of protection
- IP 68
- Max. flow rate (l./min.)
- 220
- Max. head (m.)
- 8
- Tank capacity (liters)
- 100

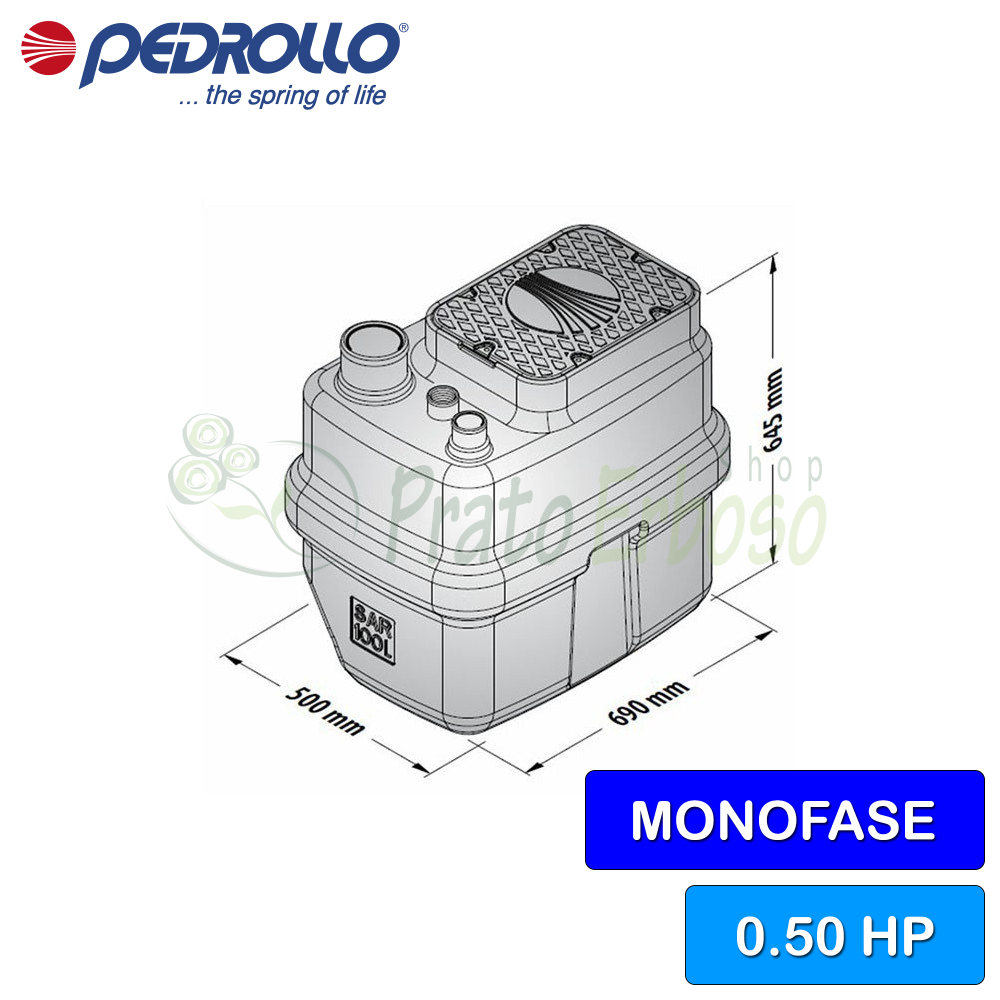

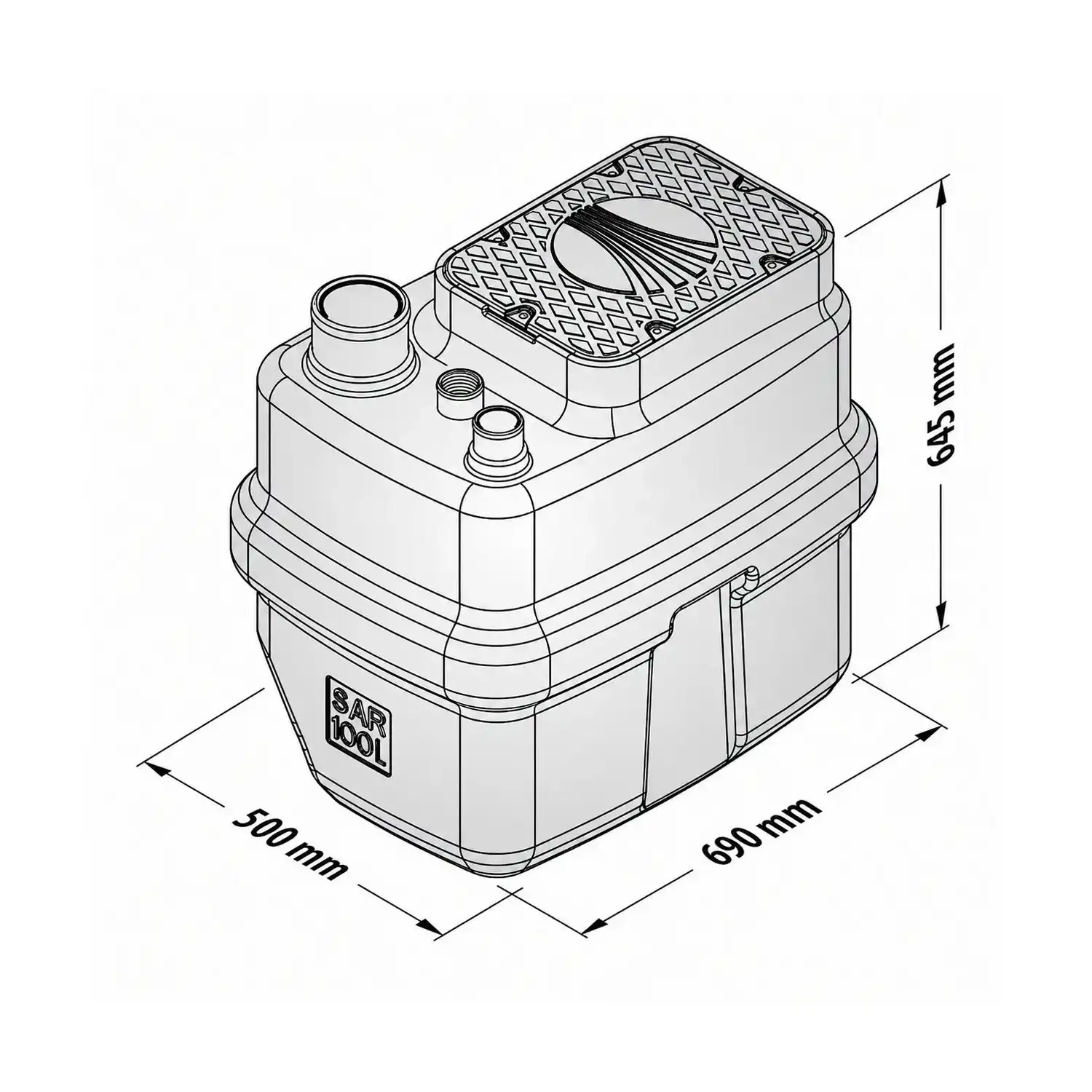

- Height (cm)
- 64.5
- Width (cm)
- 50
- Weight (Kg)
- 28.7
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
