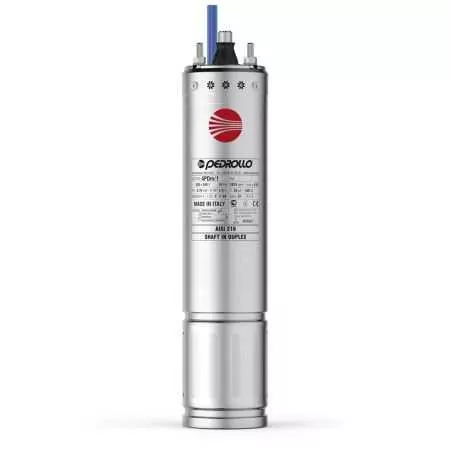

4PD/2 - 4" 2 HP three-phase 400 V rewindable motor
Power: 1.5 Kw (2 HP). Voltage: 230V/50Hz to 400V/50Hz. Current: 4.3 to 7.1 A. Revolutions: 2825/min.
Original spare part for 4SR10/9-N, 4SR12/9-N, 4SR15/8-N, 4HR10/10, 4HR14/8, 4HR18/6.


The PEDROLLO PD electric motor for the 4SR Submersible Pump models is the driving force behind the entire pump body.
Specially sized for the pump it will tow, it guarantees the best performance.
It is a food-grade rewindable submersible motor in oil bath, complete with 1.5m power cable.
Insulation class F and IP68 protection appropriate for use.
Original spare part for 4SR10/9-N, 4SR12/9-N, 4SR15/8-N, 4HR10/10, 4HR14/8, 4HR18/6.
- Motor connection
- THREE-PHASE
- Power (HP)
- 2
- Absorption at 400V (A)
- 4.8
- Crankshaft
- Duplex stainless steel
- Degree of protection
- IP 68
- Cable length (m)
- 2
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 39.6
- External diameter (cm)
- 6.6
- Weight (Kg)
- 10.6
- Warranty (years)
- 2
