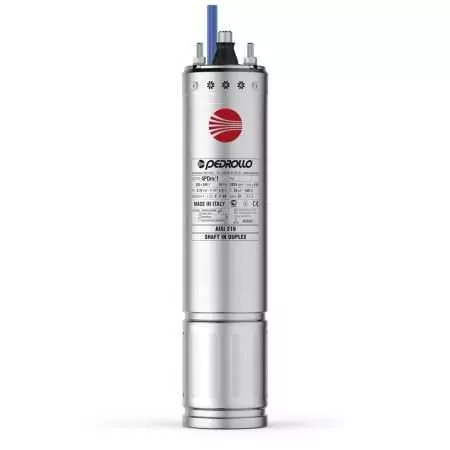

Name: 4PD/7.5 - 4" 7.5 HP three-phase rewindable motor
Brand: Pedrollo
SKU: 4PD/7.5
Price: 498.86 EUR
Availability: InStock

Description

The PEDROLLO PD electric motor for the 4SR Submersible Pump models is the driving force behind the entire pump body.

Specially sized for the pump it will tow, it guarantees the best performance.

It is a food-grade rewindable submersible motor in oil bath, complete with 2.5m power cable.

Insulation class F and IP68 protection appropriate for use.

Original spare part for 4SR10/32-N, 4SR12/32-N, 4SR15/29-N, 4HR14/29, 4HR18/22.

Data sheet

Motor connection: THREE-PHASE
Power (HP): 7.5
Absorption at 230V (A): 21.3
Absorption at 400V (A): 12.3
Crankshaft: Duplex stainless steel
Degree of protection: IP 68
Cable length (m): 3.6
Jobs: water supply, pressurization systems, irrigation, fire prevention systems
Max. liquid temperature (°C): +35°C
Height (cm): 59
External diameter (cm): 9.2
Weight (Kg): 20.1
Warranty (years): 2

Attachments

Templates, yield curves and constructional characteristics of 4PD PEDROLLO pumps.

	4PD/7.5 - 4" 7.5 HP three-phase rewindable motor This product Power: 5.5 Kw (7.5 HP). Voltage: 230V/50Hz to 400V/50Hz. Current: 10.6 to 22.8 A. Revolutions: 2845/min. Original spare part for 4SR10/32-N, 4SR12/32-N, 4SR15/29-N, 4HR14/29, 4HR18/22.
Motor connection	Motor connection THREE-PHASE
Power (HP)	Power (HP) 7.5
Absorption at 230V (A)	Absorption at 230V (A) 21.3
Absorption at 400V (A)	Absorption at 400V (A) 12.3
Crankshaft	Crankshaft Duplex stainless steel
Degree of protection	Degree of protection IP 68
Cable length (m)	Cable length (m) 3.6
Jobs	Jobs water supply, pressurization systems, irrigation, fire prevention systems
Max. liquid temperature (°C)	Max. liquid temperature (°C) +35°C
Height (cm)	Height (cm) 59
External diameter (cm)	External diameter (cm) 9.2
Weight (Kg)	Weight (Kg) 20.1
Warranty (years)	Warranty (years) 2
