RXm 3/20 (10m) - Single-phase VORTEX electric pump for dirty water, 0.75 HP
Flow rate up to 240 l/min (10.8 m³/h). Head up to 10 m. 0.37 Kw (0.5 HP) motor.
WITH FLOAT
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October

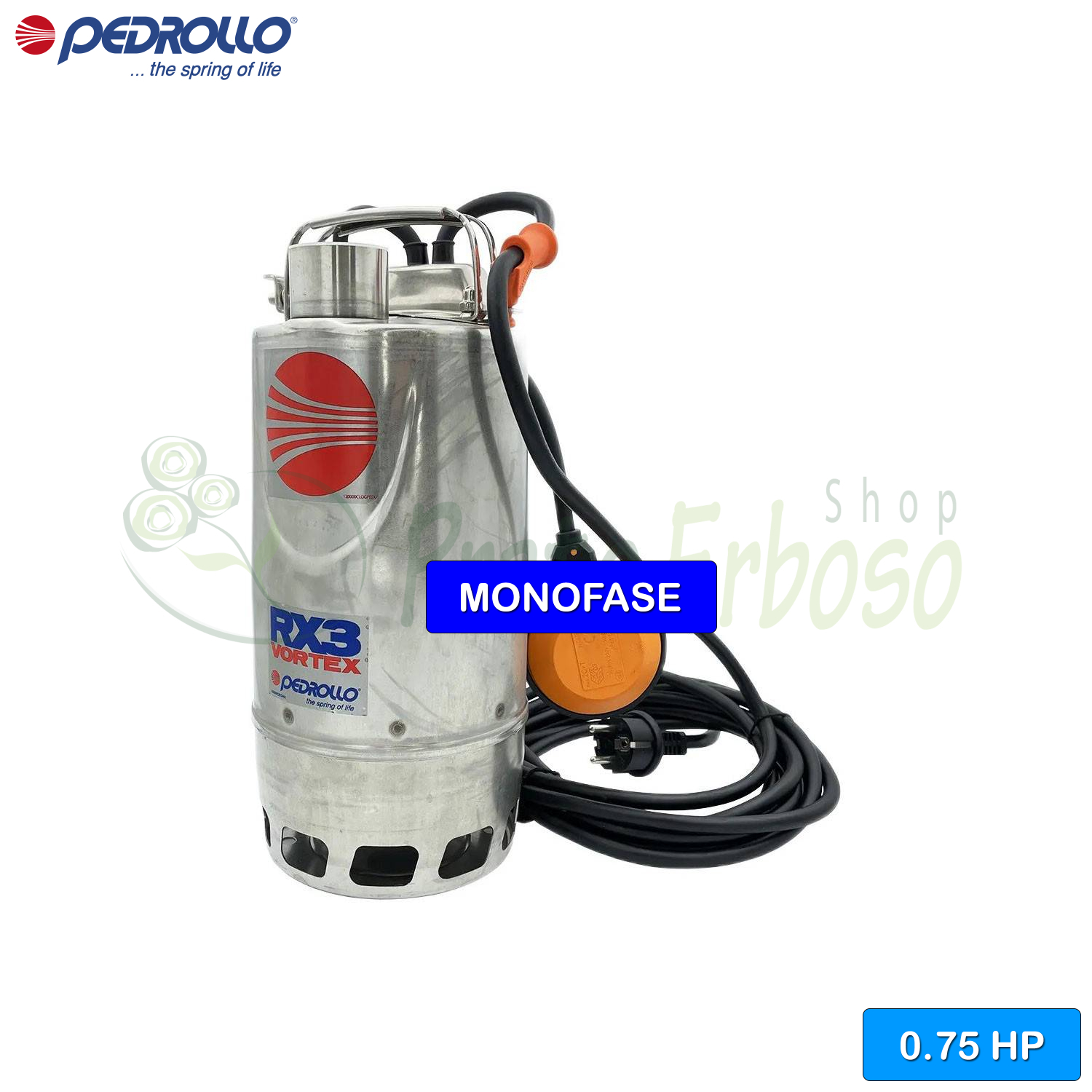

The RXm 3/20 submersible electric pump from the RX-VORTEX series by Pedrollo is made entirely of stainless steel.
Recommended for installations in the domestic and civil sector due to its reliability.
Suitable for draining waste water containing suspended solids up to 20 millimetres in diameter.
The construction solutions used by Pedrollo for the RXm 3/20 guarantee operational safety, even in case of continuous use, thanks to the total cooling of the engine.
It can be installed up to 10 meters below water level with an appropriate length of cable.
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.2
- Capacitor
- 14 µF 450 VL
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 2
- Max. head (m.)
- 10
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/4
- Height (cm)
- 33
- Width (cm)
- 14.7
- Weight (Kg)
- 7.3
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.2
- Capacitor
- 14 µF 450 VL
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 2
- Max. head (m.)
- 10
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/4
Dimensions and weight
- Height (cm)
- 33
- Width (cm)
- 14.7
- Weight (Kg)
- 7.3
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SIC |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
