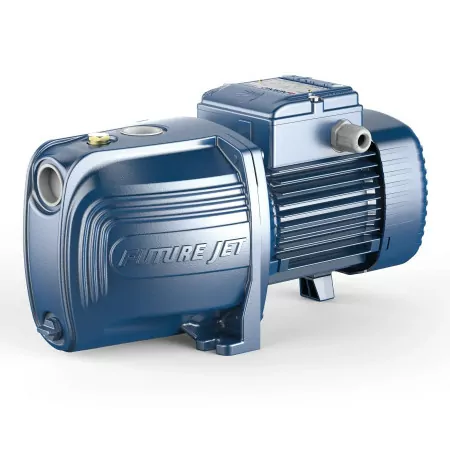

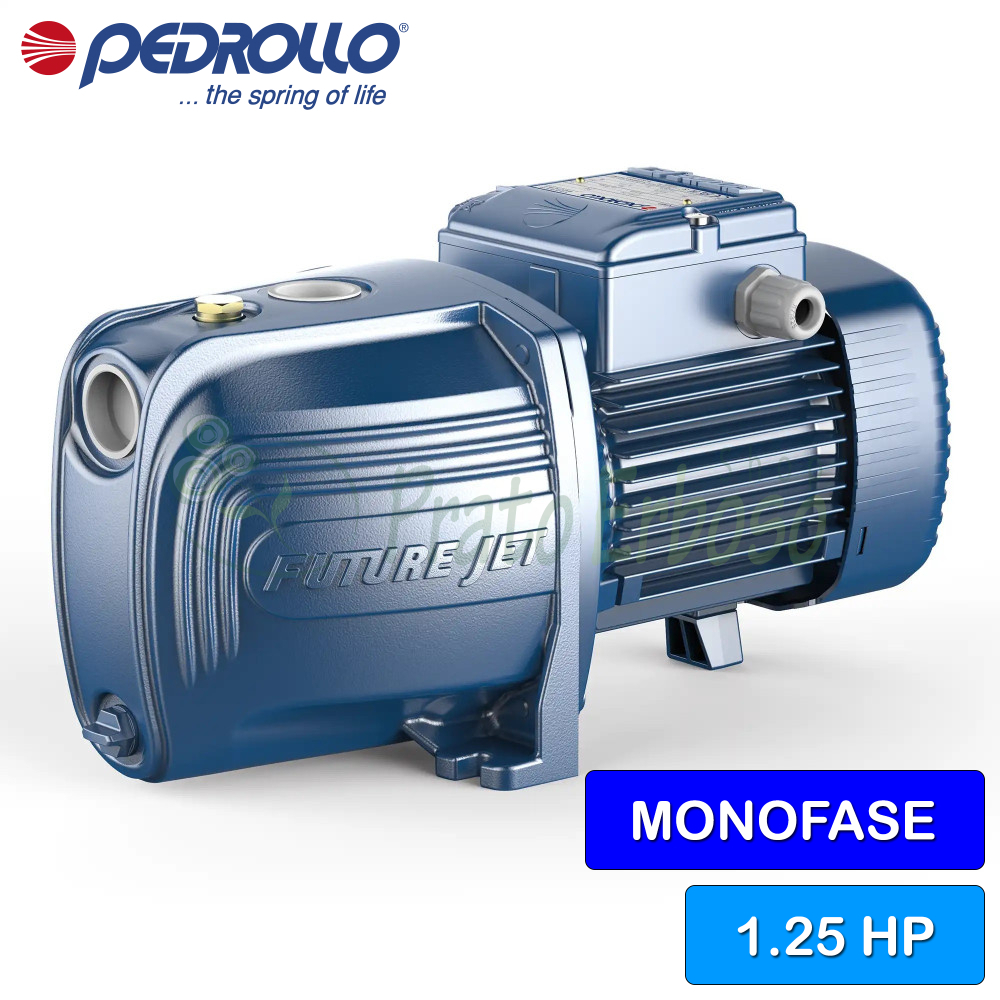

FUTURE JETm 2AH - 1.25 HP single-phase self-priming electric pump
Flow rate up to 95 l/min (5.7 m³/h). Head up to 72 m. Motor 0.90 Kw (1.25 HP).
The FUTURE JETm 2AH self-priming electric pump by Pedrollo is designed to suck water even in the presence of air mixed with the pumped liquid.
Characterized by its great hydraulic efficiency, this pump allows you to obtain the same pressure as a classic JET but doubling its flow rate, obtaining a reduction in energy consumption of up to 50%.
The FUTURE JETm 2AH also stands out for its great silence, which combined with great reliability and ease of use is recommended for pumping clean water in the domestic field, especially for the distribution of water in combination with small or medium-sized pressure tanks, for irrigation of vegetable gardens and gardens, etc.
The flow rate ranges from 5 to 95 liters per minute. The head ranges from 15 to 72 meters.
The FUTURE JETm 2AH must be powered by a single-phase voltage, has a horsepower of 1.25 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
The pump has a solid construction, it is made of materials such as cast iron, stainless steel and noryl which make it robust and resistant.
Installation must be carried out in well-ventilated closed places or in any case protected from the elements.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.90
- Power (HP)
- 1.25
- Absorption at 230V (A)
- 6.6
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 95
- Min. head (m.)
- 15
- Max. head (m.)
- 72
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 20.1
- Width (cm)
- 18.0
- Depth (cm)
- 39.1
- Weight (Kg)
- 15.5
- Warranty (years)
- 2
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203ZZ |
| Opposite side engine bearing | 6203ZZ |
Shaft seal
| Seal type | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| LP fixed ring | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | GJL 200 EN 1561 cast iron |
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor carrier | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
